  • Locksets
  • Schlage ND12DEU RHO 626 Grade 1 Electrified Cylindrical Lock Exit Function 12-24V DC Fail Secure 2-3/4 Backset Rhodes Lever No Cylinder Override Satin Chrome

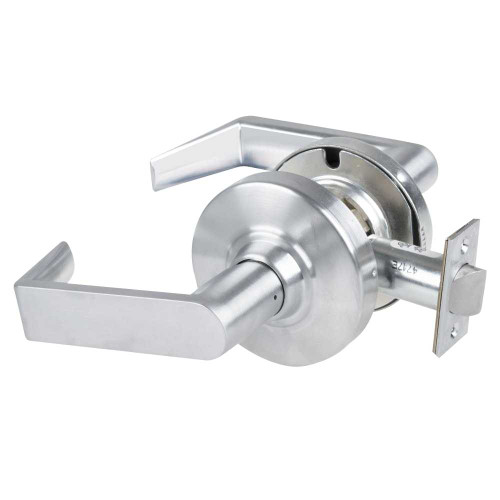

Schlage ND12DEU RHO 626 Grade 1 Electrified Cylindrical Lock Exit Function 12-24V DC Fail Secure 2-3/4 Backset Rhodes Lever No Cylinder Override Satin Chrome

Schlage

Write a Review
SKU:
ND12DEU RHO 626
$669.44
Schlage ND12DEU RHO 626 Grade 1 Electrified Cylindrical Lock Exit Function 12-24V DC Fail Secure 2-3/4 Backset Rhodes Lever No Cylinder Override Satin Chrome
$669.44

Descriptions

ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf

Specifications

Brand:
Schlage
Finish:
626/US26D
Country Of Origin:
Mexico
Specifications Bullet 2:
Rhodes Lever
Latch Description:
Dead Latch
Product Warranty:
1 Year Warranty
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
FS/FSE Mode:
Fail Secure
Specifications Bullet 3:
2-3/4" Backset
Rose/Escutcheon:
Rose
Finish Description:
Satin Chrome
Specifications Bullet 1:
Grade 1 Electrified Electronically Unlocked Exit Function Cylindrical Lockset
Box Weight (lbs):
5 lbs
Specifications Bullet 10:
For Doors 1-5/8" - 2-1/8" Thick
Projection (in):
2-15/16"
Backset (in):
2-3/4"
Commercial Residential:
Commercial
Selling Quantity:
1
Specifications Bullet 7:
3-7/16" Rose Dimension
Specifications Bullet 12:
Includes Wood/Metal Screws
Includes Cylinder(s)?:
No
Minimum Door Thickness (in):
1-5/8"
Bore Hole Diameter (in):
2-1/8"
Door Handing:
Non-handed
Specifications Bullet 11:
2-1/8" Bore Hole Diameter
Specifications Bullet 8:
1/2" Latch Throw
Lever/Knob/Pull Design:
Rhodes
Specifications Bullet 4:
1-1/4" x 4-7/8" ASA Strike
Latch Dimensions:
1-1/8" x 2-1/4"
Latch Bore Diameter (in):
1"
Latch Number:
13-247
Specifications Bullet 6:
2-15/16" Projection
Keyway:
Not Applicable
Specifications Bullet 5:
12/24 VDC Voltage Fail Secure
Box Width (in):
8-1/4"
Cylinder Type:
Keyless
Function:
Electronically Unlocked Exit
Fire Rated:
Yes
Lever/Knob/Pull:
Lever
Can Be Keyed:
Yes
Specifications Bullet 13:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Box Height (in):
4-3/4"
Grade:
Grade 1
Base Material:
Brass or Bronze
Box Depth (in):
9-1/2"
Strike Description:
ASA Strike
Specifications Bullet 14:
1 Year Warranty
Electronic:
Yes
Voltage:
12/24 VDC Voltage
Screw Pack:
Wood/Metal Screws
Strike Dimensions:
1-1/4" x 4-7/8"
Latch Throw (in):
1/2"
UOM:
1
Rose/Escutcheon Dimensions (in):
3-7/16"
Door Range (Thickness):
1-5/8" - 2-1/8"
Maximum Door Thickness (in):
2-1/8"
Specifications Bullet 9:
1-1/8" x 2-1/4" Dead Latch
Manufacturer:
Schlage
Strike Number:
10-025
Series:
ND Series
Parent Manufacturer:
Allegion
ADA:
Yes

Warranty Information

1 Year Warranty
