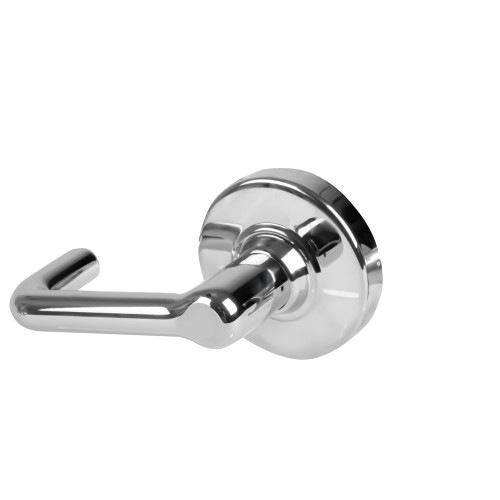

Schlage ND170 TLR 625 Grade 1 Single Dummy Trim Tubular Lever Non-Keyed Bright Chrome Finish Non-Handed

Schlage

Write a Review
SKU:
ND170 TLR 625
$119.73
$119.73

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
ADA:
Yes
Interior/Exterior:
Interior/Exterior
Latch Description:
Not Applicable
Bore Hole Diameter (in):
Not Applicable
Latch Dimensions:
Not Applicable
Electronic:
No
Finish:
625/US26
Cylinder Type:
Keyless
Specifications Bullet 2:
Tubular Lever
Manufacturer:
Schlage
Box Depth (in):
9-1/2"
Specifications Bullet 5:
For Doors 1-5/8" - 2-1/8" Thick
Grade:
Grade 1
Box Height (in):
4-3/4"
Door Range (Thickness):
1-5/8" - 2-1/8"
Finish Description:
Bright Chrome
Lever/Knob/Pull:
Lever
Lever/Knob/Pull Design:
Tubular
Base Material:
Brass Bronze
Commercial Residential:
Commercial
Specifications Bullet 3:
3" Projection
Latch Throw (in):
Not Applicable
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Country Of Origin:
Mexico
Box Width (in):
8-1/4"
Can Be Keyed:
No
Number of Pins:
6
Specifications Bullet 7:
10 Year Warranty
Latch Bore Diameter (in):
Not Applicable
Fire Rated:
3 Hours {A}
Product Warranty:
10 Year Warranty
Maximum Door Thickness (in):
2-1/8"
Minimum Door Thickness (in):
1-5/8"
Specifications Bullet 6:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Rose/Escutcheon:
Rose
Backset (in):
Not Applicable
Strike Number:
Not Applicable
Number of Keys:
2
Rose/Escutcheon Dimensions (in):
3-7/16"
Strike Description:
Not Applicable
Strike Dimensions:
Not Applicable
UOM:
1
Series:
ND Series Lever Locks
Door Handing:
Non-handed
Parent Manufacturer:
Allegion
Specifications Bullet 4:
3-7/16" Rose
Projection (in):
3"
Keyway:
Not Applicable
Box Weight (lbs):
5 lbs
Specifications Bullet 1:
Grade 1 Dummy Function Cylindrical Lockset
Rose/Escutcheon Design:
Not Applicable
Function:
Dummy
Includes Cylinder(s)?:
No
Selling Quantity:
1
Latch Number:
Not Applicable
Uid:
SCH100ND170TLR625
Url Title:
nd170-tlr-625
Title:
ND170 TLR 625 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-28T07:26:21+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
174
Avg Lead Time:
19
Finish Family:
Polished Silver
Popularity:
9
Pack Weight:
5
Pack Length:
9.5
Pack Width:
8.25
Pack Height:
4.75
Pack Volume:
372.28125
Ul Listing:
UL/cUL Listed
Ansi Code:
ANSI A156.2 Series 4000, Grade 1
Baa Qualified:
Yes
Limited Warranty:
10 Years
Accessible:
Yes
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
Allegion

Warranty Information

10 Year Warranty
