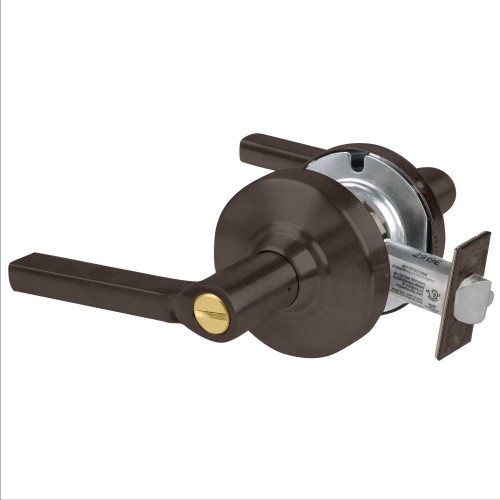

Schlage ND40S SPA 613 Grade 1 Bath/Bedroom Privacy Lock Sparta Lever Non-Keyed Oil Rubbed Bronze Finish Non-Handed

Schlage

Write a Review
SKU:
ND40S SPA 613
$496.79
UPC:
840067603093
$496.79

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Latch Description:
Spring Latch
Interior/Exterior:
Interior/Exterior
Box Width (in):
8-1/4"
Specifications Bullet 2:
Sparta Lever
Box Weight (lbs):
5 lbs
Bore Hole Diameter (in):
2-1/8"
Commercial Residential:
Commercial
Latch Number:
13-248
Latch Throw (in):
1/2"
Can Be Keyed:
No
Keyway:
Not Applicable
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Fire Rated:
3 Hours {A}
Box Depth (in):
9-1/2"
Door Handing:
Non-handed
Specifications Bullet 4:
1-1/8" X 2-1/4" Spring Latch
Specifications Bullet 3:
2-3/4" Backset
Latch Dimensions:
1-1/8" X 2-1/4"
Finish:
613/US10B
Lever/Knob/Pull:
Lever
Function:
Privacy
Base Material:
Bronze
Backset (in):
2-3/4"
Door Range (Thickness):
1-5/8" - 2-1/8"
Specifications Bullet 11:
10 Year Warranty
Specifications Bullet 10:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 6:
3-1/2" Projection
Specifications Bullet 7:
3-7/16" Rose
Specifications Bullet 8:
For Doors 1-5/8" - 2-1/8" Thick
Finish Description:
Oil Rubbed Bronze
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Lever/Knob/Pull Design:
Sparta
Minimum Door Thickness (in):
1-5/8"
Includes Cylinder(s)?:
No
Specifications Bullet 1:
Grade 1 Privacy Function Cylindrical Lockset
Manufacturer:
Schlage
Specifications Bullet 9:
2-1/8" Bore Hole Diameter
Number of Keys:
2
Rose/Escutcheon:
Rose
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon Design:
Not Applicable
Projection (in):
3-1/2"
Number of Pins:
6
Grade:
Grade 1
Maximum Door Thickness (in):
2-1/8"
UOM:
1
Product Warranty:
10 Year Warranty
Rose/Escutcheon Dimensions (in):
3-7/16"
Strike Number:
10-025
UPC:
840067603093
ADA:
Yes
Selling Quantity:
1
Series:
ND Series
Electronic:
No
Parent Manufacturer:
Allegion
Country of Origin:
Mexico
Cylinder Type:
Keyless
Box Height (in):
4-3/4"

Warranty Information

10 Year Warranty
