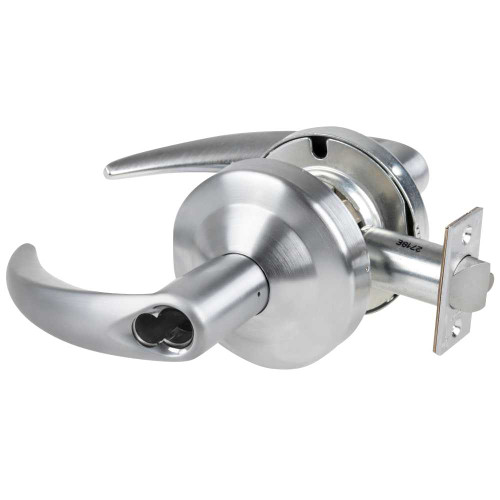

Schlage ND50BD ATH 626 Grade 1 Entrance/Office Lock Athens Lever SFIC Prep Less Core Satin Chrome Finish Non-Handed

Schlage

Write a Review
SKU:
ND50BD ATH 626
$525.89
UPC:
810007502960
$525.89

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
ADA:
Yes
Grade:
Grade 1
Latch Throw (in):
1/2"
Backset (in):
2-3/4"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Door Range (Thickness):
1-5/8" - 2-1/8"
Specifications Bullet 7:
3-5/16" Projection
Keyway:
Less Core
Country Of Origin:
Mexico
Cylinder Type:
SFIC Housing
Lever/Knob/Pull:
Lever
Base Material:
Brass Bronze
Box Weight (lbs):
5 lbs
Function:
Office
Can Be Keyed:
Yes
Maximum Door Thickness (in):
2-1/8"
Fire Rated:
3 Hours {A}
Commercial Residential:
Commercial
Latch Dimensions:
1-1/8" X 2-1/4"
Bore Hole Diameter (in):
2-1/8"
Lever/Knob/Pull Design:
Athens
Specifications Bullet 9:
For Doors 1-5/8" - 2-1/8" Thick
Door Handing:
Non-handed
Parent Manufacturer:
Allegion
Includes Cylinder(s)?:
No
Specifications Bullet 4:
2-3/4" Backset
Rose/Escutcheon:
Rose
Electronic:
No
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Projection (in):
3-5/16"
Specifications Bullet 1:
Grade 1 Office Function Cylindrical Lockset
Specifications Bullet 8:
3-7/16" Rose
Finish:
626/US26D
Minimum Door Thickness (in):
1-5/8"
Latch Number:
13-247
Specifications Bullet 2:
Athens Lever
Finish Description:
Satin Chrome
Specifications Bullet 3:
SFIC Housing Less Core
Product Warranty:
10 Year Warranty
Specifications Bullet 5:
1-1/8" X 2-1/4" Dead Latch
Strike Description:
ASA Strike
Latch Description:
Dead Latch
Rose/Escutcheon Design:
Not Applicable
UOM:
1
Specifications Bullet 12:
10 Year Warranty
Box Width (in):
8-1/4"
Strike Number:
10-025
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Box Height (in):
4-3/4"
Box Depth (in):
9-1/2"
Series:
ND Series
Manufacturer:
Schlage
Rose/Escutcheon Dimensions (in):
3-7/16"
Strike Dimensions:
1-1/4" x 4-7/8"
UPC:
810007502960

Warranty Information

10 Year Warranty
