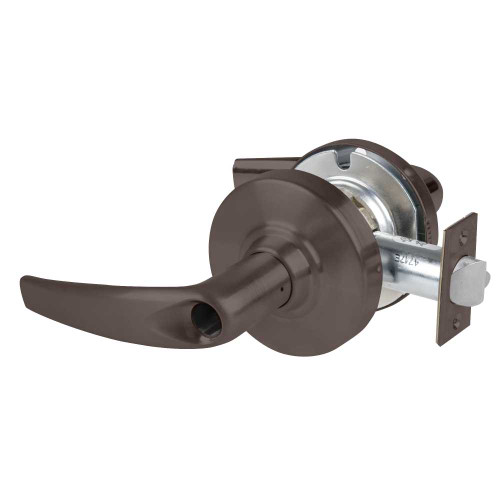

Schlage ND53LD ATH 613 Grade 1 Entrance Lock Athens Lever Less Cylinder Oil Rubbed Bronze Finish Non-Handed

Schlage

Write a Review
SKU:
ND53LD ATH 613
$524.57
UPC:
810007503103
$524.57

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Fire Rated:
3 Hours {A}
Cylinder Type:
Conventional
Box Depth (in):
9-1/2"
Specifications Bullet 1:
Grade 1 Entrance Function Cylindrical Lockset
Latch Number:
13-247
Keyway:
Less Core
ADA:
Yes
Commercial Residential:
Commercial
Specifications Bullet 2:
Athens Lever
Lever/Knob/Pull:
Lever
Backset (in):
2-3/4"
Bore Hole Diameter (in):
2-1/8"
Parent Manufacturer:
Allegion
Base Material:
Bronze
Includes Cylinder(s)?:
No
Specifications Bullet 3:
Conventional Less Core
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Door Range (Thickness):
1-5/8" - 2-1/8"
Specifications Bullet 4:
2-3/4" Backset
Can Be Keyed:
Yes
Box Width (in):
8-1/4"
Box Height (in):
4-3/4"
Electronic:
No
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Country Of Origin:
Mexico
Finish Description:
Oil Rubbed Bronze
Maximum Door Thickness (in):
2-1/8"
Finish:
613/US10B
Box Weight (lbs):
5 lbs
Specifications Bullet 9:
For Doors 1-5/8" - 2-1/8" Thick
Specifications Bullet 7:
3-5/16" Projection
Latch Dimensions:
1-1/8" X 2-1/4"
Latch Throw (in):
1/2"
Specifications Bullet 8:
3-7/16" Rose
Manufacturer:
Schlage
Specifications Bullet 12:
10 Year Warranty
Grade:
Grade 1
Latch Description:
Dead Latch
Function:
Entrance
Lever/Knob/Pull Design:
Athens
Series:
ND Series Lever Locks
Door Handing:
Non-handed
UOM:
1
Rose/Escutcheon Dimensions (in):
3-7/16"
Specifications Bullet 5:
1-1/8" X 2-1/4" Dead Latch
Projection (in):
3-5/16"
Rose/Escutcheon:
Rose
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Strike Number:
10-025
Strike Dimensions:
1-1/4" x 4-7/8"
UPC:
810007503103
Rose/Escutcheon Design:
Not Applicable
Product Warranty:
10 Year Warranty
Strike Description:
ASA Strike
Minimum Door Thickness (in):
1-5/8"
Uid:
SCH100ND53LDATH613
Url Title:
nd53ld-ath-613
Title:
ND53LD ATH 613 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-28T06:51:58+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
763
Avg Lead Time:
36
Finish Family:
Dark Bronze
Popularity:
9
Pack Weight:
5
Pack Length:
9.5
Pack Width:
8.25
Pack Height:
4.75
Pack Volume:
372.28125
Ul Listing:
UL/cUL Listed
Ansi Code:
ANSI A156.2 Series 4000, Grade 1
Baa Qualified:
Yes
Limited Warranty:
10 Years
Accessible:
Yes
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
Allegion

Warranty Information

10 Year Warranty
