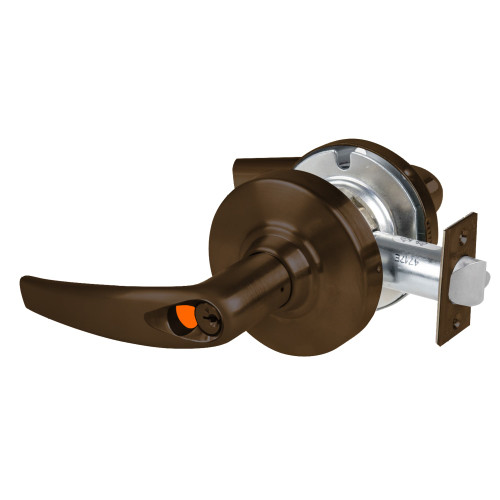

Schlage ND70BD ATH 613 Grade 1 Classroom Lock Athens Lever SFIC Prep Less Core Oil Rubbed Bronze Finish Non-Handed

Schlage

Write a Review
SKU:
ND70BD ATH 613
$545.74
UPC:
840067615348
$545.74

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Box Height (in):
4-3/4"
Box Width (in):
8-1/4"
Commercial Residential:
Commercial
Door Handing:
Non-handed
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Bore Hole Diameter (in):
2-1/8"
Lever/Knob/Pull Design:
Athens
Backset (in):
2-3/4"
Finish Description:
Oil Rubbed Bronze
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 9:
For Doors 1-5/8" - 2-1/8" Thick
Finish:
613/US10B
Specifications Bullet 1:
Grade 1 Classroom Function Cylindrical Lockset
ADA:
Yes
Can Be Keyed:
Yes
Electronic:
No
Parent Manufacturer:
Allegion
Includes Cylinder(s)?:
No
Projection (in):
3-5/16"
Base Material:
Bronze
Specifications Bullet 2:
Athens Lever
Door Range (Thickness):
1-5/8" - 2-1/8"
Specifications Bullet 5:
1-1/8" X 2-1/4" Dead Latch
Grade:
Grade 1
Interior/Exterior:
Interior/Exterior
Box Depth (in):
9-1/2"
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Fire Rated:
3 Hours {A}
Maximum Door Thickness (in):
2-1/8"
Latch Number:
13-247
Lever/Knob/Pull:
Lever
Country Of Origin:
Mexico
Specifications Bullet 3:
SFIC Housing Less Core
Minimum Door Thickness (in):
1-5/8"
Specifications Bullet 8:
3-7/16" Rose
Keyway:
Less Core
Latch Description:
Dead Latch
Function:
Classroom
Rose/Escutcheon:
Rose
Latch Dimensions:
1-1/8" X 2-1/4"
Rose/Escutcheon Design:
Not Applicable
Product Warranty:
10 Year Warranty
Number of Pins:
6
UOM:
1
Specifications Bullet 7:
3-5/16" Projection
Specifications Bullet 12:
10 Year Warranty
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 4:
2-3/4" Backset
Cylinder Type:
SFIC Housing
Box Weight (lbs):
5 lbs
Latch Throw (in):
1/2"
Manufacturer:
Schlage
Strike Number:
10-025
Strike Description:
ASA Strike
Selling Quantity:
1
Series:
ND Series
Rose/Escutcheon Dimensions (in):
3-7/16"
Number of Keys:
2
Strike Dimensions:
1-1/4" x 4-7/8"
UPC:
840067615348

Warranty Information

10 Year Warranty
