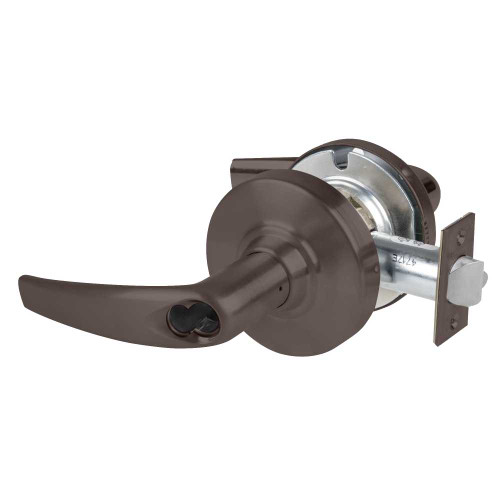

Schlage ND70JD ATH 613 Grade 1 Classroom Lock Athens Lever Schlage FSIC Prep Less Core Oil Rubbed Bronze Finish Non-Handed

Schlage

Write a Review
SKU:
ND70JD ATH 613
$572.86
Schlage ND70JD ATH 613 Grade 1 Classroom Lock Athens Lever Schlage FSIC Prep Less Core Oil Rubbed Bronze Finish Non-Handed
UPC:
840067615430
$572.86

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Country Of Origin:
Mexico
ADA:
Yes
Parent Manufacturer:
Allegion
Maximum Door Thickness (in):
2-1/8"
Box Depth (in):
9-1/2"
Door Range (Thickness):
1-5/8" - 2-1/8"
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Base Material:
Bronze
Lever/Knob/Pull:
Lever
Box Width (in):
8-1/4"
Can Be Keyed:
Yes
Backset (in):
2-3/4"
Box Height (in):
4-3/4"
Projection (in):
3-5/16"
Cylinder Type:
LFIC Housing
Specifications Bullet 5:
1-1/8" X 2-1/4" Dead Latch
Electronic:
No
Finish Description:
Oil Rubbed Bronze
Lever/Knob/Pull Design:
Athens
Function:
Classroom
Door Handing:
Non-handed
Keyway:
Less Core
Finish:
613/US10B
Rose/Escutcheon:
Rose
Latch Dimensions:
1-1/8" X 2-1/4"
Commercial Residential:
Commercial
Bore Hole Diameter (in):
2-1/8"
Latch Throw (in):
1/2"
Specifications Bullet 7:
3-5/16" Projection
Includes Cylinder(s)?:
No
Product Warranty:
10 Year Warranty
Specifications Bullet 3:
LFIC Housing Less Core
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 9:
For Doors 1-5/8" - 2-1/8" Thick
Grade:
Grade 1
Specifications Bullet 4:
2-3/4" Backset
Latch Description:
Dead Latch
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Interior/Exterior:
Interior/Exterior
Minimum Door Thickness (in):
1-5/8"
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Latch Number:
13-247
Specifications Bullet 2:
Athens Lever
Box Weight (lbs):
5 lbs
Fire Rated:
3 Hours {A}
Specifications Bullet 8:
3-7/16" Rose
Specifications Bullet 12:
10 Year Warranty
Series:
ND Series Lever Locks
Rose/Escutcheon Design:
Not Applicable
Number of Pins:
6
Strike Description:
ASA Strike
Number of Keys:
2
Rose/Escutcheon Dimensions (in):
3-7/16"
Specifications Bullet 1:
Grade 1 Classroom Function Cylindrical Lockset
UOM:
1
Selling Quantity:
1
Manufacturer:
Schlage
Strike Number:
10-025
Strike Dimensions:
1-1/4" x 4-7/8"
UPC:
840067615430

Warranty Information

10 Year Warranty
