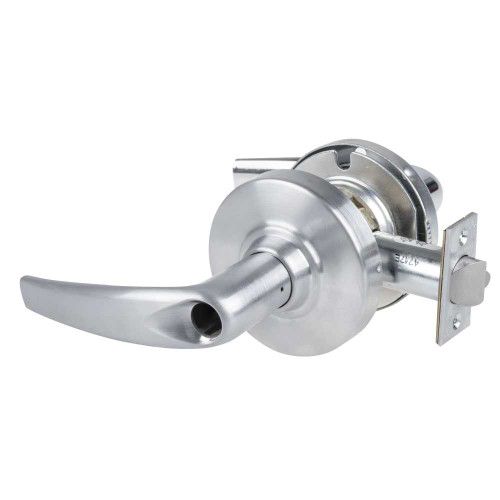

Schlage ND80LD ATH 626 Grade 1 Storeroom Lock Athens Lever Less Cylinder Satin Chrome Finish Non-Handed

Schlage

Write a Review
SKU:
ND80LD ATH 626
$504.72
UPC:
810007503363
$504.72

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Latch Description:
Dead Latch
Lever/Knob/Pull:
Lever
Specifications Bullet 9:
For Doors 1-5/8" - 2-1/8" Thick
Latch Number:
13-247
Minimum Door Thickness (in):
1-5/8"
Finish Description:
Satin Chrome
Lever/Knob/Pull Design:
Athens
ADA:
Yes
Cylinder Type:
Conventional
Box Height (in):
4-3/4"
Specifications Bullet 1:
Grade 1 Storeroom Function Cylindrical Lockset
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 2:
Athens Lever
Specifications Bullet 8:
3-7/16" Rose
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Keyway:
Less Core
Specifications Bullet 7:
3-5/16" Projection
Electronic:
No
Base Material:
Brass Bronze
Projection (in):
3-5/16"
Function:
Storeroom
Backset (in):
2-3/4"
Commercial Residential:
Commercial
Includes Cylinder(s)?:
No
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Can Be Keyed:
Yes
Finish:
626/US26D
Fire Rated:
3 Hours {A}
Manufacturer:
Schlage
Country Of Origin:
Mexico
Door Range (Thickness):
1-5/8" - 2-1/8"
Grade:
Grade 1
Box Width (in):
8-1/4"
Bore Hole Diameter (in):
2-1/8"
Box Depth (in):
9-1/2"
Door Handing:
Non-handed
Specifications Bullet 3:
Conventional Less Core
Latch Dimensions:
1-1/8" X 2-1/4"
Specifications Bullet 12:
10 Year Warranty
Latch Throw (in):
1/2"
Specifications Bullet 5:
1-1/8" X 2-1/4" Dead Latch
UOM:
1
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Maximum Door Thickness (in):
2-1/8"
Box Weight (lbs):
5 lbs
Rose/Escutcheon Design:
Not Applicable
Rose/Escutcheon Dimensions (in):
3-7/16"
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Strike Description:
ASA Strike
UPC:
810007503363
Product Warranty:
10 Year Warranty
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon:
Rose
Series:
ND Series
Strike Number:
10-025
Parent Manufacturer:
Allegion
Uid:
SCH100ND80LDATH626
Url Title:
nd80ld-ath-626
Title:
ND80LD ATH 626 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Series:
ND Series Lever Locks
Last Modified:
2023-02-28T06:56:23+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
733
Avg Lead Time:
28
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
5
Pack Length:
9.5
Pack Width:
8.25
Pack Height:
4.75
Pack Volume:
372.28125
Ul Listing:
UL/cUL Listed
Ansi Code:
ANSI A156.2 Series 4000, Grade 1
Baa Qualified:
Yes
Limited Warranty:
10 Years
Accessible:
Yes
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
Allegion

Warranty Information

10 Year Warranty
