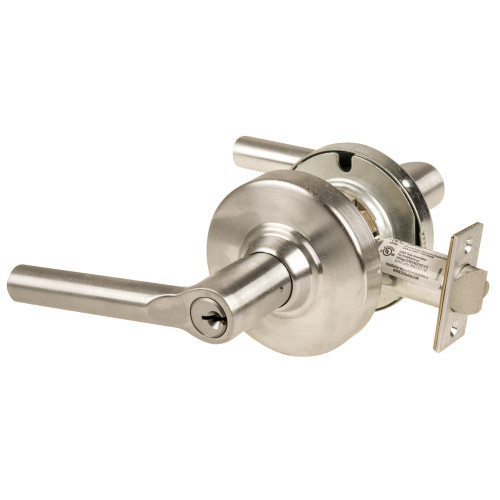

Schlage ND80PD SPA 619 Grade 1 Storeroom Lock Sparta Lever Standard Cylinder Satin Nickel Finish Non-Handed

Schlage

Write a Review
SKU:
ND80PD SPA 619
$572.20
$572.20

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Fire Rated:
3 Hours {A}
Door Handing:
Non-handed
Specifications Bullet 2:
Sparta Lever
Country Of Origin:
Mexico
Commercial Residential:
Commercial
Electronic:
No
Base Material:
Brass Bronze
Cylinder Type:
Conventional
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Projection (in):
3-1/2"
Box Height (in):
4-3/4"
Specifications Bullet 4:
2-3/4" Backset
Function:
Storeroom
Backset (in):
2-3/4"
Box Weight (lbs):
5 lbs
Finish Description:
Satin Nickel
Parent Manufacturer:
Allegion
Lever/Knob/Pull Design:
Sparta
Grade:
Grade 1
ADA:
Yes
Box Width (in):
8-1/4"
Door Range (Thickness):
1-5/8" - 2-1/8"
Specifications Bullet 3:
Conventional C Keyway
Box Depth (in):
9-1/2"
Finish:
619/US15
Latch Dimensions:
1-1/8" X 2-1/4"
Includes Cylinder(s)?:
Yes
Specifications Bullet 7:
3-1/2" Projection
Latch Description:
Dead Latch
Bore Hole Diameter (in):
2-1/8"
Lever/Knob/Pull:
Lever
Latch Throw (in):
1/2"
Latch Number:
13-247
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 5:
1-1/8" X 2-1/4" Dead Latch
Specifications Bullet 1:
Grade 1 Storeroom Function Cylindrical Lockset
Specifications Bullet 9:
For Doors 1-5/8" - 2-1/8" Thick
Strike Description:
ASA Strike
Keyway:
C Keyway
Series:
ND Series Lever Locks
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 8:
3-7/16" Rose
Product Warranty:
10 Year Warranty
Can Be Keyed:
Yes
Minimum Door Thickness (in):
1-5/8"
Specifications Bullet 12:
10 Year Warranty
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Manufacturer:
Schlage
Rose/Escutcheon Dimensions (in):
3-7/16"
Strike Dimensions:
1-1/4" x 4-7/8"
Maximum Door Thickness (in):
2-1/8"
UOM:
1
Strike Number:
10-025
Rose/Escutcheon Design:
Not Applicable
Rose/Escutcheon:
Rose
Uid:
SCH100ND80PDSPA619
Url Title:
nd80pd-spa-619
Title:
ND80PD SPA 619 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-28T06:41:46+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
832
Avg Lead Time:
33
Finish Family:
Matte Silver
Popularity:
9
Pack Weight:
5
Pack Length:
9.5
Pack Width:
8.25
Pack Height:
4.75
Pack Volume:
372.28125
Ul Listing:
UL/cUL Listed
Ansi Code:
ANSI A156.2 Series 4000, Grade 1
Baa Qualified:
Yes
Limited Warranty:
10 Years
Accessible:
Yes
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
Allegion

Warranty Information

10 Year Warranty
