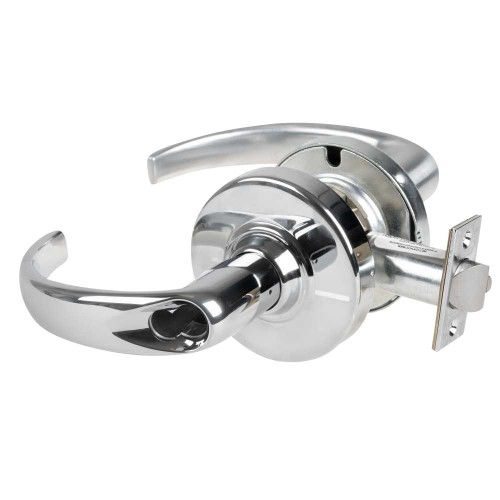

Schlage ND92BD ATH 625 Grade 1 Entrance Lock Athens Lever SFIC Prep Less Core Bright Chrome Finish Non-Handed

Schlage

Write a Review
SKU:
ND92BD ATH 625
$0.00
UPC:
840067619254
$0.00

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Lever/Knob/Pull:
Lever
Box Width (in):
8-1/4"
Specifications Bullet 1:
Grade 1 Entrance Function Cylindrical Lockset
Electronic:
No
Function:
Entrance
Country Of Origin:
Mexico
ADA:
Yes
Commercial Residential:
Commercial
Backset (in):
2-3/4"
Base Material:
Brass Bronze
Latch Description:
Dead Latch
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Door Handing:
Non-handed
Specifications Bullet 5:
1-1/8" X 2-1/4" Dead Latch
Specifications Bullet 3:
SFIC Housing Less Core
Maximum Door Thickness (in):
2-1/8"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Box Depth (in):
9-1/2"
Keyway:
Less Core
Specifications Bullet 4:
2-3/4" Backset
Lever/Knob/Pull Design:
Athens
Latch Throw (in):
1/2"
Box Height (in):
4-3/4"
Specifications Bullet 9:
For Doors 1-5/8" - 2-1/8" Thick
Grade:
Grade 1
Cylinder Type:
SFIC Housing
Box Weight (lbs):
5 lbs
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Finish Description:
Bright Chrome
Can Be Keyed:
Yes
Latch Number:
13-247
Specifications Bullet 12:
10 Year Warranty
Rose/Escutcheon Dimensions (in):
3-7/16"
Number of Keys:
2
Includes Cylinder(s)?:
No
Rose/Escutcheon:
Rose
Finish:
625/US26
Minimum Door Thickness (in):
1-5/8"
Specifications Bullet 2:
Athens Lever
Option 1:
Vandlguard
Door Range (Thickness):
1-5/8" - 2-1/8"
Product Warranty:
10 Year Warranty
Specifications Bullet 7:
3-5/16" Projection
Number of Pins:
6
Parent Manufacturer:
Allegion
Projection (in):
3-5/16"
Rose/Escutcheon Design:
Not Applicable
UPC:
840067619254
Strike Number:
10-025
Manufacturer:
Schlage
Series:
ND Series
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Strike Dimensions:
1-1/4" x 4-7/8"
Selling Quantity:
1
Specifications Bullet 8:
3-7/16" Rose
Strike Description:
ASA Strike
Latch Dimensions:
1-1/8" X 2-1/4"
Interior/Exterior:
Interior/Exterior
Fire Rated:
Yes
UOM:
1

Warranty Information

10 Year Warranty
