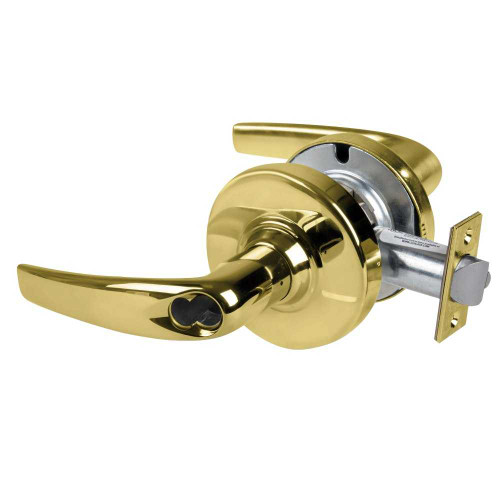

Schlage ND92JD ATH 605 Grade 1 Entrance Lock Athens Lever Schlage FSIC Prep Less Core Bright Brass Finish Non-Handed

Schlage

Write a Review
SKU:
ND92JD ATH 605
$616.09
UPC:
840067619346
$616.09

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Series:
ND Series Lever Locks
Function:
Entrance
Maximum Door Thickness (in):
2-1/8"
Grade:
Grade 1
Specifications Bullet 4:
2-3/4" Backset
Lever/Knob/Pull:
Lever
Box Height (in):
4-3/4"
Latch Number:
13-247
Lever/Knob/Pull Design:
Athens
Box Width (in):
8-1/4"
Latch Description:
Dead Latch
Country Of Origin:
Mexico
Cylinder Type:
LFIC Housing
Specifications Bullet 7:
3-5/16" Projection
Specifications Bullet 9:
For Doors 1-5/8" - 2-1/8" Thick
Door Handing:
Non-handed
Latch Dimensions:
1-1/8" X 2-1/4"
Specifications Bullet 1:
Grade 1 Entrance Function Cylindrical Lockset
Can Be Keyed:
Yes
Specifications Bullet 5:
1-1/8" X 2-1/4" Dead Latch
Box Weight (lbs):
5 lbs
Electronic:
No
Backset (in):
2-3/4"
Commercial Residential:
Commercial
Number of Keys:
2
Product Warranty:
10 Year Warranty
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Includes Cylinder(s)?:
No
Interior/Exterior:
Interior/Exterior
Keyway:
Less Core
Fire Rated:
3 Hours {A}
Latch Throw (in):
1/2"
ADA:
Yes
Box Depth (in):
9-1/2"
Door Range (Thickness):
1-5/8" - 2-1/8"
Option 1:
Vandlguard
Bore Hole Diameter (in):
2-1/8"
Rose/Escutcheon:
Rose
Base Material:
Brass
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 2:
Athens Lever
Finish:
605/US3
Minimum Door Thickness (in):
1-5/8"
Finish Description:
Bright Brass
Specifications Bullet 3:
LFIC Housing Less Core
Specifications Bullet 8:
3-7/16" Rose
Rose/Escutcheon Design:
Not Applicable
UPC:
840067619346
Rose/Escutcheon Dimensions (in):
3-7/16"
Projection (in):
3-5/16"
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 12:
10 Year Warranty
Strike Dimensions:
1-1/4" x 4-7/8"
Number of Pins:
6
UOM:
1
Selling Quantity:
1
Strike Description:
ASA Strike
Strike Number:
10-025
Manufacturer:
Schlage
Parent Manufacturer:
Allegion

Warranty Information

10 Year Warranty
