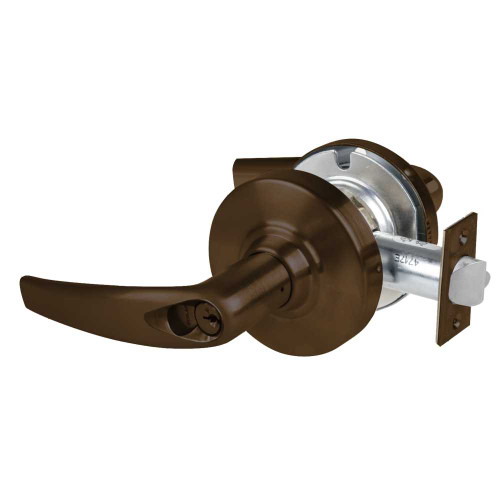

Schlage ND96JD ATH 613 Grade 1 Storeroom Lock Athens Lever Schlage FSIC Prep Less Core Oil Rubbed Bronze Finish Non-Handed

Schlage

Write a Review
SKU:
ND96JD ATH 613
$628.59
UPC:
840067620540
$628.59

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Country Of Origin:
Mexico
Keyway:
Less Core
Cylinder Type:
LFIC Housing
Electronic:
No
Lever/Knob/Pull Design:
Athens
Specifications Bullet 9:
For Doors 1-5/8" - 2-1/8" Thick
Specifications Bullet 12:
10 Year Warranty
Backset (in):
2-3/4"
Parent Manufacturer:
Allegion
Number of Keys:
2
Interior/Exterior:
Interior/Exterior
Specifications Bullet 3:
LFIC Housing Less Core
Specifications Bullet 1:
Grade 1 Storeroom Function Cylindrical Lockset
Can Be Keyed:
Yes
Function:
Storeroom
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 2:
Athens Lever
Door Range (Thickness):
1-5/8" - 2-1/8"
Latch Throw (in):
1/2"
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 5:
1-1/8" X 2-1/4" Dead Latch
Commercial Residential:
Commercial
Latch Description:
Dead Latch
Maximum Door Thickness (in):
2-1/8"
Lever/Knob/Pull:
Lever
ADA:
Yes
Box Height (in):
4-3/4"
Box Depth (in):
9-1/2"
Specifications Bullet 8:
3-7/16" Rose
Minimum Door Thickness (in):
1-5/8"
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Latch Number:
13-247
Latch Dimensions:
1-1/8" X 2-1/4"
Grade:
Grade 1
Finish:
613/US10B
Door Handing:
Non-handed
Specifications Bullet 7:
3-5/16" Projection
Box Width (in):
8-1/4"
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Projection (in):
3-5/16"
Base Material:
Bronze
Series:
ND Series Lever Locks
Finish Description:
Oil Rubbed Bronze
Includes Cylinder(s)?:
No
Selling Quantity:
1
Box Weight (lbs):
5 lbs
Fire Rated:
3 Hours {A}
Rose/Escutcheon Design:
Not Applicable
UPC:
840067620540
Product Warranty:
10 Year Warranty
Option 1:
Vandlguard
Number of Pins:
6
Strike Number:
10-025
Rose/Escutcheon Dimensions (in):
3-7/16"
Rose/Escutcheon:
Rose
Strike Description:
ASA Strike
UOM:
1
Strike Dimensions:
1-1/4" x 4-7/8"
Manufacturer:
Schlage

Warranty Information

10 Year Warranty
