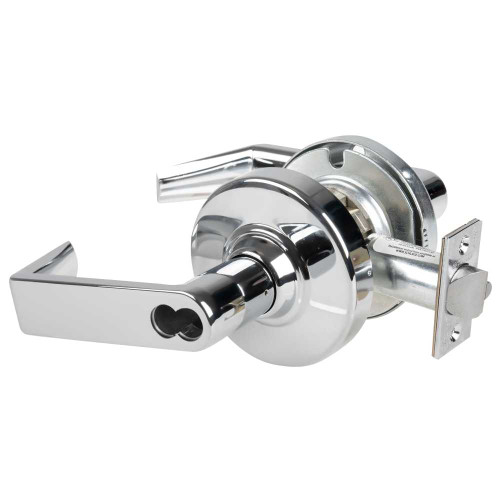

Schlage ND96JDEU RHO 626 Grade 1 Electrified Cylindrical Lock Storeroom Function with Vandlgard 12-24V DC Fail Secure 2-3/4 Backset Rhodes Lever LFIC Prep Satin Chrome

Schlage

Write a Review
SKU:
ND96JDEU RHO 626
$814.97
Schlage ND96JDEU RHO 626 Grade 1 Electrified Cylindrical Lock Storeroom Function with Vandlgard 12-24V DC Fail Secure 2-3/4 Backset Rhodes Lever LFIC Prep Satin Chrome
$814.97

Descriptions

ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf

Specifications

Brand:
Schlage
Latch Dimensions:
1-1/8" x 2-1/4"
Rose/Escutcheon Dimensions (in):
3-7/16"
Can Be Keyed:
Yes
Box Height (in):
4-3/4"
Door Range (Thickness):
1-5/8" - 2-1/8"
Keyway:
Less Core
Specifications Bullet 12:
2-1/8" Bore Hole Diameter
Latch Description:
Dead Latch
Strike Number:
10-025
Screw Pack:
Wood/Metal Screws
Box Weight (lbs):
5 lbs
Latch Bore Diameter (in):
1"
Specifications Bullet 3:
LFIC Housing Less Core
Grade:
Grade 1
Projection (in):
2-15/16"
Specifications Bullet 4:
2-3/4" Backset
Product Warranty:
1 Year Warranty
Function:
Electronically Unlocked Storeroom
Includes Cylinder(s)?:
Yes
Finish:
626/US26D
Lever/Knob/Pull:
Lever
Specifications Bullet 15:
1 Year Warranty
Specifications Bullet 1:
Grade 1 Electrified Electronically Unlocked Storeroom Function Cylindrical Lockset
Electronic:
Yes
Latch Throw (in):
1/2"
Trademark Term:
Vandlguard
Manufacturer:
Schlage
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Bore Hole Diameter (in):
2-1/8"
Strike Dimensions:
1-1/4" x 4-7/8"
Maximum Door Thickness (in):
2-1/8"
Fire Rated:
Yes
Minimum Door Thickness (in):
1-5/8"
ADA:
Yes
Finish Description:
Satin Chrome
Specifications Bullet 8:
3-7/16" Rose Dimension
Voltage:
12/24 VDC Voltage
Specifications Bullet 7:
2-15/16" Projection
Specifications Bullet 11:
For Doors 1-5/8" - 2-1/8" Thick
Specifications Bullet 13:
Includes Wood/Metal Screws
Specifications Bullet 6:
12/24 VDC Voltage Fail Secure
Latch Number:
13-247
Rose/Escutcheon:
Rose
Lever/Knob/Pull Design:
Rhodes
Specifications Bullet 9:
1/2" Latch Throw
Specifications Bullet 2:
Rhodes Lever
Specifications Bullet 10:
1-1/8" x 2-1/4" Dead Latch
Parent Manufacturer:
Allegion
Country Of Origin:
Mexico
Strike Description:
ASA Strike
Base Material:
Brass Bronze
UOM:
1
Box Depth (in):
9-1/2"
Backset (in):
2-3/4"
Cylinder Type:
LFIC Housing
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Series:
ND Series
Box Width (in):
8-1/4"
FS/FSE Mode:
Fail Secure
Commercial/Residential:
Commercial
Door Handing:
Non-handed
Specifications Bullet 14:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Uid:
SCH100ND96JDEURHO626
Url Title:
nd96jdeu-rho-626
Title:
ND96JDEU RHO 626 Schlage Lock Electric Cylindrical Lock
Type:
Electric Locks
Sub Type:
Electric Cylindrical Lock
Series:
ND Series Electrified Lever Locks
Last Modified:
2021-05-14T12:16:18+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Commercial Residential:
Commercial
Msrp:
1174
Avg Lead Time:
62
Popularity:
9
Pack Weight:
5
Baa Qualified:
Yes
Limited Warranty:
1 Year
Base Material:
Brass or Bronze
Vendor:
Allegion

Warranty Information

1 Year Warranty
