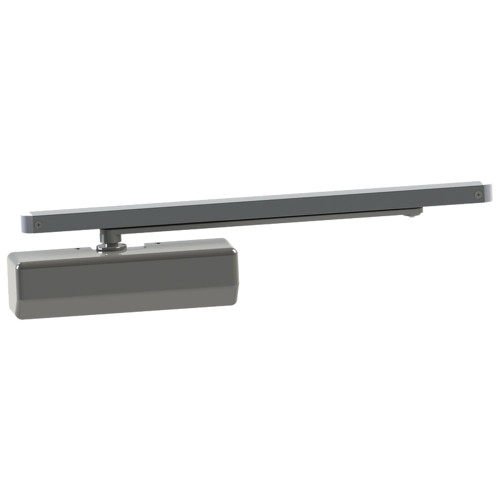

Hager 5100-MLT ALM Grade 1 Surface Closer Push or Pull Side Tri Mount Mounting Regular Double Lever Arm Size 1 to 6 Adjustable Aluminum Finish Left-Handed

Hager

Write a Review
SKU:
5100-MLT ALM
$255.49
UPC:
840067657805
$255.49

Descriptions

5100 Series Closers are heavy duty door closers constructed of cast iron to be installed on exterior and interior doors that are subject to high use and potential abuse. They are designed and engineered for reliability and superior performance. The commercial applications ideal for these closers include schools, medical facilities, institutions and hospitals as well as office buildings and any entrance door with high foot traffic
TypeTitleURL
dimensional-drawings5200 Series Door Sizinghttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5200_doorsizingchart_relatedfiles.pdf
instruction-sheets5100 Series Door Closer - Delayed Action Instruction Sheethttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5100SeriesDelayedActionInstallationInstructions.pdf
5100 Series Instruction Sheethttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5100_series-installation-instructions.pdf
5125, 5106, 5108, 5961 Heavy Duty Parallel Arm Instruction Sheethttps://dvwi9lnoau63q.cloudfront.net/hager/installation/hager-5961-armi-cl00238.pdf
5200 Series Door Closer Instruction Sheetshttps://dvwi9lnoau63q.cloudfront.net/hager/installation/Hager-5200-installationi-cl00187.pdf
5300 Series Door Closer Instruction Sheethttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5300_pg1-6_8_14_06-1.pdf
5400 Series Non-Hold Open Door Closer Instruction Sheetshttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5400_install_pgs_11-3-05.pdf
literatureHager - Door Closer ANSI Reference Sheethttps://dvwi9lnoau63q.cloudfront.net/hager/literature/5200-door-closer-ansi-reference-sheet.pdf
Hager Door Closers - How to Order Guidehttps://dvwi9lnoau63q.cloudfront.net/hager/literature/hager-5100series-door-closers-how-to-order.pdf
Hager Test Report for 5400 Series Door Closerhttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5400_series-test_report-diagram.pdf
price-book2022 Hager Price Bookhttps://dvwi9lnoau63q.cloudfront.net/hager/pricebooks/HAGER_pricebook_16.12_12-2022.pdf
videoAdjusting the 5100 Door Closerhttps://youtu.be/F08DtZpJr6E
Hager 8400 Series Low Energy Door Power Operator Installationhttps://youtu.be/wA1pk6xkzzE

Specifications

Brand:
Hager
Commercial Residential:
Commercial
UOM:
1
Finish Description:
Aluminum
Cover Type:
Full Body Cover
Door Handing:
Non-handed
Manufacturer:
Hager
Door Range (Thickness):
-
Arm Type:
Standard Arm
Piston Diameter (in):
1-1/2"
Specifications Bullet 10:
Includes Thrubolts, Self Reaming Tapping Screws
Maximum Door Weight (lbs):
225 lbs Maximum Door Weight
Finish:
689/US28
Specifications Bullet 8:
Cast Iron Body
ADA:
Yes
Specifications Bullet 7:
Plastic Full Body Cover
Closing Speed Adjustment:
Yes
Advanced Backcheck:
No
Specifications Bullet 5:
Non-handed
Product Warranty:
Lifetime Warranty
Latch Speed Adjustment:
Yes
Specifications Bullet 2:
Standard Arm
Specifications Bullet 12:
Lifetime Warranty
Specifications Bullet 3:
Size 1-6
Hold Open:
No
Body Base Material:
Cast Iron
Country of Origin:
United States
Backcheck:
Yes
Size:
Size 1-6
Fire Rated:
3 Hours {A}
Hold Open Type:
Not Applicable
Specifications Bullet 11:
ANSI A156.4 Grade 1, A117.1 ADA, UL Listed
Cover Material:
Plastic
All Weather Fluid:
Yes
Grade:
Grade 1
Selling Quantity:
1
Interior/Exterior:
Interior/Exterior
UPC:
840067657805
Series:
Hager Door Coordinators and Closers
Specifications Bullet 1:
Grade 1 Surface Door Closer
Degree Swing:
180 Degree Swing
Screw Pack:
Thrubolts, Self Reaming Tapping Screws
Mount:
Tri Mount
Specifications Bullet 9:
1-1/2" Piston Diameter
Specifications Bullet 4:
Tri Mount
Type:
Door Closers and Operators
Certification:
ANSI A156.4 Grade 1, A117.1 ADA, UL Listed
Specifications Bullet 6:
180 Degree Swing
Uid:
HAG5100MLTALM
Url Title:
5100-mlt-alm
Title:
5100-MLT ALM Hager Surface Closers
Sub Type:
Surface Closers
Last Modified:
2023-02-13T08:24:58+00:00
Last Pricing:
2022-07-13T00:00:00+00:00
Msrp:
386.22
Avg Lead Time:
11
Finish Family:
Matte Silver
Finish B:
ALM
Finish B Description:
Sprayed Aluminum
Popularity:
9
Limited Warranty:
Lifetime
Vendor:
Hager

Warranty Information

Lifetime Warranty
