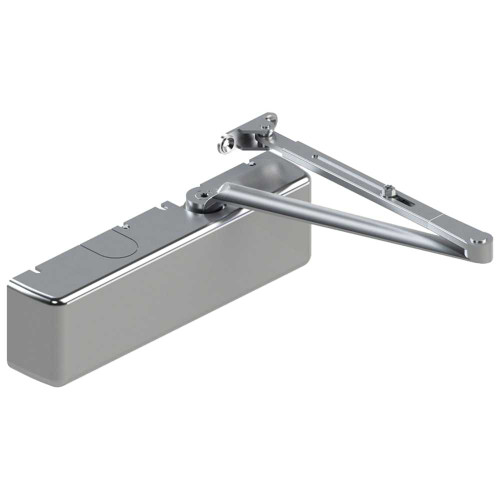

Hager 5100 MLT 16 ALM Grade 1 Surface Closer Push or Pull Side Tri Mount Mounting Regular Double Lever Arm Size 1 to 6 Adjustable Aluminum Finish Non-Handed

Hager

Write a Review
SKU:
5100 MLT 16 ALM
$255.49
$255.49

Descriptions

5100 Series Closers are heavy duty door closers constructed of cast iron to be installed on exterior and interior doors that are subject to high use and potential abuse. They are designed and engineered for reliability and superior performance. The commercial applications ideal for these closers include schools, medical facilities, institutions and hospitals as well as office buildings and any entrance door with high foot traffic
TypeTitleURL
dimensional-drawings5200 Series Door Sizinghttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5200_doorsizingchart_relatedfiles.pdf
instruction-sheets5100 Series Door Closer - Delayed Action Instruction Sheethttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5100SeriesDelayedActionInstallationInstructions.pdf
5100 Series Instruction Sheethttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5100_series-installation-instructions.pdf
5125, 5106, 5108, 5961 Heavy Duty Parallel Arm Instruction Sheethttps://dvwi9lnoau63q.cloudfront.net/hager/installation/hager-5961-armi-cl00238.pdf
5200 Series Door Closer Instruction Sheetshttps://dvwi9lnoau63q.cloudfront.net/hager/installation/Hager-5200-installationi-cl00187.pdf
5300 Series Door Closer Instruction Sheethttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5300_pg1-6_8_14_06-1.pdf
5400 Series Non-Hold Open Door Closer Instruction Sheetshttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5400_install_pgs_11-3-05.pdf
literatureHager - Door Closer ANSI Reference Sheethttps://dvwi9lnoau63q.cloudfront.net/hager/literature/5200-door-closer-ansi-reference-sheet.pdf
Hager Door Closers - How to Order Guidehttps://dvwi9lnoau63q.cloudfront.net/hager/literature/hager-5100series-door-closers-how-to-order.pdf
Hager Test Report for 5400 Series Door Closerhttps://dvwi9lnoau63q.cloudfront.net/hager/installation/5400_series-test_report-diagram.pdf
price-book2022 Hager Price Bookhttps://dvwi9lnoau63q.cloudfront.net/hager/pricebooks/HAGER_pricebook_16.12_12-2022.pdf
videoAdjusting the 5100 Door Closerhttps://youtu.be/F08DtZpJr6E
Hager 8400 Series Low Energy Door Power Operator Installationhttps://youtu.be/wA1pk6xkzzE

Specifications

Brand:
Hager
ADA:
Yes
Series:
Hager Door Coordinators and Closers
All Weather Fluid:
Yes
Advanced Backcheck:
No
Manufacturer:
Hager
Closing Speed Adjustment:
Yes
Body Base Material:
Cast Iron
Backcheck:
Yes
Certification:
ANSI A156.4 Grade 1, A117.1 ADA, UL Listed
Arm Type:
Standard Arm
Degree Swing:
180 Degree Swing
Country of Origin:
United States
Cover Material:
Plastic
Cover Type:
Full Body Cover
Door Handing:
Non-handed
Finish:
689/US28
Finish Description:
Aluminum
Grade:
Grade 1
Fire Rated:
3 Hours {A}
Door Range (Thickness):
-
Specifications Bullet 1:
Grade 1 Surface Door Closer
Hold Open Type:
Not Applicable
Specifications Bullet 2:
Standard Arm
Hold Open:
No
Latch Speed Adjustment:
Yes
Specifications Bullet 7:
Plastic Full Body Cover
Specifications Bullet 6:
180 Degree Swing
Specifications Bullet 3:
Size 1-6
Specifications Bullet 4:
Tri Mount
Specifications Bullet 5:
Non-handed
Specifications Bullet 9:
1-1/2" Piston Diameter
Specifications Bullet 11:
ANSI A156.4 Grade 1, A117.1 ADA, UL Listed
Specifications Bullet 12:
Lifetime Warranty
Specifications Bullet 8:
Cast Iron Body
Specifications Bullet 10:
Includes Thrubolts, Self Reaming Tapping Screws
Piston Diameter (in):
1-1/2"
Product Warranty:
Lifetime Warranty
Screw Pack:
Thrubolts, Self Reaming Tapping Screws
Mount:
Tri Mount
Maximum Door Weight (lbs):
225
Size:
Size 1-6
Type:
Door Closers and Operators
Uid:
HAG1005100MLT16ALM
Url Title:
hag1005100-mlt-16-alm
Title:
5100 MLT 16 ALM Hager Surface Closers
Sub Type:
Surface Closers
Last Modified:
2024-02-03T05:15:20+00:00
Last Pricing:
2022-07-13T00:00:00+00:00
Commercial Residential:
Commercial
Msrp:
386.22
Avg Lead Time:
13
Finish Family:
Matte Silver
Popularity:
9
Vendor:
Hager

Warranty Information

Lifetime Warranty
