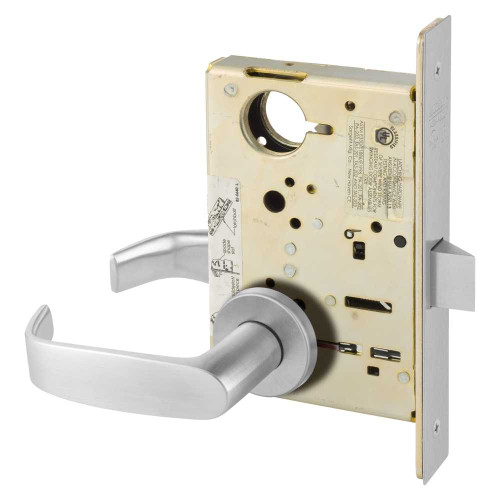

Sargent 8215 OL 26D Grade 1 Passage or Closet Mortise Lock L - Lever O - Rose Field Reversible ASA Strike Satin Chrome

Sargent

Write a Review
SKU:
8215 OL 26D
$698.47
Sargent 8215 OL 26D Grade 1 Passage or Closet Mortise Lock L - Lever O - Rose Field Reversible ASA Strike Satin Chrome
$698.47

Descriptions

TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Cylinder Type:
Keyless
Latch Dimensions:
1-1/4" x 8"
Commercial/Residential:
Commercial
Minimum Door Thickness (in):
1-3/4"
ADA:
Yes
Specifications Bullet 6:
2-3/8" Projection
Latch Throw (in):
3/4"
Specifications Bullet 3:
O Rose
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 10:
6-5/8" x 4-1/2" Pocket Dimension
Country Of Origin:
USA
Rose/Escutcheon Design:
O
Door Handing:
Non-handed
Fire Rated:
2 Hours {B}
Keyway:
Not Applicable
Can Be Keyed:
No
Interior/Exterior:
Interior/Exterior
Includes Cylinder(s)?:
No
Deadbolt Throw (in):
Not Applicable
Electronic:
No
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Lever/Knob/Pull Design:
L
Parent Manufacturer:
Assa Abloy
Armor Front Dimensions:
1-1/4" x 8"
Backset (in):
2-3/4"
Finish:
626/US26D
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Base Material:
Brass Bronze
Specifications Bullet 2:
L Lever
Specifications Bullet 13:
10 Year Warranty
Specifications Bullet 7:
2-3/4" Rose Dimension
Finish Description:
Satin Chrome
Function:
Passage
Specifications Bullet 8:
3/4" Spring Latch
Grade:
Grade 1
Specifications Bullet 11:
For Doors 1-3/4" Thick
Specifications Bullet 12:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Latch Description:
Spring Latch
Pocket Depth (in):
6-5/8" x 4-1/2"
Specifications Bullet 9:
1-1/8" x 8" Faceplate Dimension
Product Warranty:
10 Year Warranty
Specifications Bullet 1:
Grade 1 Passage Function Mortise Lockset
Maximum Door Thickness (in):
1-3/4"
Lever/Knob/Pull:
Lever
Projection (in):
2-3/8"
Rose/Escutcheon Dimensions (in):
2-3/4"
Pocket Dimensions:
6-5/8" x 4-1/2"
Strike Description:
ASA Strike
Door Range (Thickness):
1-3/4" - 1-3/4"
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
82-0110
Manufacturer:
Sargent
Series:
8200 Series
Rose/Escutcheon:
Rose
Selling Quantity:
1
UOM:
1

Warranty Information

10 Year Warranty
