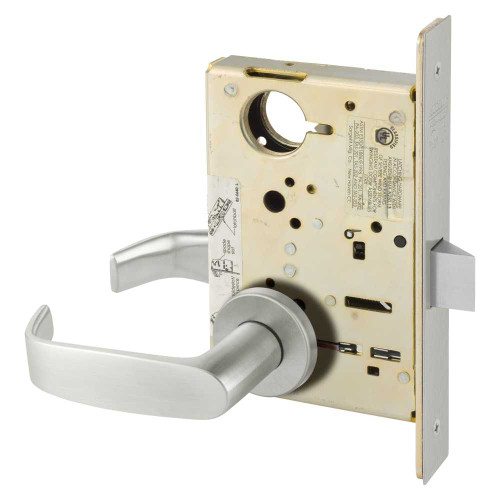

Sargent 8215 LNL 26D Grade 1 Passage or Closet Mortise Lock L - Lever LN - Rose Field Reversible ASA Strike Satin Chrome

Sargent

Write a Review
SKU:
8215 LNL 26D
$698.47
Sargent 8215 LNL 26D Grade 1 Passage or Closet Mortise Lock L - Lever LN - Rose Field Reversible ASA Strike Satin Chrome
UPC:
810007500546
$698.47

Descriptions

TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Base Material:
Brass Bronze
Deadbolt Throw (in):
Not Applicable
Finish:
626/US26D
Function:
Passage
UOM:
1
Specifications Bullet 2:
L Lever
Strike Dimensions:
1-1/4" x 4-7/8"
Finish Description:
Satin Chrome
Fire Rated:
2 Hours {B}
Door Range (Thickness):
1-3/4" - 1-3/4"
Lever/Knob/Pull Design:
L
Specifications Bullet 1:
Grade 1 Passage Function Mortise Lockset
Latch Throw (in):
3/4"
Specifications Bullet 12:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Interior/Exterior:
Interior/Exterior
Specifications Bullet 8:
3/4" Spring Latch
Latch Description:
Spring Latch
Specifications Bullet 9:
1-1/8" x 8" Faceplate Dimension
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Specifications Bullet 3:
LN Rose
Pocket Dimensions:
6-5/8" x 4-1/2"
Electronic:
No
Country Of Origin:
USA
Commercial/Residential:
Commercial
Door Handing:
Non-handed
Product Warranty:
10 Year Warranty
Specifications Bullet 4:
2-3/4" Backset
Manufacturer:
Sargent
Specifications Bullet 6:
2-3/8" Projection
Rose/Escutcheon:
Rose
Includes Cylinder(s)?:
No
Keyway:
Not Applicable
Projection (in):
2-3/8"
Pocket Depth (in):
6-5/8" x 4-1/2"
Specifications Bullet 7:
2-1/8" Rose Dimension
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 10:
6-5/8" x 4-1/2" Pocket Dimension
Grade:
Grade 1
Latch Dimensions:
1-1/4" x 8"
Backset (in):
2-3/4"
Lever/Knob/Pull:
Lever
Specifications Bullet 11:
For Doors 1-3/4" Thick
Minimum Door Thickness (in):
1-3/4"
Strike Number:
82-0110
ADA:
Yes
Specifications Bullet 13:
10 Year Warranty
Strike Description:
ASA Strike
Cylinder Type:
Keyless
UPC:
810007500546
Rose/Escutcheon Design:
LN
Maximum Door Thickness (in):
1-3/4"
Rose/Escutcheon Dimensions (in):
2-1/8"
Parent Manufacturer:
Assa Abloy
Armor Front Dimensions:
1-1/4" x 8"
Can Be Keyed:
No
Series:
8200 Series
Selling Quantity:
1
Uid:
SAR1008215LNL26D
Url Title:
8215-lnl-26d
Title:
8215 LNL 26D Sargent Manufacturing Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Series:
8200 Line Lever Mortise Locks
Last Modified:
2023-02-28T05:12:33+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
983
Avg Lead Time:
16
Popularity:
3
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
