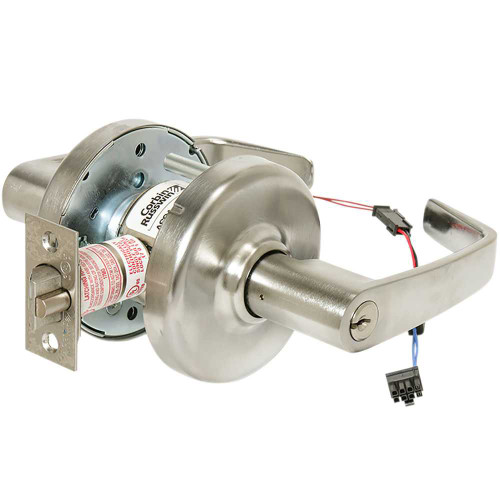

Corbin Russwin CL33905 NZD 626 24AD Fail Secure Lever 24AC/DC Grade 1 NZD Design Satin Chrome

Corbin Russwin

Write a Review
SKU:
CL33905 NZD 626 24AD
$840.91
Corbin Russwin CL33905 NZD 626 24AD Fail Secure Lever 24AC/DC Grade 1 NZD Design Satin Chrome
$840.91

Descriptions

For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.
TypeTitleURL
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf
wiring-diagrams-and-instructionsCL33900 Wiring Diagramhttps://dvwi9lnoau63q.cloudfront.net/corbin/wiring-diagrams-instructions/120869.pdf

Specifications

Brand:
Corbin Russwin
Series:
CL33900 Series Grade 1 Electrified Lever Locks
Specifications Bullet 8:
2-13/16" Projection
Specifications Bullet 5:
2-3/4" Backset
Door Handing:
Non-handed
Specifications Bullet 3:
Newport Lever
Lever/Knob/Pull Design:
Newport
Manufacturer:
Corbin Russwin
Latch Number:
586F17
Specifications Bullet 7:
24 VAC/VDC Voltage Fail Secure
Cylinder Type:
Conventional
Latch Dimensions:
1-1/8" x 2-1/4"
Can Be Keyed:
Yes
Specifications Bullet 1:
Grade 1 Electrified Electronically Unlocked Storeroom Function Cylindrical Lockset
Base Material:
Brass or Bronze
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 12:
For Doors 1-3/4" - 2" Thick
Specifications Bullet 10:
1/2" Latch Throw
Latch Throw (in):
1/2"
Includes Cylinder(s)?:
Yes
Keyway:
L4 Keyway
Function:
Electronically Unlocked Storeroom
Lever/Knob/Pull:
Lever
Parent Manufacturer:
Assa Abloy
Specifications Bullet 11:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 14:
Includes Wood/Metal Screws
Specifications Bullet 4:
Conventional L4 Keyway
Specifications Bullet 13:
2-1/8" Bore Hole Diameter
Bore Hole Diameter (in):
2-1/8"
Finish Description:
Satin Chrome
ADA:
Yes
Country of Origin:
United States
Specifications Bullet 9:
3-1/2" Rose Dimension
Door Range (Thickness):
1-3/4" - 2"
Maximum Door Thickness (in):
2"
Latch Description:
Dead Latch
Specifications Bullet 16:
7 Year Warranty
Specifications Bullet 2:
ElectroLynx 8-pin Connector
Projection (in):
2-13/16"
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 15:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Finish:
626/US26D
FS/FSE Mode:
Fail Secure
Product Warranty:
7 Year Warranty
Rose/Escutcheon Dimensions (in):
3-1/2"
Backset (in):
2-3/4"
Option 1:
ElectroLynx 8-pin Connector
Grade:
Grade 1
Rose/Escutcheon:
Rose
Strike Number:
SC114
Voltage:
24 VAC/VDC Voltage
Screw Pack:
Wood/Metal Screws
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
Uid:
COR300CL33905NZD62624AD
Url Title:
cl33905-nzd-626-24ad
Title:
CL33905 NZD 626 24AD Corbin Russwin Cylindrical Lock
Type:
Electric Locks
Sub Type:
Electric Cylindrical Lock
Last Modified:
2023-02-28T05:35:22+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1117
Avg Lead Time:
23
Popularity:
3
Pack Weight:
4.8
Pack Length:
10
Pack Width:
7.5
Pack Height:
4.5
Pack Volume:
337.5
Limited Warranty:
7 Years
Fire Rated:
3 Hours {A}
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Assembly Item:
1

Warranty Information

7 Year Warranty
