  • Corbin Russwin CL33905 NZD 626 CL6 24AD Fail Secure Lever 24AC/DC Grade 1 NZD Design 6-Pin LFIC Prep Less Core Satin Chrome

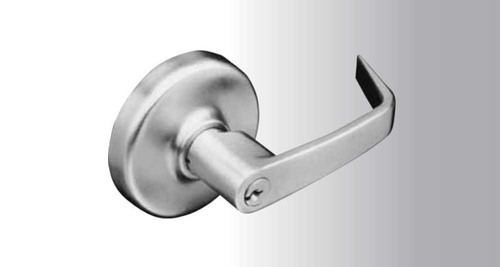

Corbin Russwin CL33905 NZD 626 CL6 24AD Fail Secure Lever 24AC/DC Grade 1 NZD Design 6-Pin LFIC Prep Less Core Satin Chrome

Corbin Russwin

Write a Review
SKU:
CL33905 NZD 626 CL6 24AD
$840.91
Corbin Russwin CL33905 NZD 626 CL6 24AD Fail Secure Lever 24AC/DC Grade 1 NZD Design 6-Pin LFIC Prep Less Core Satin Chrome
$840.91

Descriptions

For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.
TypeTitleURL
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf
wiring-diagrams-and-instructionsCL33900 Wiring Diagramhttps://dvwi9lnoau63q.cloudfront.net/corbin/wiring-diagrams-instructions/120869.pdf

Specifications

Brand:
Corbin Russwin
Lever/Knob/Pull Design:
Newport
Bore Hole Diameter (in):
2-1/8"
Base Material:
Brass or Bronze
Finish:
626/US26D
Parent Manufacturer:
Assa Abloy
Specifications Bullet 12:
For Doors 1-3/4" - 2" Thick
Keyway:
Less Core
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 1:
Grade 1 Electrified Electronically Unlocked Storeroom Function Cylindrical Lockset
Specifications Bullet 2:
ElectroLynx 8-pin Connector
Can Be Keyed:
Yes
Lever/Knob/Pull:
Lever
Specifications Bullet 8:
2-13/16" Projection
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 7:
24 VAC/VDC Voltage Fail Secure
Voltage:
24 VAC/VDC Voltage
ADA:
Yes
Specifications Bullet 13:
2-1/8" Bore Hole Diameter
Rose/Escutcheon:
Rose
Finish Description:
Satin Chrome
Specifications Bullet 16:
7 Year Warranty
Country of Origin:
United States
Function:
Electronically Unlocked Storeroom
Specifications Bullet 4:
LFIC Housing Less Core
Specifications Bullet 3:
Newport Lever
Door Handing:
Non-handed
Door Range (Thickness):
1-3/4" - 2"
Specifications Bullet 9:
3-1/2" Rose Dimension
Includes Cylinder(s)?:
No
Latch Description:
Dead Latch
Grade:
Grade 1
Specifications Bullet 5:
2-3/4" Backset
FS/FSE Mode:
Fail Secure
Specifications Bullet 15:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Cylinder Type:
LFIC Housing
Latch Throw (in):
1/2"
Specifications Bullet 11:
1-1/8" x 2-1/4" Dead Latch
Maximum Door Thickness (in):
2"
Specifications Bullet 10:
1/2" Latch Throw
Screw Pack:
Wood/Metal Screws
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 14:
Includes Wood/Metal Screws
Projection (in):
2-13/16"
Latch Dimensions:
1-1/8" x 2-1/4"
Rose/Escutcheon Dimensions (in):
3-1/2"
Latch Number:
586F17
Strike Description:
ASA Strike
Strike Number:
SC114
Strike Dimensions:
1-1/4" x 4-7/8"
Product Warranty:
7 Year Warranty
Option 1:
ElectroLynx 8-pin Connector
Backset (in):
2-3/4"
Series:
CL3300 Series
Manufacturer:
Corbin Russwin

Warranty Information

7 Year Warranty
