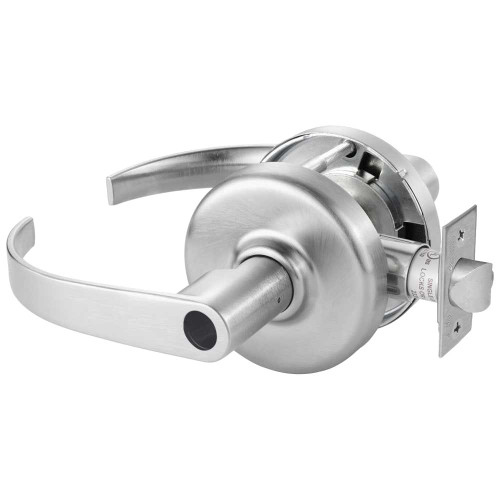

  • Corbin Russwin CL3561 PZD 626 LC Grade 1 Entry/Office Cylindrical Lock Princeton Lever Conventional Less Cylinder Satin Chrome Finish Non-handed

Corbin Russwin CL3561 PZD 626 LC Grade 1 Entry/Office Cylindrical Lock Princeton Lever Conventional Less Cylinder Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3561 PZD 626 LC
$486.72
Corbin Russwin CL3561 PZD 626 LC Grade 1 Entry/Office Cylindrical Lock Princeton Lever Conventional Less Cylinder Satin Chrome Finish Non-handed
UPC:
840067632239
$486.72

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3500 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3500_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3500 Series Cylindrical Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/Corbin_Russwin_CL3500_Series_Key_In_Lever_Installation_Instructions.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf
sell-sheetCL3500 Series Cylindrical Lock Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/corbin/sell-sheets/Corbin_Russwin_CL3500_Series_Cylindrical_Lock_Sell_Sheet.pdf

Specifications

Brand:
Corbin Russwin
Lever/Knob/Pull:
Lever
Latch Bore Diameter (in):
1"
Maximum Door Thickness (in):
1-3/4"
Backset (in):
2-3/4"
Specifications Bullet 1:
Grade 1 Office Function Cylindrical Lockset
Country Of Origin:
United States
Specifications Bullet 7:
2-13/16" Projection
Keyway:
Less Core
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Bore Hole Diameter (in):
2-1/8"
Includes Cylinder(s)?:
No
Specifications Bullet 3:
Conventional Less Core
Door Handing:
Non-handed
Cylinder Type:
Conventional
Box Width (in):
7-1/2"
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Lever/Knob/Pull Design:
Princeton
Specifications Bullet 9:
For Doors 1-3/8" - 1-3/4" Thick
Latch Throw (in):
1/2"
Specifications Bullet 12:
7 Year Limited Warranty
Door Range (Thickness):
1-3/8" - 1-3/4"
Commercial Residential:
Commercial
Specifications Bullet 8:
3-1/2" D Rose
Base Material:
Brass, Bronze
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Latch Description:
Dead Latch
Series:
CL3500 Series Grade 1 Cylindrical Lever Locks
ADA:
Yes
Box Weight (lbs):
4.1 lbs
Box Depth (in):
10"
Grade:
Grade 1
Parent Manufacturer:
Assa Abloy
Box Height (in):
4-1/2"
Specifications Bullet 2:
Princeton Lever
Product Warranty:
7 Year Limited Warranty
Electronic:
No
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Specifications Bullet 4:
2-3/4" Backset
Can Be Keyed:
Yes
Finish:
626/US26D
Latch Dimensions:
1-1/8" x 2-1/4"
Fire Rated:
3 Hours {A}
Finish Description:
Satin Chrome
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Rose/Escutcheon Design:
D
Function:
Office
Minimum Door Thickness (in):
1-3/8"
Latch Number:
600F10
Strike Description:
ASA Strike
Rose/Escutcheon Dimensions (in):
3-1/2"
Strike Number:
217L13
UPC:
840067632239
Selling Quantity:
1
Projection (in):
2-13/16"
Rose/Escutcheon:
Rose
Strike Dimensions:
1-1/4" x 4-7/8"
UOM:
1
Manufacturer:
Corbin Russwin

Warranty Information

7 Year Limited Warranty
