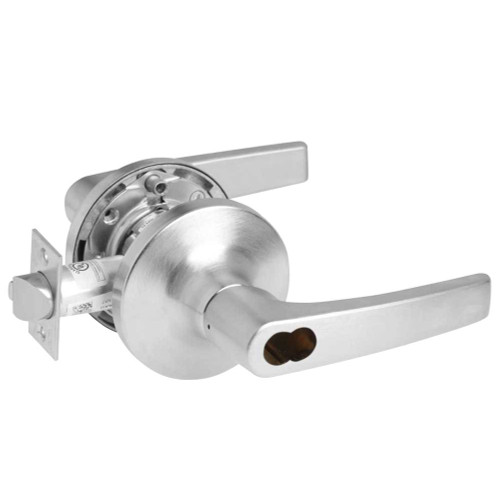

Yale MO5418LN 626 Grade 1 Intruder Classroom Cylindrical Lock Monroe Lever Conventional Cylinder Satin Chrome Finish Non-handed

ACCENTRA (formerly Yale Commercial)

Write a Review
SKU:
MO5418LN 626
$579.64
Yale MO5418LN 626 Grade 1 Intruder Classroom Cylindrical Lock Monroe Lever Conventional Cylinder Satin Chrome Finish Non-handed
$579.64

Descriptions

Designed for industrial, commercial and institutional use, the Yale 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
TypeTitleURL
catalog5400LN Series Grade 1 Cylindrical Lever Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/yale/catalogs/Yale_5400LN_Series_Cylindrical_Lever_Lock_Catalog.pdf
installation-instructions5400LN Series Grade 1 Cylindrical Lever Lockset Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9150-0056-01001-135400LNlever.pdf
Electrified Wiring and Request to Exit (REX) Instructions 5490LN/5491LNhttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9470-0011-00008-125490LNWiring.pdf
videoReplacing Push Button on a Yale 5400 Series Cylindrical Lockhttps://youtu.be/ikn7gr2aK4Y

Specifications

Brand:
ACCENTRA (formerly Yale Commercial)
Manufacturer:
Yale
Backset (in):
2-3/4"
Parent Manufacturer:
Assa Abloy
ADA:
Yes
Series:
5400LN Grade 1 Cylindrical Lever Locks
Can Be Keyed:
Yes
Bore Hole Diameter (in):
2-1/8"
Base Material:
Brass, Bronze
Certification:
ANSI A156.2, Grade 1, UL Listed
Commercial Residential:
Commercial
Cylinder Type:
Conventional
Door Range (Thickness):
1-3/4" - 2"
Electronic:
No
Finish:
626/US26D
Door Handing:
Non-handed
Function:
Classroom Intruder
Includes Cylinder(s)?:
Yes
Fire Rated:
3 Hours {A}
Grade:
Grade 1
Finish Description:
Satin Chrome
Latch Dimensions:
1-1/8" x 2-1/4"
Latch Number:
694
Keyway:
E1R Keyway
Latch Description:
Dead Latch
Latch Bore Diameter (in):
1"
Lever/Knob/Pull Design:
Monroe
Specifications Bullet 2:
Monroe Lever
Latch Throw (in):
1/2"
Lever/Knob/Pull:
Lever
Specifications Bullet 1:
Grade 1 Classroom Intruder Function Cylindrical Lockset
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 3:
Conventional E1R Keyway
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 7:
3-1/8" Projection
Specifications Bullet 8:
3-1/2" Rose
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Specifications Bullet 12:
7 Year Warranty
Specifications Bullet 11:
ANSI A156.2, Grade 1, UL Listed
Rose/Escutcheon:
Rose
Maximum Door Thickness (in):
2"
Product Warranty:
7 Year Warranty
Minimum Door Thickness (in):
1-3/4"
Projection (in):
3-1/8"
Rose/Escutcheon Design:
Not Applicable
Strike Description:
ASA Strike
Rose/Escutcheon Dimensions (in):
3-1/2"
Selling Quantity:
1
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
497
UOM:
1
Uid:
YAL200MO5418LN626
Url Title:
mo5418ln-626
Title:
Yale MO5418LN 626 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2022-10-10T05:17:58+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
824
Finish Family:
Matte Silver
Popularity:
8
Pack Weight:
5
Pack Length:
10
Pack Width:
7.5
Pack Height:
4
Pack Volume:
300
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Ansi Code:
F110
Country Of Origin:
United States
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Vendor:
ASSA ABLOY

Warranty Information

7 Year Warranty
