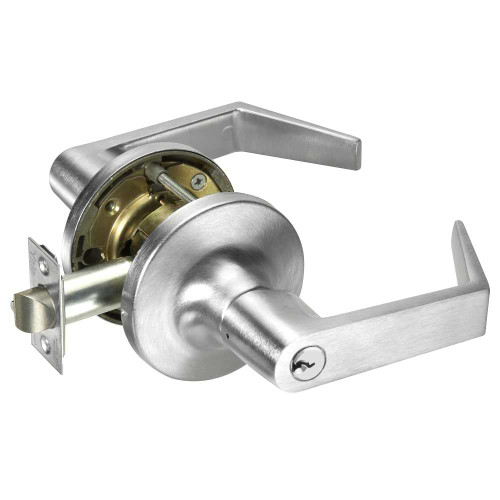

Yale AU5404LN 626 Grade 1 Entry Cylindrical Lock Augusta Lever Conventional Cylinder Satin Chrome Finish Non-handed

ACCENTRA (formerly Yale Commercial)

Write a Review
SKU:
AU5404LN 626
$522.75
Yale AU5404LN 626 Grade 1 Entry Cylindrical Lock Augusta Lever Conventional Cylinder Satin Chrome Finish Non-handed
$522.75

Descriptions

Designed for industrial, commercial and institutional use, the Yale 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
TypeTitleURL
catalog5400LN Series Grade 1 Cylindrical Lever Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/yale/catalogs/Yale_5400LN_Series_Cylindrical_Lever_Lock_Catalog.pdf
installation-instructions5400LN Series Grade 1 Cylindrical Lever Lockset Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9150-0056-01001-135400LNlever.pdf
Electrified Wiring and Request to Exit (REX) Instructions 5490LN/5491LNhttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9470-0011-00008-125490LNWiring.pdf
videoReplacing Push Button on a Yale 5400 Series Cylindrical Lockhttps://youtu.be/ikn7gr2aK4Y

Specifications

Brand:
ACCENTRA (formerly Yale Commercial)
Series:
5400LN Grade 1 Cylindrical Lever Locks
Backset (in):
2-3/4"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Cylinder Type:
Conventional
Latch Number:
694
Specifications Bullet 2:
Augusta Lever
Manufacturer:
Yale
Specifications Bullet 3:
Conventional E1R Keyway
Latch Throw (in):
1/2"
Specifications Bullet 1:
Grade 1 Entrance Function Cylindrical Lockset
Grade:
Grade 1
Function:
Entrance
Projection (in):
3-3/64"
Certification:
ANSI A156.2, Grade 1, UL Listed
Finish:
626/US26D
Keyway:
E1R Keyway
Lever/Knob/Pull:
Lever
Electronic:
No
ADA:
Yes
Specifications Bullet 4:
2-3/4" Backset
Finish Description:
Satin Chrome
Bore Hole Diameter (in):
2-1/8"
Latch Dimensions:
1-1/8" x 2-1/4"
Fire Rated:
3 Hours {A}
Door Handing:
Non-handed
Parent Manufacturer:
Assa Abloy
Maximum Door Thickness (in):
2"
Can Be Keyed:
Yes
Specifications Bullet 12:
7 Year Warranty
Door Range (Thickness):
1-3/4" - 2"
Specifications Bullet 11:
ANSI A156.2, Grade 1, UL Listed
Latch Bore Diameter (in):
1"
Specifications Bullet 7:
3-3/64" Projection
Base Material:
Brass, Bronze
Includes Cylinder(s)?:
Yes
Latch Description:
Dead Latch
Lever/Knob/Pull Design:
Augusta
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Commercial Residential:
Commercial
Rose/Escutcheon:
Rose
Selling Quantity:
1
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Rose/Escutcheon Dimensions (in):
3-1/2"
Minimum Door Thickness (in):
1-3/4"
Product Warranty:
7 Year Warranty
Rose/Escutcheon Design:
Not Applicable
Specifications Bullet 8:
3-1/2" Rose
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Description:
ASA Strike
UOM:
1
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Strike Number:
497
Uid:
YAL200AU5404LN626
Url Title:
au5404ln-626
Title:
Yale AU5404LN 626 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-26T06:11:46+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
743
Avg Lead Time:
68
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
5
Pack Length:
10
Pack Width:
7.5
Pack Height:
4
Pack Volume:
300
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Ansi Code:
F82A
Country Of Origin:
United States
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Vendor:
ASSA ABLOY

Warranty Information

7 Year Warranty
