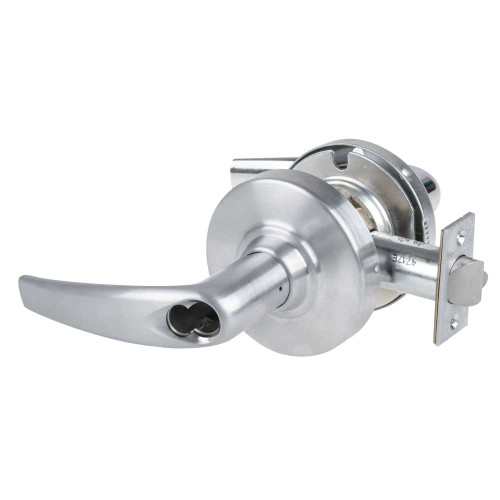

Schlage ND80BDEL ATH 625 Grade 1 Electrified Cylindrical Lock Storeroom Function 12-24 VDC Fail Safe 2-3/4 Backset Athens Lever SFIC Prep Bright Chrome Finish

Schlage

Write a Review
SKU:
ND80BDEL ATH 625
$746.83
Schlage ND80BDEL ATH 625 Grade 1 Electrified Cylindrical Lock Storeroom Function 12-24 VDC Fail Safe 2-3/4 Backset Athens Lever SFIC Prep Bright Chrome Finish
UPC:
840067616000
$746.83

Descriptions

ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf

Specifications

Brand:
Schlage
Base Material:
Brass or Bronze
Latch Dimensions:
1-1/8" x 2-1/4"
Strike Dimensions:
1-1/4" x 4-7/8"
Electronic:
Yes
Box Height (in):
4-3/4"
Lever/Knob/Pull Design:
Athens
Latch Number:
13-247
UPC:
840067616000
Series:
ND Series Electrified Lever Locks
Includes Cylinder(s)?:
No
Function:
Electronically Locked Storeroom
Grade:
Grade 1
Country Of Origin:
Mexico
Product Warranty:
1 Year Warranty
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 4:
2-3/4" Backset
Voltage:
12/24 VDC Voltage
Door Range (Thickness):
1-5/8" - 2-1/8"
Specifications Bullet 3:
SFIC Housing Less Core
Strike Description:
ASA Strike
Keyway:
Less Core
Commercial Residential:
Commercial
Minimum Door Thickness (in):
1-5/8"
Box Weight (lbs):
5 lbs
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Cylinder Type:
SFIC Housing
Latch Description:
Dead Latch
Specifications Bullet 9:
1/2" Latch Throw
Latch Throw (in):
1/2"
Specifications Bullet 6:
12/24 VDC Voltage Fail Safe
FS/FSE Mode:
Fail Safe
Specifications Bullet 8:
3-7/16" Rose Dimension
Specifications Bullet 12:
2-1/8" Bore Hole Diameter
Finish:
625/US26
Box Depth (in):
9-1/2"
Specifications Bullet 7:
3-5/16" Projection
Specifications Bullet 10:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 13:
Includes Wood/Metal Screws
Fire Rated:
Yes
Strike Number:
10-025
Specifications Bullet 2:
Athens Lever
Latch Bore Diameter (in):
1"
Bore Hole Diameter (in):
2-1/8"
Finish Description:
Bright Chrome
Can Be Keyed:
Yes
Specifications Bullet 15:
1 Year Warranty
Rose/Escutcheon Dimensions (in):
3-7/16"
Box Width (in):
8-1/4"
Door Handing:
Non-handed
Projection (in):
3-5/16"
Lever/Knob/Pull:
Lever
UOM:
1
Specifications Bullet 14:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Selling Quantity:
1
Screw Pack:
Wood/Metal Screws
Specifications Bullet 1:
Grade 1 Electrified Electronically Locked Storeroom Function Cylindrical Lockset
Parent Manufacturer:
Allegion
Manufacturer:
Schlage
Rose/Escutcheon:
Rose
Backset (in):
2-3/4"
Specifications Bullet 11:
For Doors 1-5/8" - 2-1/8" Thick
Maximum Door Thickness (in):
2-1/8"
ADA:
Yes

Warranty Information

1 Year Warranty
