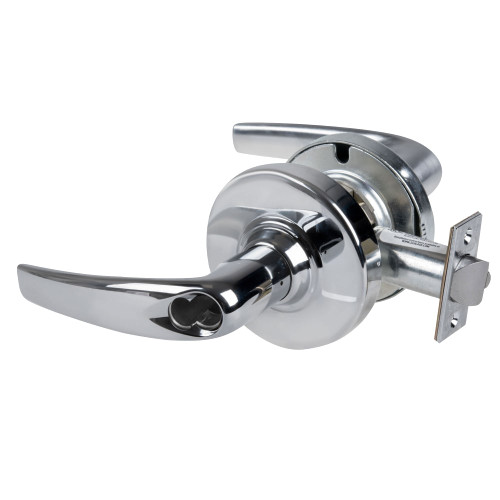

  • Schlage ND80BDEL ATH 626 Grade 1 Electrified Cylindrical Lock Storeroom Function 12-24 VDC Fail Safe 2-3/4 Backset Athens Lever SFIC Prep Satin Chrome Finish

Schlage ND80BDEL ATH 626 Grade 1 Electrified Cylindrical Lock Storeroom Function 12-24 VDC Fail Safe 2-3/4 Backset Athens Lever SFIC Prep Satin Chrome Finish

Schlage

Write a Review
SKU:
ND80BDEL ATH 626
MSRP:
$1,324.00
$835.00
You save $489.00
Schlage ND80BDEL ATH 626 Grade 1 Electrified Cylindrical Lock Storeroom Function 12-24 VDC Fail Safe 2-3/4 Backset Athens Lever SFIC Prep Satin Chrome Finish ND80BDEL ATH 626
UPC:
840067616024
MSRP:
$1,324.00
$835.00
You save $489.00
Available on backorder
On backorder - ships as soon as it arrives

Descriptions

ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf

Specifications

Brand:
Schlage
Box Weight (lbs):
5 lbs
Screw Pack:
Wood/Metal Screws
Box Depth (in):
9-1/2"
Backset (in):
2-3/4"
Strike Number:
10-025
Latch Throw (in):
1/2"
Door Handing:
Non-handed
Base Material:
Brass or Bronze
Finish Description:
Satin Chrome
Specifications Bullet 10:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 7:
3-5/16" Projection
Box Width (in):
8-1/4"
Door Range (Thickness):
1-5/8" - 2-1/8"
Voltage:
12/24 VDC Voltage
Keyway:
Less Core
Grade:
Grade 1
Specifications Bullet 6:
12/24 VDC Voltage Fail Safe
Commercial Residential:
Commercial
Electronic:
Yes
Cylinder Type:
SFIC Housing
Specifications Bullet 9:
1/2" Latch Throw
Maximum Door Thickness (in):
2-1/8"
ADA:
Yes
Specifications Bullet 3:
SFIC Housing Less Core
Selling Quantity:
1
Box Height (in):
4-3/4"
UOM:
1
Country Of Origin:
Mexico
Latch Dimensions:
1-1/8" x 2-1/4"
Strike Dimensions:
1-1/4" x 4-7/8"
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Function:
Electronically Locked Storeroom
Latch Number:
13-247
Lever/Knob/Pull Design:
Athens
FS/FSE Mode:
Fail Safe
Finish:
626/US26D
Product Warranty:
1 Year Warranty
Rose/Escutcheon:
Rose
Fire Rated:
Yes
Specifications Bullet 1:
Grade 1 Electrified Electronically Locked Storeroom Function Cylindrical Lockset
Bore Hole Diameter (in):
2-1/8"
Can Be Keyed:
Yes
Lever/Knob/Pull:
Lever
Series:
ND Series Electrified Lever Locks
Manufacturer:
Schlage
Specifications Bullet 14:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Latch Bore Diameter (in):
1"
Specifications Bullet 15:
1 Year Warranty
Specifications Bullet 13:
Includes Wood/Metal Screws
Projection (in):
3-5/16"
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Latch Description:
Dead Latch
Includes Cylinder(s)?:
No
Specifications Bullet 4:
2-3/4" Backset
UPC:
840067616024
Specifications Bullet 12:
2-1/8" Bore Hole Diameter
Minimum Door Thickness (in):
1-5/8"
Specifications Bullet 2:
Athens Lever
Strike Description:
ASA Strike
Rose/Escutcheon Dimensions (in):
3-7/16"
Specifications Bullet 11:
For Doors 1-5/8" - 2-1/8" Thick
Specifications Bullet 8:
3-7/16" Rose Dimension
Parent Manufacturer:
Allegion
Uid:
SCH100ND80BDELATH626
Url Title:
nd80bdel-ath-626
Title:
ND80BDEL ATH 626 Schlage Lock Electric Cylindrical Lock
Type:
Electric Locks
Sub Type:
Electric Cylindrical Lock
Last Modified:
2021-06-24T12:52:06+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1064
Avg Lead Time:
110
Popularity:
9
Pack Weight:
5
Baa Qualified:
Yes
Limited Warranty:
1 Year
Vendor:
Allegion

Warranty Information

1 Year Warranty
