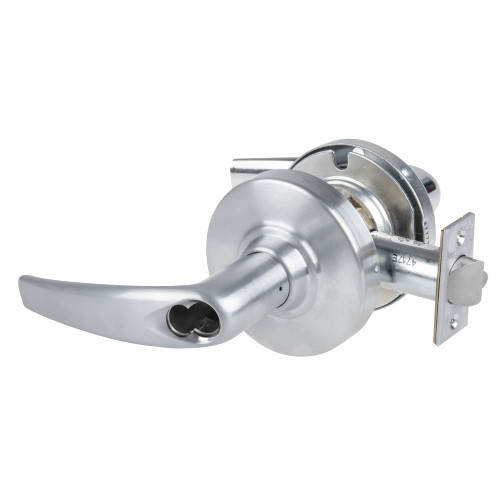

  • Schlage ND80BDEL ATH 626 RX Grade 1 Electrified Cylindrical Lock Storeroom Function 12-24 VDC Fail Safe 2-3/4 Backset Request to Exit Athens Lever SFIC Prep Satin Chrome Finish

Schlage ND80BDEL ATH 626 RX Grade 1 Electrified Cylindrical Lock Storeroom Function 12-24 VDC Fail Safe 2-3/4 Backset Request to Exit Athens Lever SFIC Prep Satin Chrome Finish

Schlage

Write a Review
SKU:
ND80BDEL ATH 626 RX
$805.05
Schlage ND80BDEL ATH 626 RX Grade 1 Electrified Cylindrical Lock Storeroom Function 12-24 VDC Fail Safe 2-3/4 Backset Request to Exit Athens Lever SFIC Prep Satin Chrome Finish
UPC:
840067616031
$805.05

Descriptions

ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf

Specifications

Brand:
Schlage
Specifications Bullet 3:
Athens Lever
Commercial Residential:
Commercial
Specifications Bullet 1:
Grade 1 Electrified Electronically Locked Storeroom Function Cylindrical Lockset
Function:
Electronically Locked Storeroom
Latch Bore Diameter (in):
1"
Lever/Knob/Pull:
Lever
Can Be Keyed:
Yes
Specifications Bullet 5:
2-3/4" Backset
Door Range (Thickness):
1-5/8" - 2-1/8"
Box Width (in):
8-1/4"
Backset (in):
2-3/4"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 15:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Rose/Escutcheon:
Rose
Grade:
Grade 1
Option 1:
Request to Exit
Specifications Bullet 16:
1 Year Warranty
Specifications Bullet 12:
For Doors 1-5/8" - 2-1/8" Thick
Specifications Bullet 14:
Includes Wood/Metal Screws
ADA:
Yes
Box Depth (in):
9-1/2"
Finish Description:
Satin Chrome
Cylinder Type:
SFIC Housing
Screw Pack:
Wood/Metal Screws
Door Handing:
Non-handed
Latch Number:
13-247
Minimum Door Thickness (in):
1-5/8"
Series:
ND Series Electrified Lever Locks
Finish:
626/US26D
Box Weight (lbs):
5 lbs
Specifications Bullet 4:
SFIC Housing Less Core
Maximum Door Thickness (in):
2-1/8"
Projection (in):
3-5/16"
Specifications Bullet 11:
1-1/8" x 2-1/4" Dead Latch
Box Height (in):
4-3/4"
Specifications Bullet 2:
Request to Exit
Product Warranty:
1 Year Warranty
Base Material:
Brass or Bronze
Fire Rated:
Yes
Electronic:
Yes
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 10:
1/2" Latch Throw
Keyway:
Less Core
Specifications Bullet 8:
3-5/16" Projection
Latch Dimensions:
1-1/8" x 2-1/4"
Includes Cylinder(s)?:
No
Specifications Bullet 9:
3-7/16" Rose Dimension
Specifications Bullet 13:
2-1/8" Bore Hole Diameter
Latch Throw (in):
1/2"
Country Of Origin:
Mexico
Latch Description:
Dead Latch
UOM:
1
Specifications Bullet 7:
12/24 VDC Voltage Fail Safe
FS/FSE Mode:
Fail Safe
Voltage:
12/24 VDC Voltage
Manufacturer:
Schlage
Selling Quantity:
1
Strike Description:
ASA Strike
Parent Manufacturer:
Allegion
Strike Dimensions:
1-1/4" x 4-7/8"
Lever/Knob/Pull Design:
Athens
UPC:
840067616031
Rose/Escutcheon Dimensions (in):
3-7/16"
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Strike Number:
10-025

Warranty Information

1 Year Warranty
