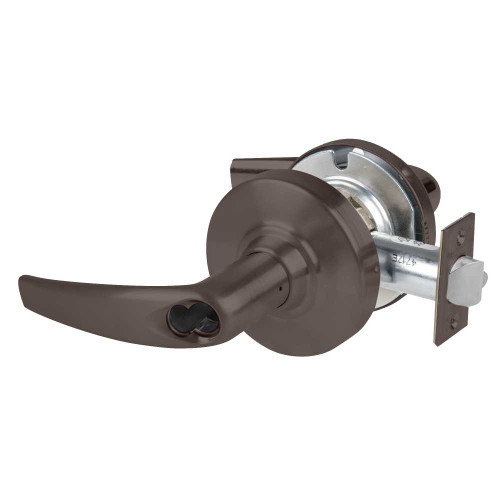

Schlage ND91JD ATH 613 Grade 1 Entrance/Office Lock Athens Lever Schlage FSIC Prep Less Core Oil Rubbed Bronze Finish Non-Handed

Schlage

Write a Review
SKU:
ND91JD ATH 613
$598.66
UPC:
840067618769
$598.66

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Includes Cylinder(s)?:
No
Parent Manufacturer:
Allegion
Cylinder Type:
LFIC Housing
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Box Depth (in):
9-1/2"
Projection (in):
3-5/16"
UPC:
840067618769
Specifications Bullet 8:
3-7/16" Rose
Box Weight (lbs):
5 lbs
Strike Description:
ASA Strike
Fire Rated:
3 Hours {A}
Can Be Keyed:
Yes
Specifications Bullet 5:
1-1/8" X 2-1/4" Dead Latch
Finish:
613/US10B
Finish Description:
Oil Rubbed Bronze
Grade:
Grade 1
Box Height (in):
4-3/4"
Specifications Bullet 7:
3-5/16" Projection
Number of Keys:
2
Option 1:
Vandlguard
Rose/Escutcheon Design:
Not Applicable
Latch Number:
13-247
Specifications Bullet 1:
Grade 1 Office Function Cylindrical Lockset
Keyway:
Less Core
Door Range (Thickness):
1-5/8" - 2-1/8"
Specifications Bullet 9:
For Doors 1-5/8" - 2-1/8" Thick
Latch Dimensions:
1-1/8" X 2-1/4"
Backset (in):
2-3/4"
Latch Throw (in):
1/2"
Specifications Bullet 3:
LFIC Housing Less Core
Country Of Origin:
Mexico
Function:
Office
Interior/Exterior:
Interior/Exterior
Box Width (in):
8-1/4"
Number of Pins:
6
Door Handing:
Non-handed
Commercial Residential:
Commercial
Electronic:
No
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 4:
2-3/4" Backset
Minimum Door Thickness (in):
1-5/8"
Latch Description:
Dead Latch
Maximum Door Thickness (in):
2-1/8"
Lever/Knob/Pull Design:
Athens
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Lever/Knob/Pull:
Lever
Rose/Escutcheon:
Rose
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 12:
10 Year Warranty
Selling Quantity:
1
Specifications Bullet 2:
Athens Lever
ADA:
Yes
Product Warranty:
10 Year Warranty
Strike Number:
10-025
Rose/Escutcheon Dimensions (in):
3-7/16"
Strike Dimensions:
1-1/4" x 4-7/8"
UOM:
1
Manufacturer:
Schlage
Series:
ND Series
Base Material:
Bronze

Warranty Information

10 Year Warranty
