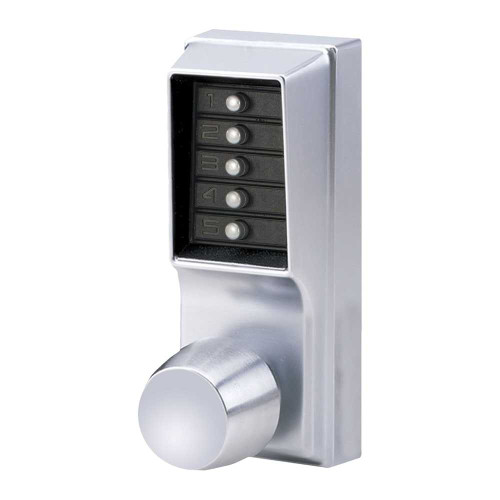

  • Kaba Simplex 1021B-26D-41 Grade 1 Pushbutton Cylindrical Knob Lock Combination Entry Function with Key Override 2-3/4 Backset 1/2 Throw Latch 6/7-Pin SFIC Prep Less Core Satin Chrome Finish Field Reversible

Kaba Simplex 1021B-26D-41 Grade 1 Pushbutton Cylindrical Knob Lock Combination Entry Function with Key Override 2-3/4 Backset 1/2 Throw Latch 6/7-Pin SFIC Prep Less Core Satin Chrome Finish Field Reversible

Kaba Simplex

Write a Review
SKU:
1021B-26D-41
$518.62
Kaba Simplex 1021B-26D-41 Grade 1 Pushbutton Cylindrical Knob Lock Combination Entry Function with Key Override 2-3/4 Backset 1/2 Throw Latch 6/7-Pin SFIC Prep Less Core Satin Chrome Finish Field Reversible
UPC:
810007500010
$518.62

Descriptions

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
TypeTitleURL
catalogSimplex Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/dormakaba/guides/KABA_catalog_simplex.pdf
installation-instructionsKaba Simplex Mechanical Pushbutton Lock - 1000 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/installation_instructions/simplex-1000-installation-instructions-pkg2280.pdf
price-book2024 Simplex Parts Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex-parts_1-2024.pdf
2024 Simplex Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex_1-2024.pdf
specsCSI Specifications for Simplex 1000 Series Pushbutton Lock Solutionshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/specifications/simplex-1000-csi-specifications.pdf
Technical Specifications for Simplex 1000 Series Pushbutton Lockshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/specifications/simplex-1000-specifications-kaa1065.pdf
videoSimplex 1000 / L1000 - How to Reset Unknown Combination - New Style Chamberhttps://youtu.be/J4avWH1mlEc

Specifications

Brand:
Kaba Simplex
Country of Origin:
Mexico
Certification:
BMHA Certified Grade 1, UL Listed
Manufacturer:
DormaKaba
Finish Description:
Satin Chrome
Specifications Bullet 9:
3-13/16" Projection
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 7:
Single Access Code
Base Material:
Brass or Bronze
UPC:
810007500010
Box Width (in):
10-1/2"
Specifications Bullet 4:
2-3/4" Backset
Latch Description:
Dead Latch
Specifications Bullet 6:
Entrance Function
Door Range (Thickness):
1-3/8" - 2-1/4"
Specifications Bullet 12:
1/2" Latch Throw
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 1:
Grade 1 Cylindrical Single Access Code Pushbutton Lockset
Can Be Keyed:
Yes
Keyway:
Less Core
Specifications Bullet 15:
3 Year Warranty
Latch Dimensions:
1-1/8" x 2-1/4"
Latch Bore Diameter (in):
1"
Specifications Bullet 13:
For Doors 1-3/8" - 2-1/4" Thick
Includes Cylinder(s)?:
No
ADA:
No
Cylinder Type:
SFIC Housing
Parent Manufacturer:
DormaKaba
Box Height (in):
5"
Commercial Residential:
Commercial
Lever/Knob/Pull Design:
Standard
Specifications Bullet 2:
Standard Knob
Minimum Door Thickness (in):
1-3/8"
Maximum Door Thickness (in):
2-1/4"
Specifications Bullet 8:
5" Minimum Stile
Backset (in):
2-3/4"
Lever/Knob/Pull:
Knob
Technology:
Single Access Code
Latch Throw (in):
1/2"
Grade:
Grade 1
Finish:
626/US26D
Projection (in):
3-13/16"
Rose/Escutcheon Dimensions (in):
3-1/8" x 8-7/8"
Specifications Bullet 3:
SFIC Housing Less Core
UOM:
1
Specifications Bullet 10:
3-1/8" x 8-7/8" Escutcheon Dimension
Door Handing:
Non-handed
Box Weight (lbs):
9 lbs
Product Width (in):
3-1/8"
Box Depth (in):
11"
Minimum Stile (in):
5"
Function:
Entrance
Product Warranty:
3 Year Warranty
Rose/Escutcheon:
Escutcheon
Specifications Bullet 14:
BMHA Certified Grade 1, UL Listed
Specifications Bullet 11:
1-1/8" x 2-1/4" Dead Latch
Type:
Mechanical Pushbutton
Selling Quantity:
1
Product Height (in):
7-3/8"
Electronic:
No
Strike Dimensions:
1-1/4" x 4-7/8"
User Codes:
1
Strike Description:
ASA Strike
Series:
1000 Series
Uid:
SIM1001021B26D41
Url Title:
1021b-26d-41
Title:
1021B-26D-41
Type:
Integrated and Pushbutton
Sub Type:
Cylindrical Locks with Keypad Trim
Series:
Simplex 1000 Series
Last Modified:
2023-02-28T05:02:41+00:00
Last Pricing:
2022-10-03T00:00:00+00:00
Msrp:
656
Avg Lead Time:
42
Finish Family:
Matte Silver
Popularity:
3
Ul Listing:
ANSI 156.2 Grade 1
Ansi Code:
156.2
Limited Warranty:
3 Years
Fire Rated:
3 Hours {A}
Accessible:
No
Unit Of Measure:
Each
Vendor:
DormaKaba

Warranty Information

3 Year Warranty
