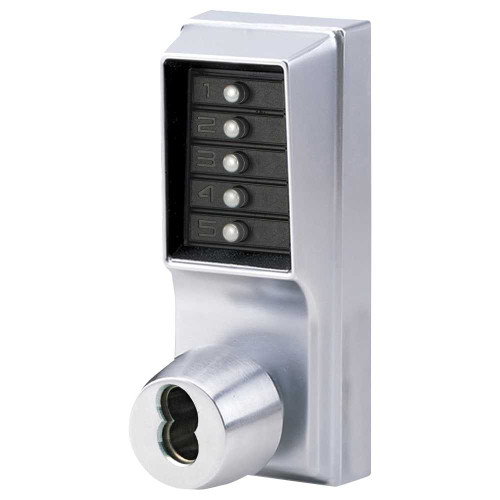

Kaba Simplex 1021R-26D-41 Grade 1 Pushbutton Cylindrical Knob Lock Combination Entry Function with Key Override 2-3/4 Backset 1/2 Throw Latch Sargent LFIC Prep Less Core Satin Chrome Finish Field Reversible

Kaba Simplex

Write a Review
SKU:
1021R-26D-41
$532.14
Kaba Simplex 1021R-26D-41 Grade 1 Pushbutton Cylindrical Knob Lock Combination Entry Function with Key Override 2-3/4 Backset 1/2 Throw Latch Sargent LFIC Prep Less Core Satin Chrome Finish Field Reversible
UPC:
840067621790
$532.14

Descriptions

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
TypeTitleURL
catalogSimplex Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/dormakaba/guides/KABA_catalog_simplex.pdf
installation-instructionsKaba Simplex Mechanical Pushbutton Lock - 1000 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/installation_instructions/simplex-1000-installation-instructions-pkg2280.pdf
price-book2024 Simplex Parts Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex-parts_1-2024.pdf
2024 Simplex Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex_1-2024.pdf
specsCSI Specifications for Simplex 1000 Series Pushbutton Lock Solutionshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/specifications/simplex-1000-csi-specifications.pdf
Technical Specifications for Simplex 1000 Series Pushbutton Lockshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/specifications/simplex-1000-specifications-kaa1065.pdf
videoSimplex 1000 / L1000 - How to Reset Unknown Combination - New Style Chamberhttps://youtu.be/J4avWH1mlEc

Specifications

Brand:
Kaba Simplex
Electronic:
No
Country of Origin:
Mexico
Product Width (in):
3-1/8"
Cylinder Type:
Sargent LFIC Housing
Latch Description:
Dead Latch
Specifications Bullet 4:
2-3/4" Backset
Box Height (in):
5"
Bore Hole Diameter (in):
2-1/8"
Type:
Integrated and Pushbutton
Includes Cylinder(s)?:
No
Door Handing:
Non-handed
Specifications Bullet 1:
Grade 1 Cylindrical Single Access Code Pushbutton Lockset
Box Depth (in):
11"
Keyway:
Less Core
Specifications Bullet 11:
1-1/8" x 2-1/4" Dead Latch
Function:
Entrance
Box Weight (lbs):
9 lbs
Can Be Keyed:
Yes
Specifications Bullet 12:
1/2" Latch Throw
Lever/Knob/Pull:
Knob
Specifications Bullet 6:
Entrance Function
Commercial Residential:
Commercial
Rose/Escutcheon:
Escutcheon
Maximum Door Thickness (in):
2-1/4"
Specifications Bullet 7:
Single Access Code
Grade:
Grade 1
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Lever/Knob/Pull Design:
Standard
Specifications Bullet 8:
5" Minimum Stile
Minimum Door Thickness (in):
1-3/8"
Specifications Bullet 15:
3 Year Warranty
Backset (in):
2-3/4"
Specifications Bullet 14:
BMHA Certified Grade 1, UL Listed
Finish:
626/US26D
Latch Bore Diameter (in):
1"
Product Height (in):
7-3/8"
Latch Throw (in):
1/2"
Projection (in):
3-13/16"
Specifications Bullet 3:
Sargent LFIC Housing Less Core
Certification:
BMHA Certified Grade 1, UL Listed
Specifications Bullet 2:
Standard Knob
Specifications Bullet 9:
3-13/16" Projection
UPC:
840067621790
Rose/Escutcheon Dimensions (in):
3-1/8" x 8-7/8"
Latch Dimensions:
1-1/8" x 2-1/4"
Product Warranty:
3 Year Warranty
Minimum Stile (in):
5"
Box Width (in):
10-1/2"
Finish Description:
Satin Chrome
Specifications Bullet 13:
For Doors 1-3/8" - 2-1/4" Thick
Specifications Bullet 10:
3-1/8" x 8-7/8" Escutcheon Dimension
Door Range (Thickness):
1-3/8" - 2-1/4"
Strike Description:
ASA Strike
ADA:
No
Selling Quantity:
1
Strike Dimensions:
1-1/4" x 4-7/8"
UOM:
1
Technology:
Single Access Code
User Codes:
1
Parent Manufacturer:
DormaKaba
Series:
1000 Series
Base Material:
Brass Bronze
Manufacturer:
Kaba Simplex
Uid:
SIM1001021R26D41
Url Title:
1021r-26d-41
Title:
1021R-26D-41
Sub Type:
Cylindrical Locks with Keypad Trim
Manufacturer:
DormaKaba
Series:
Simplex 1000 Series
Last Modified:
2023-02-28T05:02:41+00:00
Last Pricing:
2022-10-03T00:00:00+00:00
Msrp:
656
Avg Lead Time:
38
Finish Family:
Matte Silver
Popularity:
5
Pack Weight:
7.9
Ul Listing:
ANSI 156.2 Grade 1
Ansi Code:
156.2
Limited Warranty:
3 Years
Fire Rated:
3 Hours {A}
Accessible:
No
Unit Of Measure:
Each
Base Material:
Brass or Bronze
Vendor:
DormaKaba

Warranty Information

3 Year Warranty
