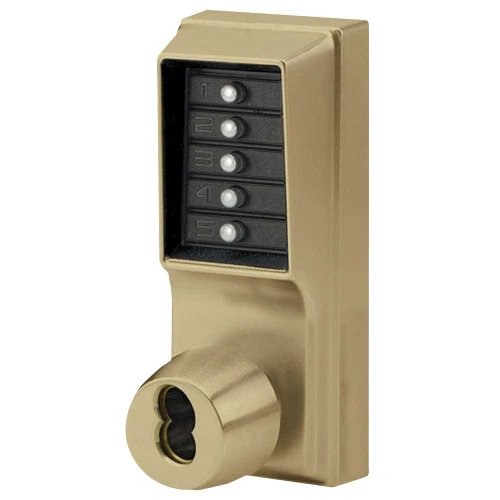

Kaba Simplex 1041M-26D-41 Grade 1 Pushbutton Cylindrical Knob Lock Combination Entry/Passage Functions with Key Override 2-3/4 Backset 1/2 Throw Latch Medeco/Yale/ASSA/Abloy LFIC Prep Less Core Satin Chrome Finish Field Reversible

Kaba Simplex

Write a Review
SKU:
1041M-26D-41
$568.89
Kaba Simplex 1041M-26D-41 Grade 1 Pushbutton Cylindrical Knob Lock Combination Entry/Passage Functions with Key Override 2-3/4 Backset 1/2 Throw Latch Medeco/Yale/ASSA/Abloy LFIC Prep Less Core Satin Chrome Finish Field Reversible
UPC:
840067621875
$568.89

Descriptions

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
TypeTitleURL
catalogSimplex Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/dormakaba/guides/KABA_catalog_simplex.pdf
installation-instructionsKaba Simplex Mechanical Pushbutton Lock - 1000 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/installation_instructions/simplex-1000-installation-instructions-pkg2280.pdf
price-book2024 Simplex Parts Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex-parts_1-2024.pdf
2024 Simplex Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex_1-2024.pdf
specsCSI Specifications for Simplex 1000 Series Pushbutton Lock Solutionshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/specifications/simplex-1000-csi-specifications.pdf
Technical Specifications for Simplex 1000 Series Pushbutton Lockshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/specifications/simplex-1000-specifications-kaa1065.pdf
videoSimplex 1000 / L1000 - How to Reset Unknown Combination - New Style Chamberhttps://youtu.be/J4avWH1mlEc

Specifications

Brand:
Kaba Simplex
Box Width (in):
4-3/4"
Door Range (Thickness):
1-3/8" - 2-1/4"
Parent Manufacturer:
DormaKaba
Latch Bore Diameter (in):
1"
Lever/Knob/Pull:
Knob
Specifications Bullet 3:
Medeco LFIC Housing Less Core
Specifications Bullet 4:
2-3/4" Backset
Box Height (in):
1-1/4"
Backset (in):
2-3/4"
Specifications Bullet 6:
Entrance Function
Bore Hole Diameter (in):
2-1/8"
Box Depth (in):
1-3/4"
Electronic:
No
Finish:
626/US26D
Projection (in):
3-13/16"
Grade:
Grade 1
ADA:
No
Finish Description:
Satin Chrome
Certification:
BMHA Certified Grade 1, UL Listed
Specifications Bullet 2:
Standard Knob
Includes Cylinder(s)?:
No
Commercial Residential:
Commercial
Function:
Entrance
Minimum Stile (in):
5"
Strike Description:
ASA Strike
Door Handing:
Non-handed
Specifications Bullet 1:
Grade 1 Cylindrical Single Access Code Pushbutton Lockset
Base Material:
Brass or Bronze
Country of Origin:
Mexico
Lever/Knob/Pull Design:
Standard
Specifications Bullet 12:
1/2" Latch Throw
Latch Dimensions:
1-1/8" x 2-1/4"
Can Be Keyed:
Yes
Latch Description:
Dead Latch
Cylinder Type:
Medeco LFIC Housing
Box Weight (lbs):
7.9 lbs
Maximum Door Thickness (in):
2-1/4"
Technology:
Single Access Code
Keyway:
Less Core
Type:
Integrated and Pushbutton
Specifications Bullet 10:
3-1/8" x 8-7/8" Escutcheon Dimension
Specifications Bullet 8:
5" Minimum Stile
Specifications Bullet 11:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 9:
3-13/16" Projection
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 7:
Single Access Code
Series:
Simplex 1000 Series
Latch Throw (in):
1/2"
Strike Dimensions:
1-1/4" x 4-7/8"
Specifications Bullet 15:
3 Year Warranty
Specifications Bullet 14:
BMHA Certified Grade 1, UL Listed
Rose/Escutcheon:
Escutcheon
Minimum Door Thickness (in):
1-3/8"
Specifications Bullet 13:
For Doors 1-3/8" - 2-1/4" Thick
UPC:
840067621875
UOM:
1
User Codes:
1
Selling Quantity:
1
Manufacturer:
Kaba Simplex
Product Height (in):
7-3/8"
Rose/Escutcheon Dimensions (in):
3-1/8" x 8-7/8"
Product Width (in):
3-1/8"
Product Warranty:
3 Year Warranty
Uid:
SIM1001041M26D41
Url Title:
1041m-26d-41
Title:
1041M-26D-41
Sub Type:
Cylindrical Locks with Keypad Trim
Manufacturer:
DormaKaba
Last Modified:
2023-02-28T05:02:41+00:00
Last Pricing:
2022-10-03T00:00:00+00:00
Msrp:
706
Avg Lead Time:
43
Finish Family:
Matte Silver
Popularity:
6
Pack Weight:
7.9
Ul Listing:
ANSI 156.2 Grade 1
Ansi Code:
156.2
Limited Warranty:
3 Years
Fire Rated:
3 Hours {A}
Accessible:
No
Unit Of Measure:
Each
Vendor:
DormaKaba

Warranty Information

3 Year Warranty
