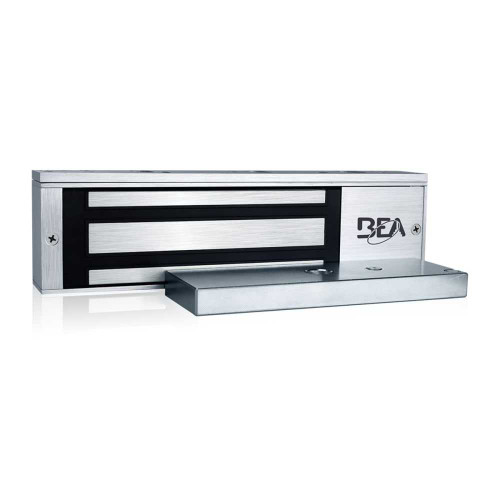

BEA 10MAGLOCK1ULDS Single Electromagnetic Surface Mount Lock UL / ULC Listed LED Status Lock Status Sensor / Door Status Sensor 0 to 90 S Hold Open Timer Relock 12 / 24 VDC UL Listed Power Supply Required 1200 Lb

BEA

Write a Review
SKU:
10MAGLOCK1ULDS
$187.48
BEA 10MAGLOCK1ULDS Single Electromagnetic Surface Mount Lock UL / ULC Listed LED Status Lock Status Sensor / Door Status Sensor 0 to 90 S Hold Open Timer Relock 12 / 24 VDC UL Listed Power Supply Required 1200 Lb
UPC:
840067656006
$187.48

Descriptions

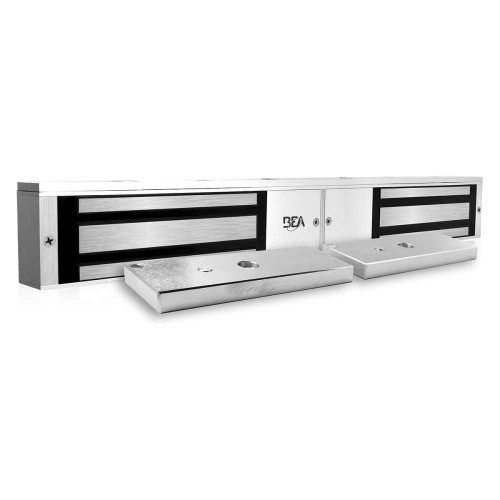

BEA's UL LISTED MAGLOCKS Provide a Standards Compliant Locking Solution for Retail, Healthcare, Banking and Other High Security Facilities That Require UL listed Security Products. Maglocks can be Used on Hollow Metal, Wood, Aluminum, Glass and Composite Door Materials. The UL LISTED MAGLOCKS are Available in Surface Mount Single or Double Door Configurations, With Holding Force of 600 or 1200 Lbs. These Locks Include Adjustable Zero to 90 Second Relock Time Delay and a Lock Status Sensor With Visible LED.
TypeTitleURL
catalog2022 BEA Cataloghttps://dvwi9lnoau63q.cloudfront.net/bea/catalog/BEA_catalog_2022.pdf
cut-sheetBEA UL MAGLOCKS with DS Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/bea/cutsheet/BEA_cutsheet_10MAGLOCK3ULDS.pdf
literatureBEA Application Note for 10MAGLOCKhttps://dvwi9lnoau63q.cloudfront.net/bea/literature/BEA_appnotes_10MAGLOCK3ULDS.pdf
price-books2022 BEA Price Bookhttps://dvwi9lnoau63q.cloudfront.net/bea/pricebooks/BEA_pricebook_2022.pdf
user-guideBEA UL MAGLOCK User Guidehttps://dvwi9lnoau63q.cloudfront.net/bea/userguide/BEA_userguide_maglocks.pdf

Specifications

Brand:
BEA
FS/FSE Mode:
Fail Safe
Fire Rated:
No
Dimensions:
9-27/32" x 1-21/32" x 1"
Specifications Bullet 3:
12/24 VDC Voltage
Parent Manufacturer:
BEA Americas
Door Range (Thickness):
-
Option 2:
Relock Time Delay
Function:
Single Door
Specifications Bullet 4:
Fail Safe
Finish:
US28
Grade:
Grade 1
Country of Origin:
Taiwan
Base Material:
Aluminum
Specifications Bullet 1:
Single Door Electromagnetic Lock
Option 1:
Door Status Sensor
Specifications Bullet 5:
500/300mA @ 12/24 VDC Current
Specifications Bullet 2:
1200 lbs Holding Force
Specifications Bullet 11:
UL Listed, UL 294
Current Draw:
500/300mA @ 12/24 VDC Current
Specifications Bullet 7:
Relock Time Delay
Screw Pack:
Machine Screws
Option 3:
Bond Sensor
Specifications Bullet 6:
Door Status Sensor
Holding Force (lbs):
1200
Specifications Bullet 12:
Limited Warranty
Finish Description:
Aluminum
Specifications Bullet 9:
9-27/32" x 1-21/32" x 1" Unit Dimension
Specifications Bullet 8:
Bond Sensor
Interior/Exterior:
Interior/Exterior
Selling Quantity:
1
Specifications Bullet 10:
Includes Machine Screws
Door Handing:
Non-handed
Product Warranty:
Limited Warranty
Voltage:
12/24 VDC Voltage
Electronic:
Yes
Type:
Electric Strikes, Bolts, Magnets
UPC:
840067656006
Series:
BEA Magnetic Locks
Commercial Residential:
Commercial
User Codes:
0
Certification:
UL Listed, UL 294
Manufacturer:
BEA
UOM:
1
Uid:
BEA10010MAGLOCK1ULDS
Url Title:
10maglock1ulds
Title:
10MAGLOCK1ULDS BEA Maglock
Sub Type:
Maglocks
Last Modified:
2024-02-03T05:01:53+00:00
Last Pricing:
2023-07-05T00:00:00+00:00
Msrp:
391.68
Avg Lead Time:
7
Popularity:
9
Restrictions:
No
Baa Qualified:
No
Accessible:
Yes
Unit Of Measure:
EACH
Vendor:
BEA

Warranty Information

Limited Warranty
