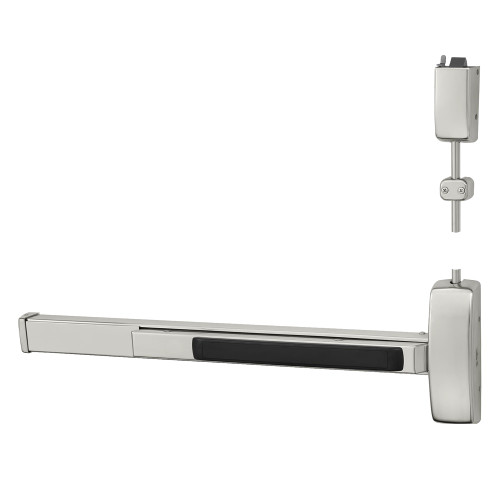

  • Sargent 12-NB8715F RHR 32D Grade 1 Surface Vertical Rod Exit Device Wide Stile Pushpad 36 Fire-Rated Device 84 Door Height Passage Function Less Bottom Rod Less Dogging Satin Stainless Steel Finish Right Hand Reverse

Sargent 12-NB8715F RHR 32D Grade 1 Surface Vertical Rod Exit Device Wide Stile Pushpad 36 Fire-Rated Device 84 Door Height Passage Function Less Bottom Rod Less Dogging Satin Stainless Steel Finish Right Hand Reverse

Sargent

Write a Review
SKU:
12-NB8715F RHR 32D
$2,165.38
Sargent 12-NB8715F RHR 32D Grade 1 Surface Vertical Rod Exit Device Wide Stile Pushpad 36 Fire-Rated Device 84 Door Height Passage Function Less Bottom Rod Less Dogging Satin Stainless Steel Finish Right Hand Reverse
$2,165.38

Descriptions

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
TypeTitleURL
catalog80 Series Exit Device Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SAR_catalog_80-series_9-2022.pdf
installation-instructionsNB8700 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/SAR_instructions_8700nb-series.pdf
parts-manual80 Series Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80_Series_Parts_Manual.pdf

Specifications

Brand:
Sargent
Backset (in):
2-3/4"
Base Material:
Stainless Steel
Box Width (in):
36"
Center Case Dimensions:
2-5/8" x 8-5/16"
Country Of Origin:
USA
Series:
NB8700 Series Surface Vertical Rod Exit Devices
Commercial Residential:
Commercial
Certification:
ANSI A156.3, Grade 1, UL Listed
Manufacturer:
Sargent
Parent Manufacturer:
Assa Abloy
Dogging Option:
No
Cylinder Type:
Keyless
Door Width Maximum (in):
36"
Electronic:
No
Door Width Minimum (in):
33"
Door Height (in):
84"
Door Handing:
Right Hand Reverse
Dogging Type:
Not Applicable
Door Range (Thickness):
1-3/4" - 2-1/4"
Door Material:
Metal
Fire Rated:
3 Hours {A}
Grade:
Grade 1
Keyway:
Not Applicable
Includes Cylinder(s)?:
No
End Cap Material:
Metal
Finish Description:
Satin Stainless Steel
Latch Throw (in):
3/4"
Finish:
630/US32D
Latch Description:
Top - Bottom Latchbolts
Function:
Passage
Specifications Bullet 8:
For Metal Doors
Specifications Bullet 1:
Fire Rated Surface Vertical Rod Exit Device, Passage
Specifications Bullet 10:
3/4" Top - Bottom Latchbolts
Specifications Bullet 2:
(NB) Less Bottom Rod
Specifications Bullet 3:
4-1/2" Minimum Stile
Specifications Bullet 6:
For Doors 33" - 36" Wide
Specifications Bullet 5:
2-5/8" x 8-5/16" Center Case Dimension
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 9:
3" Full Extension
Specifications Bullet 7:
For Doors 1-3/4" - 2-1/4" Thick
Minimum Stile (in):
4-1/2"
Specifications Bullet 12:
Includes Machine Screws, Fasteners
Specifications Bullet 11:
Metal End Cap
Specifications Bullet 14:
5 Year Warranty
Specifications Bullet 13:
ANSI A156.3, Grade 1, UL Listed
Minimum Door Thickness (in):
1-3/4"
Maximum Door Thickness (in):
2-1/4"
Product Warranty:
5 Year Warranty
Option 1:
(NB) Less Bottom Rod
Projection (in):
3"
Strike Description:
Solid Catch Strike
Screw Pack:
Machine Screws, Fasteners
Strike Number:
646
Type:
Surface Vertical Rod Exit Device
UOM:
1
Selling Quantity:
1
Uid:
SAR10012NB8715FRHR32D
Url Title:
12-nb8715f-rhr-32d
Title:
12-NB8715F RHR 32D Sargent Exit Device
Type:
Exit Devices
Sub Type:
Surface Vertical Rod Exit Devices
Last Modified:
2023-02-13T05:50:42+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
3201
Avg Lead Time:
14
Finish Family:
Matte Silver
Popularity:
8
Pack Weight:
15
Pack Length:
38
Pack Width:
7.5
Pack Height:
6
Pack Volume:
1710
Ul Listing:
UL10C & UL305
Ansi Code:
ANSI/BHMA A156.3
Restrictions:
None
Baa Qualified:
Yes
Limited Warranty:
5 Years
Accessible:
No
Unit Of Measure:
Each
Vendor:
Assa Abloy
Assembly Item:
1

Warranty Information

5 Year Warranty
