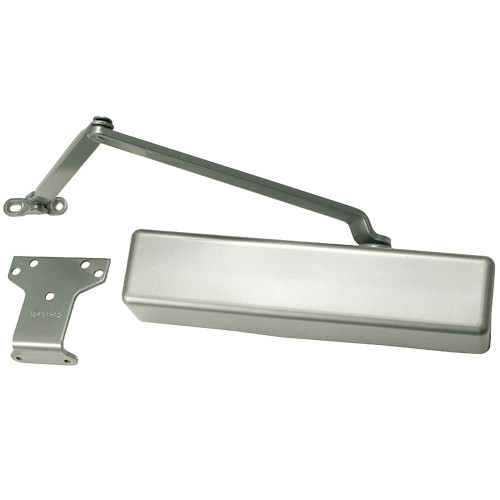

LCN 1461-RW/PA 689 Grade 1 Tri Mount Surface Closer Push or Pull Side Double Lever Arm Regular Slim Plastic Cover 180 Deg Swing With Parallel Arm Bracket Aluminum Painted Finish Non-Handed

LCN

Write a Review
SKU:
1461-RW/PA 689
$302.23
LCN 1461-RW/PA 689 Grade 1 Tri Mount Surface Closer Push or Pull Side Double Lever Arm Regular Slim Plastic Cover 180 Deg Swing With Parallel Arm Bracket Aluminum Painted Finish Non-Handed
UPC:
840067623510
$302.23

Descriptions

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.
TypeTitleURL
brochure/sales-materialLCN Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/lcn/miscellaneous/ALLEGION_finish-chart.pdf
catalog1000 Series Cataloghttps://dvwi9lnoau63q.cloudfront.net/lcn/catalog/LCN_1000_Series_Surface_Mounted_Closers_Catalog_Section_109508_1.pdf
cut-sheet1460 Series Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/lcn/cutsheets/LCN_cutsheet_1460-series.pdf
installation-guideLCN 1460 Drop Plate Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN1460DropPlateInstallationInstructions.pdf
LCN 1461 EDA Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN1461EDAInstallationInstructions.pdf
LCN 1461 PA Mount Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN1461PAMountInstallationInstructions.pdf
LCN 1461 Peel-N-Stick Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN1461Peel-N-StickInstallationInstructions.pdf
LCN Closers & Auto Operators Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN_Closers_and_Auto_Operators_Templates_and_Instructions_Index_111819.pdf
Video: LCN 1460 Door Closer Installationhttps://youtu.be/vCRHBX1DO84
parts-manualLCN Closers & Automatic Operators Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/lcn/product-guide/LCN_partsmanual_closers-auto-operators.pdf
product-guideLCN 1000 Series Product Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/product-guide/LCN1000SeriesSurfaceMountCloserProductSelectionGuide.pdf
LCN 1000 Series Surface Mounted Closers Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/product-guide/LCN_1000_Series_Surface_Mounted_Closers_Catalog_Section_109508.pdf
LCN 1460 Product Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/product-guide/LCN1460ProductGuide.pdf
LCN 1461 Product Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/product-guide/LCN_1461_Series_0114.pdf

Specifications

Brand:
LCN
Specifications Bullet 2:
Regular Arm with 62PA Shoe
Hold Open Type:
Not Applicable
Box Height (in):
6"
Specifications Bullet 7:
Plastic Slim Profile Cover
Body Base Material:
Cast Iron
Commercial Residential:
Commercial
Finish Description:
Aluminum Painted
Product Warranty:
30 Year Warranty
Specifications Bullet 11:
ANSI A156.4, Grade 1, UL 10C, ADA
Electronic:
No
Country of Origin:
United States
Specifications Bullet 6:
180 Degree Swing
Grade:
Grade 1
Certification:
ANSI A156.4, Grade 1, UL 10C, ADA
Box Width (in):
4-1/2"
Cover Type:
Slim Profile Cover
Closing Speed Adjustment:
Yes
Specifications Bullet 9:
1-1/4" Piston Diameter
Cover Material:
Plastic
Specifications Bullet 10:
Includes Self-Reaming Tapping Screws
Box Weight (lbs):
11 lbs
Hold Open:
No
Finish:
689/US28
Door Handing:
Non-handed
Mount:
Tri Mount
Latch Speed Adjustment:
Yes
Advanced Backcheck:
No
Fire Rated:
Yes
Specifications Bullet 4:
Tri Mount
Specifications Bullet 1:
Grade 1 Surface Door Closer
Maximum Door Weight (lbs):
225 lbs Maximum Door Weight
Specifications Bullet 5:
Non-handed
Type:
Door Closers and Operators
Specifications Bullet 12:
30 Year Warranty
Manufacturer:
LCN
Specifications Bullet 8:
Cast Iron Body
Piston Diameter (in):
1-1/4"
Door Range (Thickness):
-
Degree Swing:
180 Degree Swing
Screw Pack:
Self-Reaming Tapping Screws
Specifications Bullet 3:
Size 1-6
UPC:
840067623510
Selling Quantity:
1
Screw Pack Designation:
SRT
Backcheck:
Yes
UOM:
1
All Weather Fluid:
Yes
Base Material:
Varies
Box Depth (in):
16"
Series:
1460 Series Surface Mounted Closers
Size:
Size 1-6
ADA:
Yes
Arm Type:
Regular Arm with 62PA Shoe
Parent Manufacturer:
Allegion
Uid:
LCN1001461RWPAAL
Url Title:
1461-rw-pa-689
Title:
1461-RW/PA 689 LCN Surface Closers
Sub Type:
Surface Closers
Last Modified:
2023-02-28T05:07:21+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
494
Avg Lead Time:
22
Finish Family:
Matte Silver
Popularity:
2
Pack Weight:
11
Baa Qualified:
Yes
Limited Warranty:
30 Years
Unit Of Measure:
Each
Vendor:
Allegion

Warranty Information

30 Year Warranty
