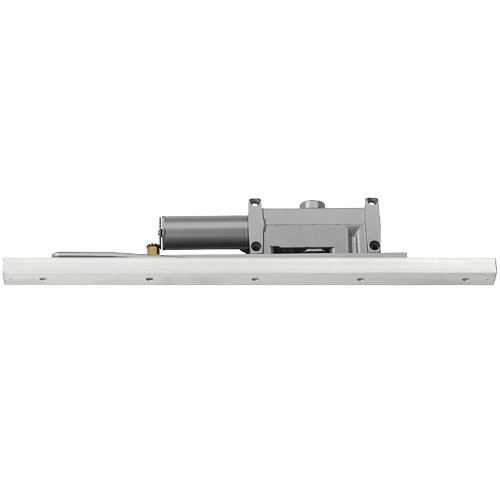

LCN 2011-STD LH 689 Standard Track Door Closer Left Hand Aluminum

LCN

Write a Review
SKU:
2011-STD LH 689
$693.84
LCN 2011-STD LH 689 Standard Track Door Closer Left Hand Aluminum
UPC:
840067659076
$693.84

Descriptions

The 2010 Series is a heavy duty concealed door closer designed to provide complete concealment. The single lever arm and roller assembly provide smooth, quiet door control. The 2010 Series features a cast iron body with all weather fluid. Designed to be concealed in the fram, it requires a minimum 4 In. x 4 In. tube.
TypeTitleURL
brochure/sales-materialLCN Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/lcn/miscellaneous/ALLEGION_finish-chart.pdf
catalogLCN Concealed Closers Cataloghttps://dvwi9lnoau63q.cloudfront.net/lcn/catalog/LCN_Concealed_Closers_Catalog_Section_109511.pdf
cross-reference-sheetOverhead Concealed Closer Cross-Reference Sheethttps://dvwi9lnoau63q.cloudfront.net/lcn/user-guide/web_Rix_OverheadConcealedCloserCrossReference_Instr_hi.pdf
installation-guideLCN 2010 Series Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN2010installationguide.pdf
LCN Closers & Auto Operators Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN_Closers_and_Auto_Operators_Templates_and_Instructions_Index_111819.pdf
product-guideLCN Concealed Closer Series Product Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/product-guide/LCNConcealedcloserproductguide.pdf

Specifications

Brand:
LCN
Specifications Bullet 5:
Left Hand
ADA:
Yes
Cover Material:
Not Applicable
Arm Type:
Standard Arm
Specifications Bullet 1:
Grade 1 Concealed Door Closer
Hold Open:
No
Screw Pack Designation:
WMS
Door Range (Thickness):
-
Body Base Material:
Cast Iron
Product Warranty:
15 Year Limited Warranty
Base Material:
VARIES
Certification:
ANSI A156.4, Grade 1, UL 10C, ADA
Specifications Bullet 3:
Size 1-6
Specifications Bullet 4:
Frame Mount
Finish Description:
Aluminum Painted
Commercial Residential:
Commercial
Fire Rated:
Yes
Specifications Bullet 9:
Includes Wood/Machine Screws
Specifications Bullet 2:
Standard Arm
Grade:
Grade 1
Door Handing:
Left Hand
Cover Type:
Not Applicable
Specifications Bullet 10:
ANSI A156.4, Grade 1, UL 10C, ADA
Maximum Door Weight (lbs):
225 lbs Maximum Door Weight
Interior/Exterior:
Interior/Exterior
Latch Speed Adjustment:
Yes
Electronic:
No
Specifications Bullet 7:
Cast Iron Body
Mount:
Frame Mount
Specifications Bullet 8:
1-1/2" Piston Diameter
Country of Origin:
United States
Series:
2010 Series Concealed Closers
Finish:
689/US28
Hold Open Type:
Not Applicable
Specifications Bullet 6:
180 Degree Swing
Size:
Size 1-6
UOM:
1
Backcheck:
Yes
Type:
Door Closers and Operators
Piston Diameter (in):
1-1/2"
Screw Pack:
Wood/Machine Screws
UPC:
840067659076
Closing Speed Adjustment:
Yes
Selling Quantity:
1
Degree Swing:
180 Degree Swing
Manufacturer:
LCN
Specifications Bullet 11:
15 Year Limited Warranty
All Weather Fluid:
Yes
Parent Manufacturer:
Allegion
Advanced Backcheck:
No
Uid:
LCN1002011STDLHAL
Url Title:
2011-std-lh-al
Title:
2011-STD LH AL LCN Concealed-in-Door Closers
Sub Type:
Concealed-in-Door Closers
Last Modified:
2023-02-28T05:07:19+00:00
Last Pricing:
2022-06-24T00:00:00+00:00
Msrp:
841
Avg Lead Time:
26
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
13
Baa Qualified:
Yes
Limited Warranty:
15 Years
Unit Of Measure:
Each
Vendor:
Allegion

Warranty Information

15 Year Limited Warranty
