  • LCN 2031-STD LH 689 Grade 1 Standard Single Lever Overhead Concealed Closer Hydraulic Slide Track In Header Mounting Slide Track Arm 180 Deg Swing Adjustable Backcheck Size 1 Aluminum Painted Finish Left-Handed

LCN 2031-STD LH 689 Grade 1 Standard Single Lever Overhead Concealed Closer Hydraulic Slide Track In Header Mounting Slide Track Arm 180 Deg Swing Adjustable Backcheck Size 1 Aluminum Painted Finish Left-Handed

LCN

Write a Review
SKU:
2031-STD LH 689
$1,154.69
LCN 2031-STD LH 689 Grade 1 Standard Single Lever Overhead Concealed Closer Hydraulic Slide Track In Header Mounting Slide Track Arm 180 Deg Swing Adjustable Backcheck Size 1 Aluminum Painted Finish Left-Handed
UPC:
840067659977
$1,154.69

Descriptions

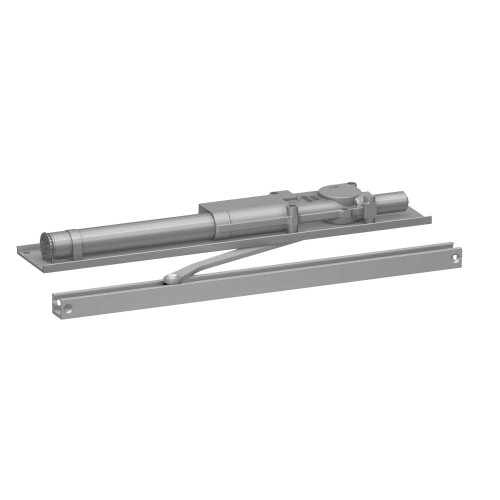

The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4" Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.
TypeTitleURL
brochure/sales-materialLCN Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/lcn/miscellaneous/ALLEGION_finish-chart.pdf
catalogLCN Concealed Closers Cataloghttps://dvwi9lnoau63q.cloudfront.net/lcn/catalog/LCN_Concealed_Closers_Catalog_Section_109511.pdf
cross-reference-sheetOverhead Concealed Closer Cross-Reference Sheethttps://dvwi9lnoau63q.cloudfront.net/lcn/user-guide/web_Rix_OverheadConcealedCloserCrossReference_Instr_hi.pdf
installation-guideLCN Closers & Auto Operators Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN_Closers_and_Auto_Operators_Templates_and_Instructions_Index_111819.pdf
installation-instructionsLCN 2030 Series Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN_installinstruct_series2030.pdf
parts-manualLCN Closers & Automatic Operators Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/lcn/product-guide/LCN_partsmanual_closers-auto-operators.pdf
product-guideLCN Concealed Closer Series Product Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/product-guide/LCNConcealedcloserproductguide.pdf

Specifications

Brand:
LCN
Cover Material:
Not Applicable
Backcheck:
Yes
All Weather Fluid:
Yes
Manufacturer:
LCN
Finish Description:
Aluminum Painted
Arm Type:
Standard Arm
Finish:
689/US28
Closing Speed Adjustment:
Yes
Certification:
ANSI A156.4, Grade 1, UL 10C, ADA
Advanced Backcheck:
No
Door Range (Thickness):
-
Latch Speed Adjustment:
Yes
Base Material:
VARIES
Electronic:
No
Degree Swing:
180 Degree Swing
Hold Open Type:
Not Applicable
Maximum Door Weight (lbs):
225 lbs Maximum Door Weight
Specifications Bullet 3:
Size 1-5
Specifications Bullet 4:
Frame Mount
Commercial Residential:
Commercial
Parent Manufacturer:
Allegion
Specifications Bullet 8:
1-1/8" Piston Diameter
Hold Open:
No
Mount:
Frame Mount
Specifications Bullet 1:
Grade 1 Concealed Door Closer
Specifications Bullet 10:
ANSI A156.4, Grade 1, UL 10C, ADA
Specifications Bullet 7:
Cast Iron Body
Specifications Bullet 9:
Includes Wood/Machine Screws
Product Warranty:
15 Year Limited Warranty
ADA:
Yes
Interior/Exterior:
Interior/Exterior
Grade:
Grade 1
Specifications Bullet 11:
15 Year Limited Warranty
Specifications Bullet 2:
Standard Arm
Cover Type:
Not Applicable
Specifications Bullet 6:
180 Degree Swing
Series:
2030 Series Concealed Closers
Body Base Material:
Cast Iron
UPC:
840067659977
Door Handing:
Left Hand
Country of Origin:
United States
Type:
Door Closers and Operators
UOM:
1
Selling Quantity:
1
Fire Rated:
Yes
Screw Pack:
Wood/Machine Screws
Size:
Size 1-5
Specifications Bullet 5:
Left Hand
Piston Diameter (in):
1-1/8"
Screw Pack Designation:
WMS
Uid:
LCN1002031STDLHAL
Url Title:
2031-std-lh-al
Title:
2031-STD LH AL LCN Concealed-in-Door Closers
Sub Type:
Concealed-in-Door Closers
Last Modified:
2023-02-28T05:07:19+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1511
Avg Lead Time:
18
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
14
Baa Qualified:
Yes
Limited Warranty:
15 Years
Unit Of Measure:
Each
Vendor:
Allegion

Warranty Information

15 Year Limited Warranty
