  • LCN 2215-STD RH 689 Standard Track Door Closer Right Hand Aluminum

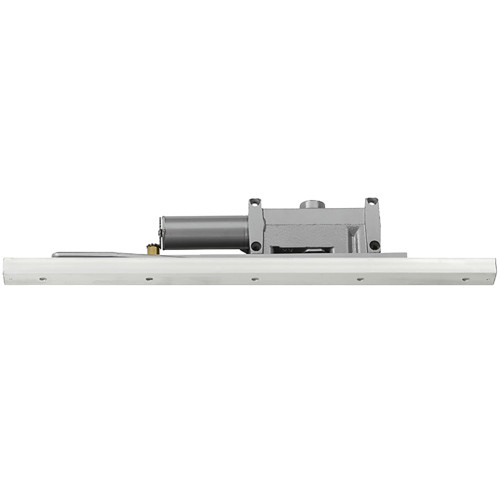

LCN 2215-STD RH 689 Standard Track Door Closer Right Hand Aluminum

LCN

Write a Review
SKU:
2215-STD RH 689
$965.06
LCN 2215-STD RH 689 Standard Track Door Closer Right Hand Aluminum
UPC:
840067658536
$965.06

Descriptions

The 2210 Series is a concealed heavy duty, high security track door closer featuring complete concealment wit special components to minimize tampering and vandalism. Forged steel single lever arm and heavy steel mounting plate are designed for correctional, vandal prone, institutional and other high traffic applications.
TypeTitleURL
brochure/sales-materialLCN Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/lcn/miscellaneous/ALLEGION_finish-chart.pdf
catalogLCN High Security Series Cataloghttps://dvwi9lnoau63q.cloudfront.net/lcn/catalog/LCN_High_Security_Closers_Catalog_Section_109515.pdf
installation-guideLCN 2210 Series Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN2210SeriesInstallationInstructions.pdf
LCN 2210DPS Series Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN2210DPSSeriesInstallationInstructions.pdf
LCN Closers & Auto Operators Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN_Closers_and_Auto_Operators_Templates_and_Instructions_Index_111819.pdf
product-guideLCN High Security Door Closer Series Product Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/product-guide/LCNHighSecurityDoorcloserSeriesProductGuide.pdf

Specifications

Brand:
LCN
Arm Type:
Standard Arm
Certification:
ANSI A156.4, Grade 1, UL 10C, ADA
Screw Pack Designation:
TORX
Series:
2210 Series High Security Closers
Hold Open Type:
Not Applicable
Base Material:
VARIES
Screw Pack:
TORX Machine Screws
Body Base Material:
Cast Iron
Country of Origin:
United States
Specifications Bullet 9:
Includes TORX Machine Screws
Cover Material:
Not Applicable
Product Warranty:
15 Year Limited Warranty
Cover Type:
Not Applicable
Specifications Bullet 8:
1-1/2" Piston Diameter
UPC:
840067658536
Closing Speed Adjustment:
Yes
Manufacturer:
LCN
Type:
Door Closers and Operators
Selling Quantity:
1
Specifications Bullet 5:
Right Hand
Interior/Exterior:
Interior/Exterior
Latch Speed Adjustment:
Yes
Specifications Bullet 7:
Cast Iron Body
Hold Open:
No
Size:
Size 5
Specifications Bullet 10:
ANSI A156.4, Grade 1, UL 10C, ADA
Door Handing:
Right Hand
Degree Swing:
180 Degree Swing
Electronic:
No
Mount:
Frame Mount
Specifications Bullet 4:
Frame Mount
Commercial Residential:
Commercial
All Weather Fluid:
Yes
Finish Description:
Aluminum Painted
Parent Manufacturer:
Allegion
Advanced Backcheck:
No
Fire Rated:
Yes
ADA:
Yes
Specifications Bullet 2:
Standard Arm
Specifications Bullet 3:
Size 5
Door Range (Thickness):
-
UOM:
1
Specifications Bullet 1:
Grade 1 Concealed Door Closer
Piston Diameter (in):
1-1/2"
Maximum Door Weight (lbs):
225 lbs Maximum Door Weight
Specifications Bullet 11:
15 Year Limited Warranty
Finish:
689/US28
Backcheck:
Yes
Specifications Bullet 6:
180 Degree Swing
Grade:
Grade 1
Uid:
LCN1002215STDRHAL
Url Title:
2215-std-rh-al
Title:
2215-STD RH AL LCN Concealed-in-Door Closers
Sub Type:
Concealed-in-Door Closers
Last Modified:
2023-02-26T05:07:30+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1263
Avg Lead Time:
32
Finish Family:
Matte Silver
Popularity:
3
Baa Qualified:
Yes
Limited Warranty:
15 Years
Unit Of Measure:
Each
Vendor:
Allegion

Warranty Information

15 Year Limited Warranty
