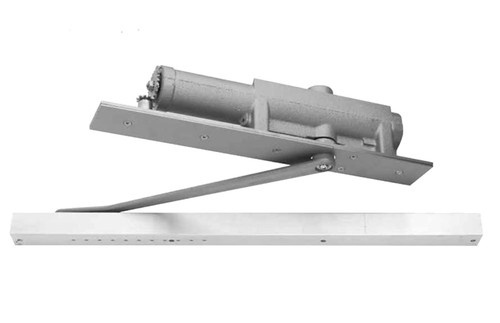

Sargent 268-CSPS EN RH Overhead Concealed Security Package Door Closer Single Pole Double Throw Door Position Switch Right Hand Sprayed Aluminum Enamel

Sargent

Write a Review
SKU:
268-CSPS EN RH
$947.12
Sargent 268-CSPS EN RH Overhead Concealed Security Package Door Closer Single Pole Double Throw Door Position Switch Right Hand Sprayed Aluminum Enamel
$947.12

Descriptions

The 268 Series is a complete line of overhead concealed closers for interior and exterior doors with quality and flexibility to meet virtually every application. When security is required, the concealed design of the 268 Series Closer provides a high degree of resistance to abuse. The arm, trach and closer are completely concealed when the door is closed.
TypeTitleURL
catalog268/269/278 Series Concealed Door Closers Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/web_90118_SAR_268269278_Cat_lo.pdf
cross-reference-sheetOverhead Concealed Closer Cross-Reference Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/crossreference/web_Rix_OverheadConcealedCloserCrossReference_Instr_hi.pdf
installation-instructions268 Series Concealed Door Closers (w/ 'CSP' Concealed Security Package) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7325B_low_res.pdf
268 Series Concealed Door Closers Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7320B_Sargent_268_Powerglide_Series_12162008.pdf
268/269 Series Concealed Door Closers (w/ 'CSPS/CSPD' Door Position) Installation Instructionhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7326C.pdf
parts-list268/269 Case Assembly Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/268_PAGES_1-5.pdf
268/269 O Arm Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/268_PAGES_6-9.pdf
268/269 Security Arm Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/268_269_Page_10_Parts_List.pdf

Specifications

Brand:
Sargent
Parent Manufacturer:
Assa Abloy
Series:
268 Series Door Closers
Manufacturer:
Sargent
Advanced Backcheck:
No
ADA:
Yes
All Weather Fluid:
Yes
Base Material:
VARIES
Arm Type:
Security Track Arm
Body Base Material:
Cast Iron
Backcheck:
Yes
Cover Material:
Not Applicable
Commercial Residential:
Commercial
Certification:
ANSI A156.4, Grade 1, UL Listed
Closing Speed Adjustment:
Yes
Country of Origin:
United States
Door Range (Thickness):
-
Cover Type:
Not Applicable
Door Handing:
Right Hand
Electronic:
Yes
Degree Swing:
180 Degree Swing
Finish Description:
Aluminum Painted
Hold Open:
No
Finish:
689/US28
Fire Rated:
3 Hours {A}
Grade:
Grade 1
Latch Speed Adjustment:
Yes
Specifications Bullet 1:
Grade 1 Concealed Door Closer
Hold Open Type:
Not Applicable
Interior/Exterior:
Interior/Exterior
Specifications Bullet 2:
Security Track Arm
Specifications Bullet 4:
Frame Mount
Specifications Bullet 3:
Size 2-4
Specifications Bullet 5:
Right Hand
Specifications Bullet 7:
Cast Iron Body
Specifications Bullet 6:
180 Degree Swing
Maximum Door Weight (lbs):
225 lbs Maximum Door Weight
Specifications Bullet 9:
Includes Tamper-Resistant Security Screws
Specifications Bullet 8:
1-1/2" Piston Diameter
Specifications Bullet 10:
ANSI A156.4, Grade 1, UL Listed
Specifications Bullet 11:
10 Year Warranty
Option 1:
(DPS) Door Position Switch
Screw Pack:
Tamper-Resistant Security Screws
Mount:
Frame Mount
Product Warranty:
10 Year Warranty
Piston Diameter (in):
1-1/2"
Selling Quantity:
1
Size:
Size 2-4
UOM:
1
Type:
Door Closers and Operators
Uid:
SAR100268CSPSENRH
Url Title:
268-csps-en-rh
Title:
268-CSPS EN RH Sargent Concealed Overhead Closers
Sub Type:
Concealed Overhead Closers
Last Modified:
2022-09-23T05:14:55+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1312
Avg Lead Time:
38
Finish Family:
Matte Silver
Popularity:
8
Pack Weight:
14.7
Pack Length:
23.75
Pack Width:
5.25
Pack Height:
5.75
Pack Volume:
716.953125
Limited Warranty:
10 Years
Unit Of Measure:
Each
Vendor:
Assa Abloy

Warranty Information

10 Year Warranty
