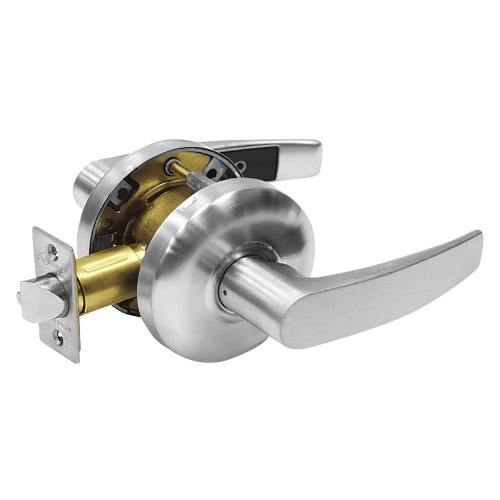

Sargent 28-65U15 KB 26D Grade 2 Passage Cylindrical Lock B Lever Non-Keyed Satin Chrome Finish Non-handed

Sargent

Write a Review
SKU:
28-65U15 KB 26D
$177.62
Sargent 28-65U15 KB 26D Grade 2 Passage Cylindrical Lock B Lever Non-Keyed Satin Chrome Finish Non-handed
UPC:
810007500164
$177.62

Descriptions

The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.
TypeTitleURL
brochure/sales-materialSargent Bored Lock Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/SAR_Tzone_Generic_Brochure.pdf
catalog6500 Series Cylindrical Lever Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/sargent6500catalog.pdf
installation-instructions6500 Line Single & Double Lever Pull Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6913E.pdf
Removal & Insertion of Sargent Plastic Construction Plugs for 6500 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7001A_5.09.pdf
sell-sheetHurricane Resistant Bored Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/Windstorm_Bored.pdf
template6500 Line (All Functions and Prefixes) Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/SARGENT_Bored_Lock_6500_Line_All_Functions_and_Prefixes_Template.pdf
800 Strike Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/SARGENT_T-Zone_800_Strike_Template.pdf
808 Strike for ANSI A115.2 - 28 Prefix Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/4049.pdf

Specifications

Brand:
Sargent
Latch Description:
Spring Latch
Latch Throw (in):
1/2"
Latch Dimensions:
1-1/8" x 2-1/4"
Cylinder Type:
Keyless
Bore Hole Diameter (in):
2-1/8"
Door Range (Thickness):
1-3/8" - 1-3/4"
Specifications Bullet 11:
Limited Warranty
Finish Description:
Satin Chrome
Door Handing:
Non-handed
Latch Number:
05-2185
Specifications Bullet 8:
For Doors 1-3/8" - 1-3/4" Thick
Function:
Passage
Projection (in):
2-3/8"
Specifications Bullet 2:
L Lever
Keyway:
Not Applicable
Minimum Door Thickness (in):
1-3/8"
Specifications Bullet 10:
ANSI A156.2, Series 4000, Grade 2
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 3:
2-3/4" Backset
Parent Manufacturer:
Assa Abloy
Specifications Bullet 9:
2-1/8" Bore Hole Diameter
Rose/Escutcheon Design:
K
Finish:
626/US26D
Specifications Bullet 1:
Grade 1 Passage Function Cylindrical Lockset
Product Warranty:
Limited Warranty
Rose/Escutcheon Dimensions (in):
3-3/8"
Specifications Bullet 4:
1-1/8" x 2-1/4" Spring Latch
Fire Rated:
3 Hours {A}
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Can Be Keyed:
No
Includes Cylinder(s)?:
No
Strike Number:
808
ADA:
Yes
Manufacturer:
Sargent
UPC:
810007500164
Strike Dimensions:
1-1/4" x 4-7/8"
Series:
6500-Line Bored Lever Locks
Rose/Escutcheon:
Rose
Specifications Bullet 6:
2-3/8" Projection
Lever/Knob/Pull:
Lever
Strike Description:
ASA Strike
Lever/Knob/Pull Design:
L
Grade:
Grade 2
Specifications Bullet 7:
3-3/8" K Rose
Backset (in):
2-3/4"
Base Material:
Brass, Bronze
Certification:
ANSI A156.2, Series 4000, Grade 2
Uid:
SAR1002865U15KB26D
Url Title:
28-65u15-kb-26d
Title:
28-65U15 KB 26D
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2022-12-15T05:07:19+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Commercial Residential:
Commercial
Msrp:
250
Avg Lead Time:
28
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
4.2
Pack Length:
8.25
Pack Width:
7.125
Pack Height:
4.25
Pack Volume:
249.8203125
Ul Listing:
ANSI A156.2, Series 4000, Grade 2, UL Listed
Ansi Code:
F75
Country Of Origin:
United States
Limited Warranty:
10 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
10
Vendor:
Assa Abloy
