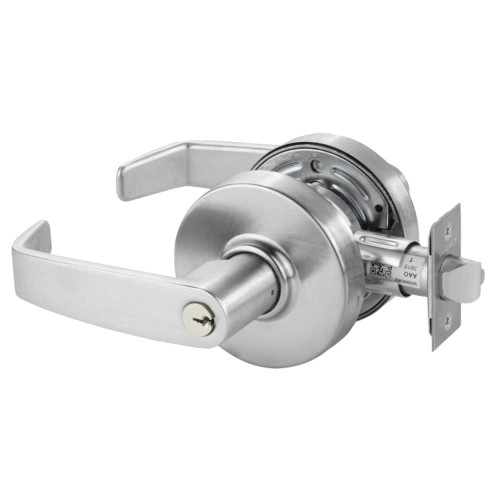

Sargent 28-7G37 LL 26D Grade 2 Classroom Cylindrical Lock L Lever Conventional Cylinder Satin Chrome Finish Non-handed

Sargent

Write a Review
SKU:
28-7G37 LL 26D
$257.26
Sargent 28-7G37 LL 26D Grade 2 Classroom Cylindrical Lock L Lever Conventional Cylinder Satin Chrome Finish Non-handed
UPC:
810007500225
$257.26

Descriptions

A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability.
TypeTitleURL
brochure/sales-materialSargent Bored Lock Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/SAR_Tzone_Generic_Brochure.pdf
catalog7 Line Bored Lever Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Bored_Lock_7_Line_Catalog.pdf
installation-instructions7 & 10 Line Bored Locks (30- prefix) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6838D_low_res.pdf
7 & 10 Line Levers w/ Sargent Removable Core (63-) or Arrow, Best & Falcon Interchangeable Core Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6847.pdf
7 Line Cylindrical Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7240D.pdf
SF Prefix Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A8009A.pdf
parts-list7-Line Lever Lock Body (Manufactured after 1/2005) Illustrated Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/7.2-B.pdf
7-Line Lever Lock Functions (Standard Lock Body) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/SARGENT_7_Line_Parts_Manual.pdf
sell-sheetHurricane Resistant Bored Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/Windstorm_Bored.pdf
template7 Line Bored Lever Locks Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/SARGENT_Bored_Lock_7_Line_All_Functions_Template.pdf

Specifications

Brand:
Sargent
Latch Throw (in):
1/2"
Specifications Bullet 12:
5 Year Warranty
Latch Dimensions:
1-1/8" x 2-1/4"
Specifications Bullet 8:
3-3/8" L Rose
UOM:
1
Finish Description:
Satin Chrome
Specifications Bullet 7:
2-1/2" Projection
Latch Description:
Dead Latch
Specifications Bullet 11:
ANSI A156.2, Grade 2, UL Listed
Rose/Escutcheon Design:
L
Latch Bore Diameter (in):
1"
Function:
Classroom
Rose/Escutcheon:
Rose
Specifications Bullet 4:
2-3/4" Backset
Commercial Residential:
Commercial
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Cylinder Type:
Conventional
Specifications Bullet 3:
Conventional LA Keyway
Fire Rated:
3 Hours {A}
Door Handing:
Non-handed
ADA:
Yes
Specifications Bullet 2:
L Lever
Product Warranty:
5 Year Warranty
Strike Description:
ASA Strike
Rose/Escutcheon Dimensions (in):
3-3/8"
Lever/Knob/Pull:
Lever
Finish:
626/US26D
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Series:
7-Line Bored Lever Locks
Minimum Door Thickness (in):
1-3/8"
Includes Cylinder(s)?:
Yes
Projection (in):
2-1/2"
Grade:
Grade 2
Strike Dimensions:
1-1/4" x 4-7/8"
Specifications Bullet 1:
Grade 2 Classroom Function Cylindrical Lockset
Keyway:
LA Keyway
Maximum Door Thickness (in):
1-3/4"
Door Range (Thickness):
1-3/8" - 1-3/4"
Specifications Bullet 9:
For Doors 1-3/8" - 1-3/4" Thick
Latch Number:
07-2430
Lever/Knob/Pull Design:
L
Strike Number:
808
Backset (in):
2-3/4"
Base Material:
Brass, Bronze
Electronic:
No
Parent Manufacturer:
Assa Abloy
Bore Hole Diameter (in):
2-1/8"
Can Be Keyed:
Yes
Certification:
ANSI A156.2, Grade 2, UL Listed
UPC:
810007500225
Country of Origin:
United States
Manufacturer:
Sargent

Warranty Information

5 Year Warranty
