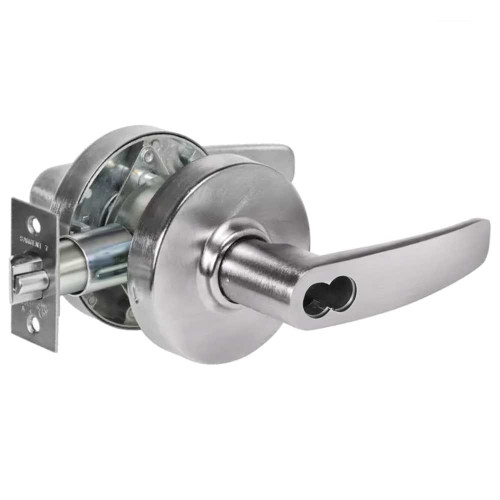

Sargent 2860-7G04 LL 26D Grade 2 Storeroom/Closet Cylindrical Lock L Lever LFIC Disposable Construction Core Satin Chrome Finish Non-handed

Sargent

Write a Review
SKU:
2860-7G04 LL 26D
$254.28
Sargent 2860-7G04 LL 26D Grade 2 Storeroom/Closet Cylindrical Lock L Lever LFIC Disposable Construction Core Satin Chrome Finish Non-handed
$254.28

Descriptions

A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability.
TypeTitleURL
brochure/sales-materialSargent Bored Lock Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/SAR_Tzone_Generic_Brochure.pdf
catalog7 Line Bored Lever Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Bored_Lock_7_Line_Catalog.pdf
installation-instructions7 & 10 Line Bored Locks (30- prefix) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6838D_low_res.pdf
7 & 10 Line Levers w/ Sargent Removable Core (63-) or Arrow, Best & Falcon Interchangeable Core Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6847.pdf
7 Line Cylindrical Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7240D.pdf
SF Prefix Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A8009A.pdf
parts-list7-Line Lever Lock Body (Manufactured after 1/2005) Illustrated Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/7.2-B.pdf
7-Line Lever Lock Functions (Standard Lock Body) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/SARGENT_7_Line_Parts_Manual.pdf
sell-sheetHurricane Resistant Bored Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/Windstorm_Bored.pdf
template7 Line Bored Lever Locks Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/SARGENT_Bored_Lock_7_Line_All_Functions_Template.pdf

Specifications

Brand:
Sargent
Commercial Residential:
Commercial
Certification:
ANSI A156.2, Grade 2, UL Listed
Manufacturer:
Sargent
Parent Manufacturer:
Assa Abloy
Series:
7-Line Bored Lever Locks
Backset (in):
2-3/4"
ADA:
Yes
Base Material:
Brass, Bronze
Bore Hole Diameter (in):
2-1/8"
Can Be Keyed:
Yes
Electronic:
No
Door Handing:
Non-handed
Door Range (Thickness):
1-3/8" - 1-3/4"
Fire Rated:
3 Hours {A}
Finish Description:
Satin Chrome
Finish:
626/US26D
Cylinder Type:
LFIC Housing
Grade:
Grade 2
Function:
Storeroom
Country Of Origin:
United States
Latch Bore Diameter (in):
1"
Latch Throw (in):
1/2"
Lever/Knob/Pull Design:
L
Includes Cylinder(s)?:
No
Lever/Knob/Pull:
Lever
Latch Dimensions:
1-1/8" x 2-1/4"
Latch Description:
Dead Latch
Specifications Bullet 1:
Grade 2 Storeroom Function Cylindrical Lockset
Latch Number:
07-2430
Keyway:
Less Core
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 11:
ANSI A156.2, Grade 2, UL Listed
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 2:
L Lever
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 3:
LFIC Housing Less Core
Specifications Bullet 9:
For Doors 1-3/8" - 1-3/4" Thick
Specifications Bullet 7:
2-1/2" Projection
Specifications Bullet 8:
3-3/8" L Rose
Rose/Escutcheon Design:
L
Specifications Bullet 12:
5 Year Warranty
Projection (in):
2-1/2"
Selling Quantity:
1
Rose/Escutcheon Dimensions (in):
3-3/8"
Strike Description:
ASA Strike
Rose/Escutcheon:
Rose
Maximum Door Thickness (in):
1-3/4"
Minimum Door Thickness (in):
1-3/8"
Product Warranty:
5 Year Warranty
Strike Dimensions:
1-1/4" x 4-7/8"
UOM:
1
Strike Number:
808
Uid:
SAR10028607G04LL26D
Url Title:
2860-7g04-ll-26d
Title:
2860-7G04 LL 26D
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-28T05:07:23+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
363
Avg Lead Time:
25
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
3.6
Pack Length:
8.25
Pack Width:
6.875
Pack Height:
4.25
Pack Volume:
241.0546875
Ul Listing:
ANSI A156.2, Series 4000, Grade 2, UL Listed
Ansi Code:
F86
Baa Qualified:
Yes
Limited Warranty:
5 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
10
Vendor:
Assa Abloy

Warranty Information

5 Year Warranty
