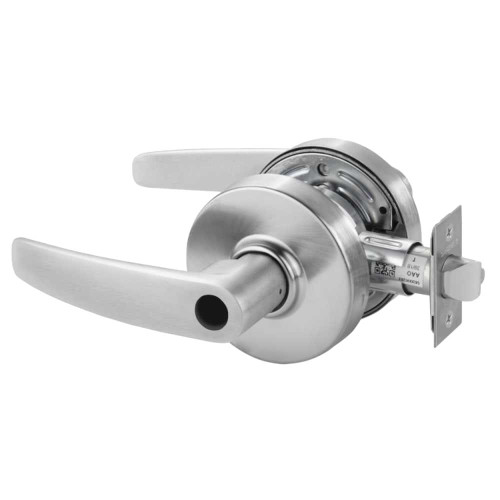

Sargent 28LC-7G05 LB 26D Grade 2 Entrance/Office Cylindrical Lock B Lever Conventional Less Cylinder Satin Chrome Finish Non-handed

Sargent

Write a Review
SKU:
28LC-7G05 LB 26D
$179.52
Sargent 28LC-7G05 LB 26D Grade 2 Entrance/Office Cylindrical Lock B Lever Conventional Less Cylinder Satin Chrome Finish Non-handed
$179.52

Descriptions

A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability.
TypeTitleURL
brochure/sales-materialSargent Bored Lock Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/SAR_Tzone_Generic_Brochure.pdf
catalog7 Line Bored Lever Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Bored_Lock_7_Line_Catalog.pdf
installation-instructions7 & 10 Line Bored Locks (30- prefix) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6838D_low_res.pdf
7 & 10 Line Levers w/ Sargent Removable Core (63-) or Arrow, Best & Falcon Interchangeable Core Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6847.pdf
7 Line Cylindrical Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7240D.pdf
SF Prefix Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A8009A.pdf
parts-list7-Line Lever Lock Body (Manufactured after 1/2005) Illustrated Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/7.2-B.pdf
7-Line Lever Lock Functions (Standard Lock Body) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/SARGENT_7_Line_Parts_Manual.pdf
sell-sheetHurricane Resistant Bored Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/Windstorm_Bored.pdf
template7 Line Bored Lever Locks Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/SARGENT_Bored_Lock_7_Line_All_Functions_Template.pdf

Specifications

Brand:
Sargent
Parent Manufacturer:
Assa Abloy
Manufacturer:
Sargent
Backset (in):
2-3/4"
ADA:
Yes
Series:
7-Line Bored Lever Locks
Certification:
ANSI A156.2, Grade 2, UL Listed
Bore Hole Diameter (in):
2-1/8"
Base Material:
Brass, Bronze
Can Be Keyed:
Yes
Commercial Residential:
Commercial
Cylinder Type:
Conventional
Door Range (Thickness):
1-3/8" - 1-3/4"
Finish:
626/US26D
Electronic:
No
Finish Description:
Satin Chrome
Function:
Entrance
Fire Rated:
3 Hours {A}
Grade:
Grade 2
Door Handing:
Non-handed
Country Of Origin:
United States
Lever/Knob/Pull Design:
B
Includes Cylinder(s)?:
No
Latch Description:
Dead Latch
Latch Throw (in):
1/2"
Keyway:
Less Core
Latch Bore Diameter (in):
1"
Latch Number:
07-2430
Latch Dimensions:
1-1/8" x 2-1/4"
Specifications Bullet 1:
Grade 2 Entrance Function Cylindrical Lockset
Lever/Knob/Pull:
Lever
Specifications Bullet 8:
3-3/8" L Rose
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 9:
For Doors 1-3/8" - 1-3/4" Thick
Specifications Bullet 3:
Conventional Less Core
Specifications Bullet 11:
ANSI A156.2, Grade 2, UL Listed
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 7:
2-1/2" Projection
Specifications Bullet 2:
B Lever
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Minimum Door Thickness (in):
1-3/8"
Specifications Bullet 12:
5 Year Warranty
Product Warranty:
5 Year Warranty
Projection (in):
2-1/2"
Rose/Escutcheon Dimensions (in):
3-3/8"
Selling Quantity:
1
Rose/Escutcheon:
Rose
Rose/Escutcheon Design:
L
Strike Description:
ASA Strike
Maximum Door Thickness (in):
1-3/4"
UOM:
1
Strike Number:
808
Strike Dimensions:
1-1/4" x 4-7/8"
Uid:
SAR10028LC7G05LB26D
Url Title:
28lc-7g05-lb-26d
Title:
Sargent 28LC-7G05 LB 26D Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-26T05:13:47+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
253
Avg Lead Time:
24
Finish Family:
Matte Silver
Popularity:
5
Pack Weight:
3.6
Pack Length:
8.25
Pack Width:
6.875
Pack Height:
4.25
Pack Volume:
241.0546875
Ul Listing:
ANSI A156.2, Series 4000, Grade 2, UL Listed
Ansi Code:
F109
Baa Qualified:
Yes
Limited Warranty:
5 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
10
Vendor:
Assa Abloy

Warranty Information

5 Year Warranty
