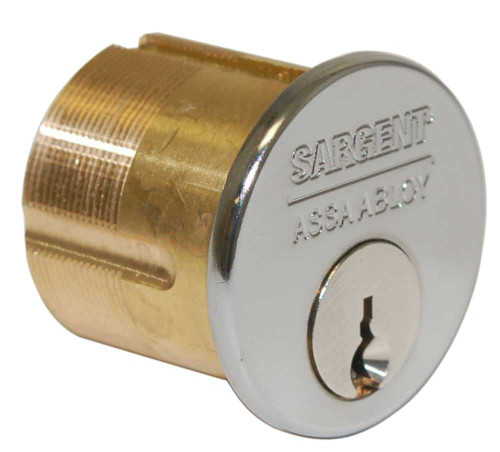

Sargent 41 RA 32 1-1/8 Mortise Cylinder RA Keyway Bright Stainless Steel

Sargent

Write a Review
SKU:
41 RA 32
$79.01
Sargent 41 RA 32 1-1/8 Mortise Cylinder RA Keyway Bright Stainless Steel
$79.01

Descriptions

Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap avaialable in all architechtural finishes. They are furnished standard with number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8" through 3", minimum length for 7-Pin is 1-1/4". They are provided standard with Sargent offset cam number 13-0664, other cams are available.
TypeTitleURL
catalogSargent Cylinders and Components Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SAR_Cylinders_and_Components_Catalog.pdf

Specifications

Brand:
Sargent
Base Material:
Stainless Steel
Dimensions:
1-1/8"
Manufacturer:
Sargent
Series:
Mortise Cylinders
CAM Description:
Standard Offset
Parent Manufacturer:
Assa Abloy
Country Of Origin:
USA
CAM Number:
13-0664
Cylinder Type:
Conventional
Diameter (in):
1-5/32" Cylinder Diameter
Finish Description:
Bright Stainless Steel
Specifications Bullet 2:
Conventional 6-pin RA keyway (KD) Keyed Different
Specifications Bullet 4:
Includes 13-0664 Standard Offset CAM
Specifications Bullet 3:
Includes Rose and Compression Springs, 2 Keys
Includes:
Rose and Compression Springs
Keyway:
RA keyway
Door Range (Thickness):
-
Finish:
629/US32
Specifications Bullet 1:
1-1/8" Mortise Cylinder
Keying Detail:
(KD) Keyed Different
Specifications Bullet 5:
1-5/32" Cylinder Diameter
Number of Pins:
6-pin
Number of Keys:
2
Uid:
SAR10041RA32
Url Title:
41-ra-32
Title:
41 RA 32 Sargent Mortise Cylinder
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Cylinder
Last Modified:
2024-08-13T13:12:51+00:00
Last Pricing:
2024-03-01T00:00:00+00:00
Msrp:
125
Avg Lead Time:
20
Popularity:
9
Pack Weight:
0.525
Pack Length:
4.125
Pack Width:
2.375
Pack Height:
1.875
Pack Volume:
18.36914063
Baa Qualified:
Yes
Unit Of Measure:
Each
