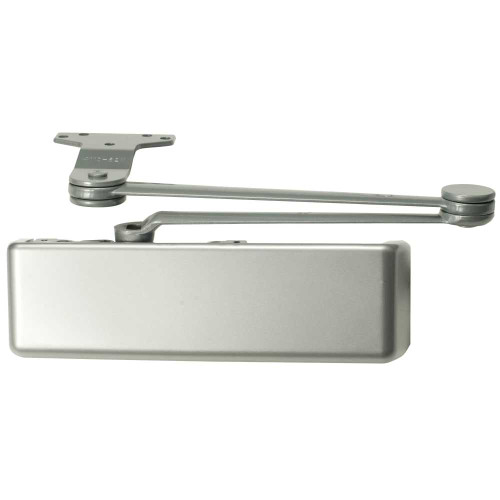

LCN 4111-EDA RH 689 MC Grade 1 Surface Door Closer Extra Duty Arm Push Side Parallel Arm Mounting 180 Deg Swing Size 1 to 5 Full Metal Cover Aluminum Painted Finish Right-Handed

LCN

Write a Review
SKU:
4111-EDA RH 689 MC
$509.72
LCN 4111-EDA RH 689 MC Grade 1 Surface Door Closer Extra Duty Arm Push Side Parallel Arm Mounting 180 Deg Swing Size 1 to 5 Full Metal Cover Aluminum Painted Finish Right-Handed
$509.72

Descriptions

The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.
TypeTitleURL
brochure/sales-materialLCN Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/lcn/miscellaneous/ALLEGION_finish-chart.pdf
catalogLCN 4000 Series Cataloghttps://dvwi9lnoau63q.cloudfront.net/lcn/catalog/LCN_catalog_4000-series.pdf
cut-sheetLCN 4110 Series Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/lcn/cutsheets/LCN_cutsheet_4110-series.pdf
installation-guideLCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN_4010_4020_4110_Series_Fusible_Link_Installation_Instructions_107134.pdf
LCN 4110 Drop Plates Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN_4110_4210_Series_Drop_Plate_Installation_Instructions_105801.pdf
LCN 4110 Peel-N-Stick CUSH Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN_4110_Series_CUSH_Installation_Instructions_105802.pdf
LCN 4110 Peel-N-Stick Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN_4110_Series_Installation_Instructions_107170.pdf
LCN Closers & Auto Operators Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCN_Closers_and_Auto_Operators_Templates_and_Instructions_Index_111819.pdf
LCN Drop Plates Installation Guide for 4110, 4110 CUSH, 4210, 4210 CUSH, 4110T, 4210Thttps://dvwi9lnoau63q.cloudfront.net/lcn/installation-guide/LCNDropPlateInstallationGuide.pdf
sell-sheetLCN 4000 Series Metal Templates Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/lcn/product-guide/LCN4000SeriesMetalTemplatesProductGuide.pdf

Specifications

Brand:
LCN
Manufacturer:
LCN
Advanced Backcheck:
No
Series:
4110 Series Surface Mounted Closers
Parent Manufacturer:
Allegion
ADA:
Yes
All Weather Fluid:
Yes
Body Base Material:
Cast Iron
Backcheck:
Yes
Base Material:
Varies
Arm Type:
Extra Duty Arm
Box Weight (lbs):
15 lbs
Box Depth (in):
16"
Certification:
ANSI A156.4, Grade 1, UL 10C, ADA
Box Height (in):
4-1/2"
Box Width (in):
6"
Closing Speed Adjustment:
Yes
Cover Material:
Metal
Commercial Residential:
Commercial
Country of Origin:
United States
Cover Type:
Full Body Cover
Electronic:
No
Finish:
689/US28
Degree Swing:
180 Degree Swing
Door Range (Thickness):
-
Door Handing:
Right Hand
Finish Description:
Aluminum Painted
Fire Rated:
Yes
Hold Open Type:
Not Applicable
Hold Open:
No
Grade:
Grade 1
Latch Speed Adjustment:
Yes
Specifications Bullet 1:
Grade 1 Surface Door Closer
Specifications Bullet 4:
Push Side Mount
Specifications Bullet 3:
Size 1-6
Specifications Bullet 2:
Extra Duty Arm
Specifications Bullet 9:
1-1/2" Piston Diameter
Specifications Bullet 8:
Cast Iron Body
Specifications Bullet 5:
Right Hand
Specifications Bullet 6:
180 Degree Swing
Specifications Bullet 7:
Metal Full Body Cover
Maximum Door Weight (lbs):
225
Specifications Bullet 10:
Includes Self-Reaming Tapping Screws
Specifications Bullet 11:
ANSI A156.4, Grade 1, UL 10C, ADA
Specifications Bullet 12:
30 Year Warranty
Mount:
Push Side Mount
Screw Pack:
Self-Reaming Tapping Screws
Product Warranty:
30 Year Warranty
Piston Diameter (in):
1-1/2"
Screw Pack Designation:
SRT
Size:
Size 1-6
Type:
Surface
UOM:
1
Trademark Term:
SMOOTHIE
Uid:
LCN1004111EDARHALMC
Url Title:
4111-eda-rh-al-mc
Title:
4111-EDA RH AL MC LCN Surface Closers
Type:
Door Closers and Operators
Sub Type:
Surface Closers
Last Modified:
2023-02-26T05:15:28+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
702
Avg Lead Time:
27
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
13
Ul Listing:
UL Listed
Ansi Code:
A156.4
Baa Qualified:
Yes
Limited Warranty:
30 Years
Unit Of Measure:
Each
Vendor:
Allegion
Assembly Item:
1

Warranty Information

30 Year Warranty
