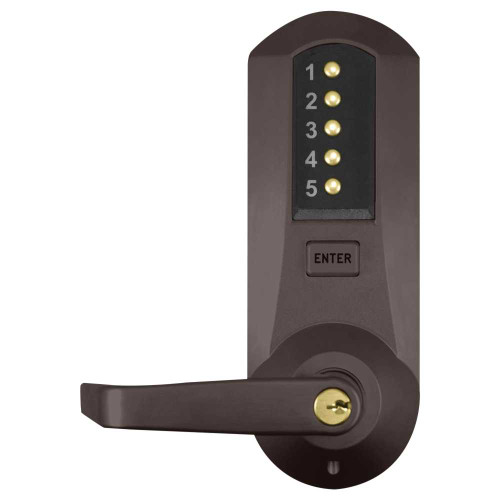

Kaba Simplex 5021XSWL-744-41 Cylindrical Combination Lever Lock 2-3/4 Backset 1/2 Throw Latch KIL Schlage C Keyway Dark Bronze with Brass Accents

Kaba Simplex

Write a Review
SKU:
5021XSWL-744-41
$630.14
Kaba Simplex 5021XSWL-744-41 Cylindrical Combination Lever Lock 2-3/4 Backset 1/2 Throw Latch KIL Schlage C Keyway Dark Bronze with Brass Accents
UPC:
810007500386
$630.14

Descriptions

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
TypeTitleURL
catalogSimplex Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/dormakaba/guides/KABA_catalog_simplex.pdf
installation-instructionsKaba Simplex Mechanical Pushbutton Lock - 5000 Series Exit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/installation_instructions/simplex-5000-exit-installation-instructions-pkg3054.pdf
Kaba Simplex Mechanical Pushbutton Lock - 5000 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/installation_instructions/simplex-5000-installation-instructions-pkg2842.pdf
price-book2024 Simplex Parts Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex-parts_1-2024.pdf
2024 Simplex Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex_1-2024.pdf
specsCSI Specifications for Simplex 5000 Series Mechanical Pushbutton Lockshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/specifications/simplex-5000-csi-specifications.pdf
Technical Specifications for Simplex 5000 Series Mechanical Pushbutton Lockshttps://dvwi9lnoau63q.cloudfront.net/dormakaba/specifications/simplex-5000-specifications-kaa1052.pdf
videoSimplex 5000 - How to Change the Combination (Exterior Combination Change)https://youtu.be/L7XEw1k0mvw
Simplex 5000 - How to change the combination (interior Combination Change)https://youtu.be/gGDQurhuYWk
Simplex 5000 - How to Reset an Unknown Combinationhttps://youtu.be/bIogwFE_tec

Specifications

Brand:
Kaba Simplex
Manufacturer:
DormaKaba
Backset (in):
2-3/4"
ADA:
Yes
Base Material:
VARIES
Bore Hole Diameter (in):
2-1/8"
Box Weight (lbs):
8.5 lbs
Series:
Simplex 5000 Series
Parent Manufacturer:
DormaKaba
Box Depth (in):
12"
Box Height (in):
5"
Door Range (Thickness):
1-3/8" - 2-1/4"
Cylinder Type:
Conventional
Certification:
ANSI A156.2, A156.3 Grade 1, UL Listed
Door Handing:
Non-handed
Box Width (in):
10-1/2"
Country of Origin:
Mexico
Finish:
744
Commercial Residential:
Commercial
Electronic:
No
Can Be Keyed:
Yes
Grade:
Grade 1
Latch Bore Diameter (in):
1"
Includes Cylinder(s)?:
Yes
Keyway:
C Keyway
Latch Description:
Dead Latch
Latch Throw (in):
1/2"
Latch Dimensions:
1-1/8" x 2-1/4"
Lever/Knob/Pull:
Lever
Function:
Entrance
Finish Description:
Dark Bronze Brass Accents
Lever/Knob/Pull Design:
WL
Specifications Bullet 8:
5" Minimum Stile
Specifications Bullet 7:
Single Access Code
Specifications Bullet 9:
3-13/16" Projection
Specifications Bullet 2:
WL Lever
Specifications Bullet 1:
Grade 1 Cylindrical Single Access Code Pushbutton Lockset
Specifications Bullet 3:
Conventional C Keyway
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 6:
Entrance Function
Specifications Bullet 13:
For Doors 1-3/8" - 2-1/4" Thick
Specifications Bullet 10:
3-1/8" x 8-7/8" Escutcheon Dimension
Minimum Door Thickness (in):
1-3/8"
Specifications Bullet 15:
3 Year Warranty
Specifications Bullet 11:
1-1/8" x 2-1/4" Dead Latch
Minimum Stile (in):
5"
Specifications Bullet 12:
1/2" Latch Throw
Specifications Bullet 14:
ANSI A156.2, A156.3 Grade 1, UL Listed
Product Height (in):
7-3/8"
Maximum Door Thickness (in):
2-1/4"
Rose/Escutcheon:
Escutcheon
Product Width (in):
3-1/8"
Rose/Escutcheon Dimensions (in):
3-1/8" x 8-7/8"
Technology:
Single Access Code
Strike Description:
ASA Strike
Product Warranty:
3 Year Warranty
Strike Dimensions:
1-1/4" x 4-7/8"
Type:
Mechanical Pushbutton
UOM:
1
Projection (in):
3-13/16"
User Codes:
1
UPC:
810007500386
Uid:
SIM1005021XSWL74441
Url Title:
5021xswl-744-41
Title:
5021XSWL-744-41
Type:
Integrated and Pushbutton
Sub Type:
Cylindrical Locks with Keypad Trim
Last Modified:
2023-02-26T05:38:32+00:00
Last Pricing:
2022-09-30T00:00:00+00:00
Msrp:
787
Avg Lead Time:
134
Popularity:
3
Unit Of Measure:
Each
Vendor:
DormaKaba

Warranty Information

3 Year Warranty
