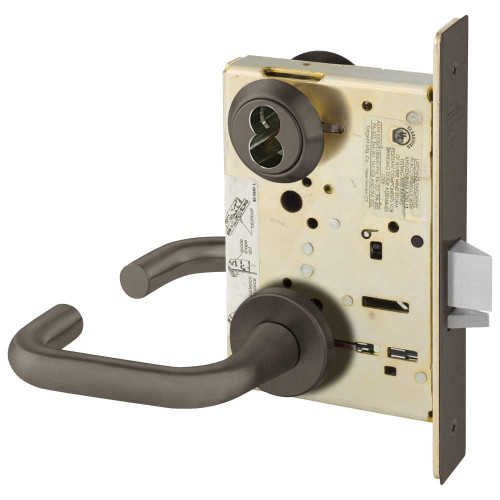

Sargent 70-8255 LNJ 10B Office or Entry Mortise Lock LN Rose J Lever SFIC Prep Less Core Oil Rubbed Bronze

Sargent

Write a Review
SKU:
70-8255 LNJ 10B
$871.67
Sargent 70-8255 LNJ 10B Office or Entry Mortise Lock LN Rose J Lever SFIC Prep Less Core Oil Rubbed Bronze
$871.67

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Series:
8200 Line Lever Mortise Locks
Armor Front Dimensions:
1-1/4" x 8"
Parent Manufacturer:
Assa Abloy
Manufacturer:
Sargent
ADA:
Yes
Can Be Keyed:
Yes
Commercial/Residential:
Commercial
Backset (in):
2-3/4"
Base Material:
Bronze
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Deadbolt Throw (in):
Not Applicable
Cylinder Type:
Mortise SFIC Housing
Door Handing:
Non-handed
Country Of Origin:
USA
Door Range (Thickness):
1-3/4" - 1-3/4"
Finish Description:
Dark Oxidized Satin Bronze Oil Rubbed
Electronic:
No
Finish:
613/US10B
Fire Rated:
2 Hours {B}
Function:
Office
Keyway:
Less Core
Latch Description:
Dead Latch
Interior/Exterior:
Interior/Exterior
Grade:
Grade 1
Includes Cylinder(s)?:
No
Latch Throw (in):
3/4"
Latch Dimensions:
1-1/4" x 8"
Lever/Knob/Pull Design:
J
Lever/Knob/Pull:
Lever
Specifications Bullet 1:
Grade 1 Office Function Mortise Lockset
Specifications Bullet 2:
J Lever
Specifications Bullet 3:
Mortise SFIC Housing Less Core
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 4:
LN Rose
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 8:
2-1/8" Rose Dimension
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 7:
2-13/16" Projection
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 12:
For Doors 1-3/4" Thick
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 14:
10 Year Warranty
Pocket Depth (in):
6-5/8" x 4-1/2"
Pocket Dimensions:
6-5/8" x 4-1/2"
Rose/Escutcheon:
Rose
Product Warranty:
10 Year Warranty
Projection (in):
2-13/16"
Rose/Escutcheon Design:
LN
Selling Quantity:
1
Strike Description:
ASA Strike
Rose/Escutcheon Dimensions (in):
2-1/8"
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
82-0110
UOM:
1
Uid:
SAR100708255LNJ10B
Url Title:
70-8255-lnj-10b
Title:
70-8255 LNJ 10B Sargent Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-13T09:37:21+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1227
Popularity:
9
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
