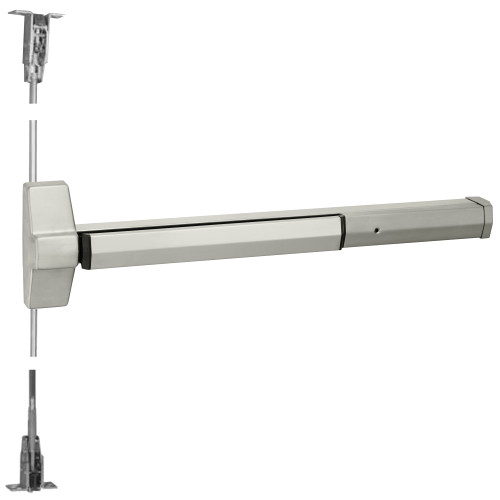

Yale 7120 36 630 Grade 1 Metal Door Concealed Vertical Rod Exit Bar Wide Stile Pushpad 36 Device 96 Door Height Less Trim Hex Key Dogging Satin Stainless Steel Finish Field Reversible

ACCENTRA (formerly Yale Commercial)

Write a Review
SKU:
7120 36 630
$1,870.38
Yale 7120 36 630 Grade 1 Metal Door Concealed Vertical Rod Exit Bar Wide Stile Pushpad 36 Device 96 Door Height Less Trim Hex Key Dogging Satin Stainless Steel Finish Field Reversible
$1,870.38

Descriptions

Yale 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation and aesthetics. With ANSI/BHMA Grade 1 certification and a full range of mechanical and electromechanical functions and accessories, the 7000 Series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building.
TypeTitleURL
catalog7000 Series Architectural Exit Devices Cataloghttps://dvwi9lnoau63q.cloudfront.net/yale/catalogs/Yale7000SeriesExitDevicesCatalog.pdf
installation-instructions7100(F), 7150(F)(WS) Rim and SquareBolt Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9470-0000-00009-15.pdf
7110(F), 7170(F)(LBR) Surface Vertical Rod Exit Device Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9470-0010-00003-1371107170ExitDevices.pdf
7116 Exit Alarm Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9470-7116-01003-137116Alarmkitsafter10-2012.pdf
7120(F) Series Concealed Vertical Rod Exit Devices Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9470-0020-00004-137120CVRExitDevices.pdf
7130(F) Series Mortise Exit Devices Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9470-0030-00003-137130MortiseExitDevices.pdf
7160(F) Series Concealed Vertical Rod Exit Devices Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9470-0060-00004-137160CVRExitDevices.pdf
7200 Rim Exit Devices Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9472-0000-00008-137200RimExitDevices.pdf
7210 Surface Vertical Rod Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9472-0010-00004-137210SVRExitDevices.pdf
7220 Concealed Vertical Rod Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9472-0020-00004-137220CVRExitDevices.pdf
7250 SquareBolt Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9472-0050-00011-127250SqareBolt.pdf
Double Cylinder Latch-Head Assembly Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/7100RimDoubleCylinder80-8470-0002-000REVB05-12.pdf
Exit Devices with Electric Dogging (G) and/or Monitorshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9477-0780-00001-13GOptionforExits.pdf
Exit Devices with Electric Latch Retraction (P) and/or Monitorshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9477-0781-00101-13POptionforExits.pdf
videoYale 7120 Exit Device Series Installation Instructionshttps://youtu.be/b4Cwcx9QmQA

Specifications

Brand:
ACCENTRA (formerly Yale Commercial)
Center Case Dimensions:
3-1/18" x 8-3/16"
Cylinder Type:
Less Cylinder
Certification:
ANSI A156.3, Grade 1, UL Listed
Backset (in):
2-3/4"
Dogging Option:
Yes
Base Material:
Stainless Steel
Series:
7000 Series Pushpad Exit Devices
Manufacturer:
Yale
Parent Manufacturer:
Assa Abloy
Commercial Residential:
Commercial
Dogging Type:
Hex Key Dogging
Electronic:
No
Door Handing:
Non-handed
Door Width Minimum (in):
30"
Door Width Maximum (in):
36"
End Cap Material:
Metal
Door Height (in):
96"
Door Material:
Metal/Wood
Door Range (Thickness):
1-3/4" - 1-3/4"
Finish:
630/US32D
Grade:
Grade 1
Keyway:
Not Applicable
Latch Description:
Top - Bottom Latchbolts
Latch Throw (in):
3/4"
Includes Cylinder(s)?:
No
Specifications Bullet 2:
Less Cylinder
Specifications Bullet 1:
Concealed Vertical Rod Exit Device, Exit Only
Function:
Exit Only
Fire Rated:
No
Finish Description:
Satin Stainless Steel
Specifications Bullet 7:
For Doors 1-3/4" Thick
Specifications Bullet 6:
For Doors 30" - 36" Wide
Specifications Bullet 9:
3-1/4" Full Extension
Specifications Bullet 3:
4-1/2" Minimum Stile
Specifications Bullet 11:
Hex Key Dogging
Specifications Bullet 8:
For Metal/Wood Doors
Specifications Bullet 10:
3/4" Top - Bottom Latchbolts
Specifications Bullet 12:
Metal End Cap
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 5:
3-1/18" x 8-3/16" Center Case Dimension
Specifications Bullet 14:
ANSI A156.3, Grade 1, UL Listed
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 15:
5 Year Warranty
Product Warranty:
5 Year Warranty
Maximum Door Thickness (in):
1-3/4"
Minimum Stile (in):
4-1/2"
Product Width (in):
36"
Specifications Bullet 13:
Includes Machine Screws, Fasteners
Projection (in):
3-1/4"
Screw Pack:
Machine Screws, Fasteners
Selling Quantity:
1
Strike Description:
Solid Catch Strike
Type:
Concealed Vertical Rod Exit Device
UOM:
1
Strike Number:
791/790
Uid:
YAL200712036630
Url Title:
7120-36-630
Title:
7120 36 630 Yale Concealed Vertical Rod Exit Devices
Type:
Exit Devices
Sub Type:
Concealed Vertical Rod Exit Devices
Last Modified:
2023-02-26T05:32:50+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
2711
Avg Lead Time:
33
Finish Family:
Matte Silver
Popularity:
8
Limited Warranty:
5 Years
Unit Of Measure:
Each
Vendor:
Assa Abloy

Warranty Information

5 Year Warranty
