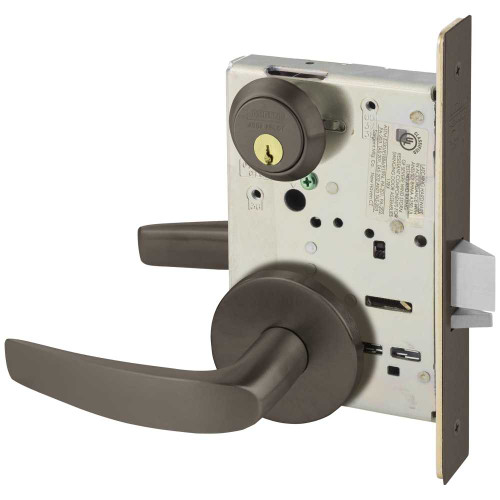

Sargent 8204 LNJ 10B Grade 1 Storeroom or Closet Mortise Lock J - Lever LN - Rose Field Reversible Conventional Cylinder ASA Strike Dark Oxidized Satin Bronze Oil Rubbed

Sargent

Write a Review
SKU:
8204 LNJ 10B
$871.67
Sargent 8204 LNJ 10B Grade 1 Storeroom or Closet Mortise Lock J - Lever LN - Rose Field Reversible Conventional Cylinder ASA Strike Dark Oxidized Satin Bronze Oil Rubbed
$871.67

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Series:
8200 Line Lever Mortise Locks
Specifications Bullet 2:
J Lever
Door Range (Thickness):
1-3/4" - 1-3/4"
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 3:
Mortise Conventional LA Keyway
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Includes Cylinder(s)?:
Yes
Specifications Bullet 1:
Grade 1 Storeroom Function Mortise Lockset
Fire Rated:
2 Hours {B}
Armor Front Dimensions:
1-1/4" x 8"
Deadbolt Throw (in):
Not Applicable
Specifications Bullet 7:
2-13/16" Projection
Base Material:
Bronze
ADA:
Yes
Cylinder Type:
Mortise Conventional
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Finish:
613/US10B
Commercial/Residential:
Commercial
Country Of Origin:
USA
Specifications Bullet 9:
3/4" Dead Latch
Grade:
Grade 1
Specifications Bullet 4:
LN Rose
Backset (in):
2-3/4"
Function:
Storeroom
Electronic:
No
Minimum Door Thickness (in):
1-3/4"
Lever/Knob/Pull Design:
J
Latch Description:
Dead Latch
Keyway:
LA Keyway
Door Handing:
Non-handed
Interior/Exterior:
Interior/Exterior
Lever/Knob/Pull:
Lever
Pocket Depth (in):
6-5/8" x 4-1/2"
Finish Description:
Dark Oxidized Satin Bronze Oil Rubbed
Can Be Keyed:
Yes
Specifications Bullet 14:
10 Year Warranty
Latch Throw (in):
3/4"
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Specifications Bullet 8:
2-1/8" Rose Dimension
Rose/Escutcheon:
Rose
Projection (in):
2-13/16"
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Pocket Dimensions:
6-5/8" x 4-1/2"
Latch Dimensions:
1-1/4" x 8"
Manufacturer:
Sargent
Maximum Door Thickness (in):
1-3/4"
Product Warranty:
10 Year Warranty
Parent Manufacturer:
Assa Abloy
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
UOM:
1
Selling Quantity:
1
Rose/Escutcheon Dimensions (in):
2-1/8"
Strike Dimensions:
1-1/4" x 4-7/8"
Specifications Bullet 12:
For Doors 1-3/4" Thick
Strike Description:
ASA Strike
Rose/Escutcheon Design:
LN
Strike Number:
82-0110
Uid:
SAR1008204LNJ10B
Url Title:
8204-lnj-10b
Title:
8204 LNJ 10B Sargent Manufacturing Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-13T09:10:55+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1227
Avg Lead Time:
12
Popularity:
9
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
