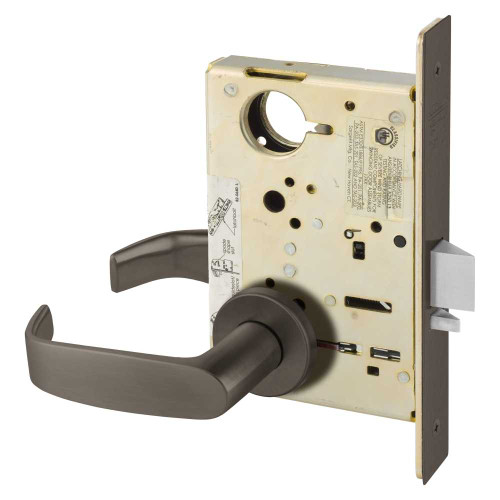

Sargent 8238 LNL 10B Grade 1 Classroom Security Intruder Latchbolt Mortise Lock L - Lever LN - Rose Field Reversible Conventional Cylinder ASA Strike Dark Oxidized Satin Bronze Oil Rubbed

Sargent

Write a Review
SKU:
8238 LNL 10B
$987.97
Sargent 8238 LNL 10B Grade 1 Classroom Security Intruder Latchbolt Mortise Lock L - Lever LN - Rose Field Reversible Conventional Cylinder ASA Strike Dark Oxidized Satin Bronze Oil Rubbed
$987.97

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Electronic:
No
Specifications Bullet 14:
10 Year Warranty
Keyway:
LA Keyway
Interior/Exterior:
Interior/Exterior
Lever/Knob/Pull:
Lever
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Latch Description:
Dead Latch
Specifications Bullet 7:
2-3/8" Projection
Country Of Origin:
USA
Specifications Bullet 5:
2-3/4" Backset
Finish:
613/US10B
Cylinder Type:
Mortise Conventional
Pocket Dimensions:
6-5/8" x 4-1/2"
Maximum Door Thickness (in):
1-3/4"
Latch Dimensions:
1-1/4" x 8"
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Includes Cylinder(s)?:
Yes
Deadbolt Throw (in):
Not Applicable
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Grade:
Grade 1
Specifications Bullet 12:
For Doors 1-3/4" Thick
Product Warranty:
10 Year Warranty
Function:
Classroom Security Intruder
Minimum Door Thickness (in):
1-3/4"
Finish Description:
Dark Oxidized Satin Bronze Oil Rubbed
Door Handing:
Non-handed
Projection (in):
2-3/8"
Specifications Bullet 9:
3/4" Dead Latch
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Specifications Bullet 2:
L Lever
Specifications Bullet 4:
LN Rose
Pocket Depth (in):
6-5/8" x 4-1/2"
Lever/Knob/Pull Design:
L
Strike Dimensions:
1-1/4" x 4-7/8"
Specifications Bullet 3:
Mortise Conventional LA Keyway
Fire Rated:
2 Hours {B}
Parent Manufacturer:
Assa Abloy
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Door Range (Thickness):
1-3/4" - 1-3/4"
Strike Description:
ASA Strike
Specifications Bullet 1:
Grade 1 Classroom Security Intruder Function Mortise Lockset
Specifications Bullet 8:
2-1/8" Rose Dimension
Series:
8200 Line Lever Mortise Locks
Rose/Escutcheon Dimensions (in):
2-1/8"
Selling Quantity:
1
Strike Number:
82-0110
Rose/Escutcheon Design:
LN
Can Be Keyed:
Yes
Latch Throw (in):
3/4"
Rose/Escutcheon:
Rose
UOM:
1
ADA:
Yes
Commercial/Residential:
Commercial
Armor Front Dimensions:
1-1/4" x 8"
Base Material:
Bronze
Manufacturer:
Sargent
Backset (in):
2-3/4"

Warranty Information

10 Year Warranty
