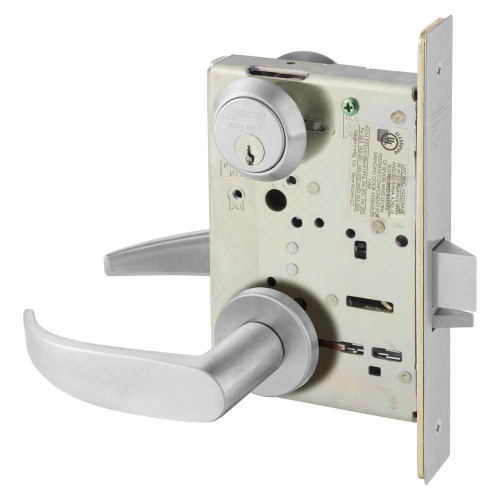

Sargent 8238 LNL 26D Grade 1 Classroom Security Intruder Latchbolt Mortise Lock L - Lever LN - Rose Field Reversible Conventional Cylinder ASA Strike Satin Chrome

Sargent

Write a Review
SKU:
8238 LNL 26D
$972.80
Sargent 8238 LNL 26D Grade 1 Classroom Security Intruder Latchbolt Mortise Lock L - Lever LN - Rose Field Reversible Conventional Cylinder ASA Strike Satin Chrome
$972.80

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Base Material:
Brass Bronze
Specifications Bullet 8:
2-1/8" Rose Dimension
Parent Manufacturer:
Assa Abloy
Manufacturer:
Sargent
Finish Description:
Satin Chrome
Includes Cylinder(s)?:
Yes
Specifications Bullet 4:
LN Rose
Electronic:
No
Finish:
626/US26D
Projection (in):
2-3/8"
Function:
Classroom Security Intruder
Latch Throw (in):
3/4"
Maximum Door Thickness (in):
1-3/4"
Fire Rated:
2 Hours {B}
Specifications Bullet 14:
10 Year Warranty
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Door Range (Thickness):
1-3/4" - 1-3/4"
Latch Description:
Dead Latch
Rose/Escutcheon Dimensions (in):
2-1/8"
Commercial/Residential:
Commercial
Country Of Origin:
USA
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Specifications Bullet 12:
For Doors 1-3/4" Thick
Grade:
Grade 1
Lever/Knob/Pull:
Lever
Backset (in):
2-3/4"
Armor Front Dimensions:
1-1/4" x 8"
Strike Description:
ASA Strike
Pocket Dimensions:
6-5/8" x 4-1/2"
Specifications Bullet 1:
Grade 1 Classroom Security Intruder Function Mortise Lockset
Deadbolt Throw (in):
Not Applicable
Specifications Bullet 5:
2-3/4" Backset
Keyway:
LA Keyway
Strike Dimensions:
1-1/4" x 4-7/8"
Specifications Bullet 2:
L Lever
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 7:
2-3/8" Projection
Product Warranty:
10 Year Warranty
Interior/Exterior:
Interior/Exterior
Latch Dimensions:
1-1/4" x 8"
Selling Quantity:
1
UOM:
1
Cylinder Type:
Mortise Conventional
Door Handing:
Non-handed
Minimum Door Thickness (in):
1-3/4"
Can Be Keyed:
Yes
Pocket Depth (in):
6-5/8" x 4-1/2"
Series:
8200 Line Lever Mortise Locks
Specifications Bullet 3:
Mortise Conventional LA Keyway
Rose/Escutcheon Design:
LN
Rose/Escutcheon:
Rose
Lever/Knob/Pull Design:
L
Specifications Bullet 9:
3/4" Dead Latch
ADA:
Yes
Strike Number:
82-0110
Uid:
SAR1008238LNL26D
Url Title:
8238-lnl-26d
Title:
8238 LNL 26D Sargent Manufacturing Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-16T05:13:38+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1370
Popularity:
9
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
