Descriptions

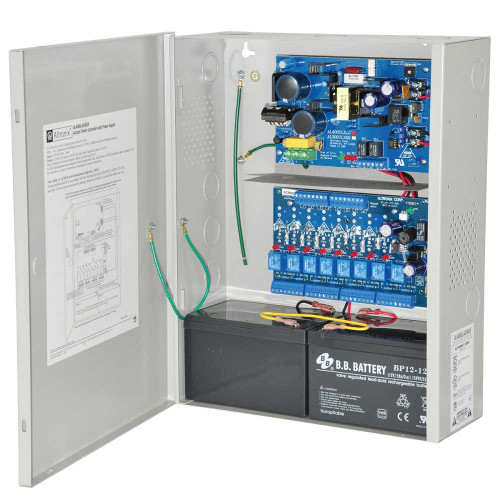

Altronix AL400ULACM converts a 115VAC 60Hz input into eight independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 4A. @ 12VDC or 3A. @ 24VDC continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs.
| Type | Title | URL |
|---|---|---|
| catalog | 2020 Altronix Product Guide | https://dvwi9lnoau63q.cloudfront.net/altronix/catalogs/ALT_productguide_2020.pdf |
| Altronix Featured IP & Power Products | https://dvwi9lnoau63q.cloudfront.net/altronix/catalogs/ipro_brochure.pdf | |
| Altronix NetWay Spectrum Series Catalog | https://dvwi9lnoau63q.cloudfront.net/altronix/catalogs/spectrum_brochure.pdf | |
| instructions | AL175UL Instructions | https://dvwi9lnoau63q.cloudfront.net/altronix/instructions/ALT_instructions_AL175UL.pdf |
| AL175ULX Instructions | https://dvwi9lnoau63q.cloudfront.net/altronix/instructions/ALT_instructions_AL175ULX.pdf |
