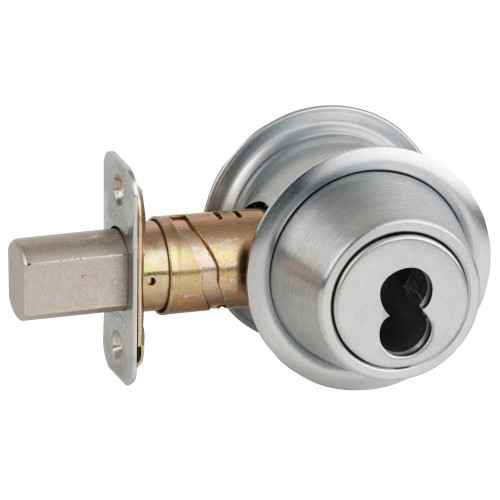

Schlage B562B 626 Grade 3 Double Cylinder Deadbolt SFIC Prep Less Core Adjustable 2-3/8 and 2-3/4 Backset Satin Chrome Finish

Schlage

Write a Review
SKU:
B562B 626
$173.31
UPC:
840067635292
$173.31

Descriptions

The B500 Series deadbolt from Schlage offers some of the toughest, most versatile Grade 2 deadbolts in the business. Designed by locksmiths for locksmiths, B500 Series can accept every Schlage cylinder format and fit virtually every door you service. It features enhanced lock strength on the jamb side of the door and is offered in most functions with optional single- or dual-sided lock status indicator trim options. Large window size and Schlage’s patented 180-degree visibility will change forever the way you look at deadbolts.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
data-sheetsB500 Series Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/B500_Series_Data_Sheet.pdf
installation-instructionsB500 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/B500_Series_Installation_Instructions.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
Schlage B Series Indicator Pricing Addendumhttps://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/B_Series_Indicator_Trim_Price_Book_Addendum_030124.pdf
service-manualSchlage B Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/manuals/Schlage_B_Series_Service_Manual.pdf
templateB560, 61, 62, 63 Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/B560_-_61-62-63_Template.pdf
B571 Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/B571_Template.pdf

Specifications

Brand:
Schlage
Series:
B500 Series Deadbolts
Manufacturer:
Schlage
Backset (in):
2-3/8 - 2-3/4"
Bore Hole Diameter (in):
2-1/8"
Box Depth (in):
6"
Parent Manufacturer:
Allegion
Base Material:
Brass Bronze
Box Height (in):
3"
Box Weight (lbs):
1.5 lbs
Box Width (in):
4-3/10"
Door Range (Thickness):
1-5/8" - 2"
Door Handing:
Non-handed
Finish:
626/US26D
Electronic:
No
Can Be Keyed:
Yes
Commercial Residential:
Commercial
Certification:
ANSI A156.36-2010, Grade 2, UL Listed
Country Of Origin:
USA
Cylinder Type:
SFIC Housing
Deadbolt Throw (in):
1"
Latch Number:
12-288
Latch Dimensions:
1" x 2-1/4"
Includes Cylinder(s)?:
No
Function:
Double Cylinder
Grade:
Grade 3
Keyway:
Less Core
Finish Description:
Satin Chrome
Interior/Exterior:
Interior/Exterior
Latch Bore Diameter (in):
1"
Latch Description:
Square Corner
Specifications Bullet 1:
Grade 2 Double Cylinder Deadbolt
Specifications Bullet 5:
For Doors 1-5/8" - 2" Thick
Specifications Bullet 4:
1-1/8" x 2-3/4" Rectangle Strike
Specifications Bullet 8:
2-1/8" Bore Hole Diameter
Specifications Bullet 7:
1" x 2-1/4" Latch Dimension
Specifications Bullet 6:
1" Deadbolt Throw
Specifications Bullet 9:
ANSI A156.36-2010, Grade 2, UL Listed
Specifications Bullet 2:
SFIC Housing Less Core
Latch Throw (in):
1"
Specifications Bullet 3:
2-3/8 - 2-3/4" Backset
Number of Keys:
2
Strike Description:
Rectangle Strike
Specifications Bullet 10:
3 Year Warranty
Product Warranty:
3 Year Warranty
Selling Quantity:
1
Strike Number:
10-094
UOM:
1
Minimum Door Thickness (in):
1-5/8"
Strike Dimensions:
1-1/8" x 2-3/4"
Maximum Door Thickness (in):
2"
UPC:
840067635292
Uid:
SCH100B562BD626
Url Title:
b562bd-626
Title:
B562BD 626 Schlage Lock Deadlock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Deadbolts
Last Modified:
2023-02-28T05:35:31+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
248
Avg Lead Time:
50
Popularity:
3
Pack Weight:
2
Pack Length:
5.75
Pack Width:
4.5
Pack Height:
3
Unit Of Measure:
Each
Vendor:
Allegion

Warranty Information

3 Year Warranty
